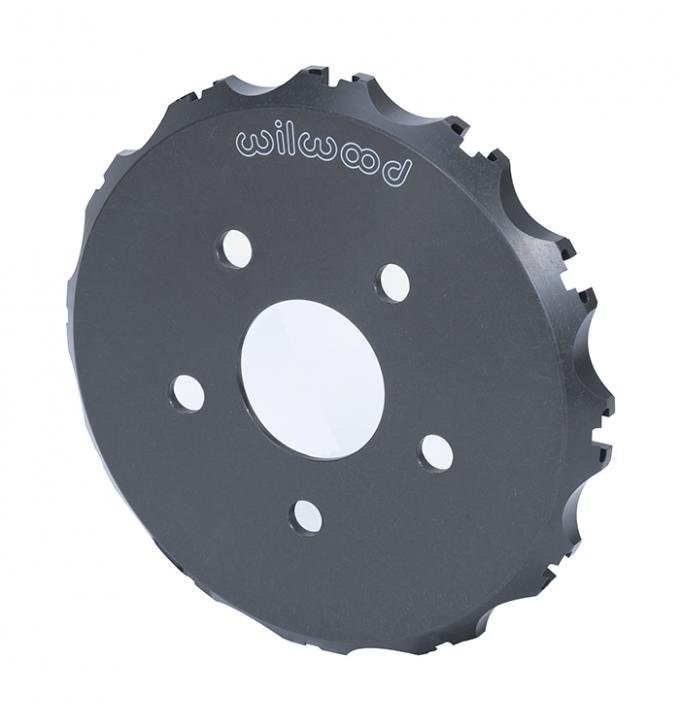

Wilwood Brakes Big Brake Dynamic Hat - Short Offset 170-14869

Wilwood Brakes Big Brake Dynamic Hat - Short Offset 170-14869
Wilwood Brakes Big Brake Dynamic Hat - Short Offset 170-14869
$370.99 ea
NEWARRIVING SOONEstimated Ship Date 12/06/2024 (If Ordered Today)46 Available from WILWOOD ENGINEERING as of 11/24/2024
Model: 3923300
STANDARD
DELIVERY
STORE PICKUP
[More Info]

GT Series Dynamic Mount Rotor Drag Hats are engineered to withstand the rigors and demands of extreme motorsports competition. Each hat is precision machined from premium grade aluminum offering high strength with low unsprung and rotating weight. Wilwood T-nuts float within the hat and provide true dynamic mounting of a standard through-hole mount rotors in 8 x 7.00" rotor mount patterns. . The wide load bearing load surface of the T-nut and the straight through-hole mount rotors provide the most durable and accurate method of isolating potential pad engagement harmonics and the in-service thermal variations that occur between the hat and the rotor.

GT Series Dynamic Mount Hats are available in a variety of configurations for use with racing hubs, flanged axles, and several OE applications. Straight bell hats are used for the 6.75" and 7.00" rotor mount patterns. Hats for the larger diameter rotor mo

About Wilwood Engineering

Wilwood Engineering designs and manufactures high-performance disc brake systems. Since the company’s inception in 1977 by Bill Wood, we have developed a substantial matrix of brake components and engineering techniques that allow us to quickly and reliably create brake systems for almost any application. Our core ability is the rapid development of custom engineered brake systems using a combination of off-the-shelf and custom components. In addition to designing and manufacturing brakes for all types of competitive motor sports, Wilwood also manufactures brake systems and components for agricultural equipment, industrial applications, utility vehicles, snowmobiles, quads, motorcycles and military vehicles.

With headquarters in Camarillo, California, Wilwood employs approximately 250 people. We have on-shelf stock of more than 300 different brake calipers, 200 rotor designs, 100 master cylinder designs and a wide assortment of brackets, fittings, valves and brake lines. Our off-shelf brake calipers range in size from tiny calipers used on go-carts and light duty industrial equipment, to heavy duty original equipment brakes for the U.S. military Humvee.

Wilwood's engineering department uses the latest computer-aided design and manufacturing techniques in conjunction with finite element analysis, dynamic test and cycle test equipment, to find high-performance and reliability solutions for the most difficult braking tasks. Our extensive inventory of proprietary on-the-shelf components allow us to provide cost-effective solutions for unique brake applications.

Wilwood is ISO 9000 compliant and has extensive experience maintaining quality levels of 100ppm or less for original equipment manufacturers.

Specifications:

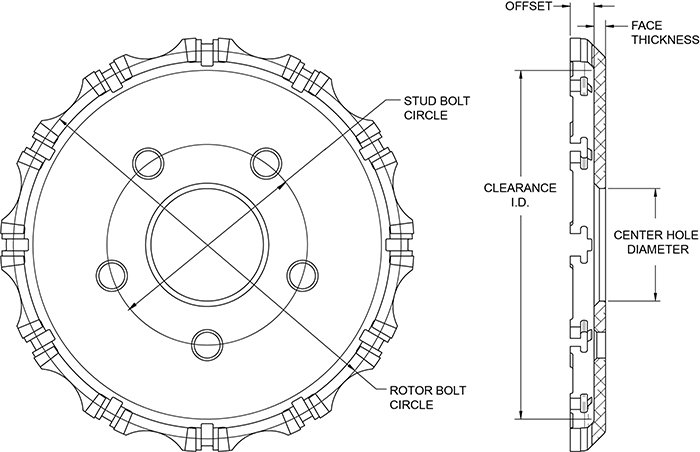

Hat Dimensions
Center Reg. (in) 2.53
Hat Offset (in) 0.540
Mount Hole Type T-Nut Slot
Rotor Bolt Circle (in) 12 x 8.75
Additional Hat Dimensions
Clearance I.D. (in) 8.01
Face Thickness (in) 0.25
Hat Stud Diamenter - BC 1 (in) 0.580
Rotor Mount Hole Size (in) T-Nut
Hat Type
Finish Type III Anodize
Material Aluminum
Mount Style Dynamic Mount
Weight (lbs) 1.900
Bolt Circle Dimensions
Hat Bolt Circle 1 5 X 4.50
