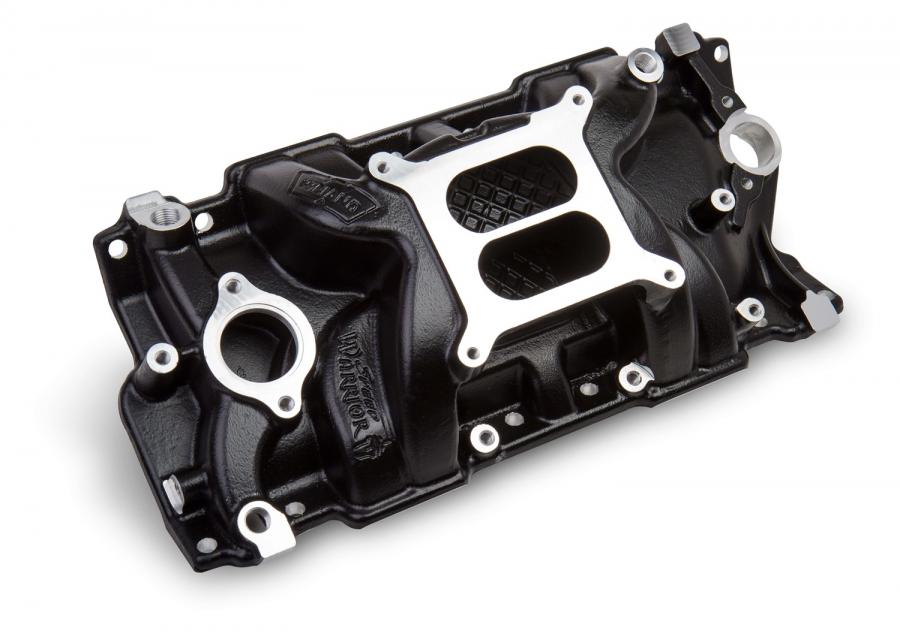

Weiand Speed Warrior Intake, Chevy Small Block V8, Black Ceramic Coated 8150BK

Weiand Speed Warrior Intake, Chevy Small Block V8, Black Ceramic Coated 8150BK
$506.99 ea
NEWARRIVING SOONEstimated Ship Date 12/09/2024 (If Ordered Today)11 Available from HOLLEY PERFORMANCE PRODUCTS as of 11/20/2024
Model: 4016563
STANDARD
DELIVERY
STORE PICKUP
[More Info]
The Weiand Speed Warrior features long, separated runners for bottom-end and mid-range power, plus a special runner design and larger plenum to flow the air needed for high-rpm horsepower. All of this usable power makes this intake perfect for your street and strip hot rod! Weiand developed the first ever aluminum intake manifold in 1937. Thirty years later Weiand developed complete blower drives for the GMC 6–71 supercharger. Today, Weiand is still at the forefront of intake manifold and blower development as well as high flow water pumps. To make more power you have to get more air to your engine. Look to Weiand as your power source!
Features:
  • Black ceramic coating provides an aggressive look to your engine compartment
  • Black ceramic is heat and corrosion resistant for long life and durability
  • Provides an easy to clean finish
  • Precision CNC machining
  • High Rise/Dual Plane Design
  • Square Bore Carburetor Flange
  • Exhaust Crossover for Improved Street Drivability (Standard Small Block Chevy Heads)
  • Power band: 1500-6700 RPM
  • Height: Front 4.19", Rear 5.27"
  • Port Size: 1.92” height, 1.16" width
Utilizes late model alternator an A/C bracket mounting provisions. Has additional vacuum tap off of runner. Recommended intake manifold gasket - Mr Gasket #'s 5821 or 101G Plenum depth: From the carb flange to the bottom of the upper plenum is 2-3/16”. To the bottom of the lower plenum is 4-1/16”.
Installation Notes:
Utilizes late model alternator an A/C bracket mounting provisions. Has additional vacuum tap off of runner. Recommended intake manifold gasket - Mr Gasket #'s 5821 or 101G Plenum depth: From the carb flange to the bottom of the upper plenum is 2-3/16”. To the bottom of the lower plenum is 4-1/16”.
About Weiand

The Weiand Company was founded by Phil Weiand as a performance parts warehouse in the 1930s and sold a variety of speed parts. The first Weiand product, the "High Weiand" manifold was manufactured and marketed in 1937. It was the first aluminum intake on the market.

In 1949 Weiand introduced a series of "tri-power" and four 2-barrel manifolds and immediately after WWII Weiand debuted a line of aluminum cylinder heads for flathead Ford engines. The famous "Drag Star" line of "log" manifolds for Hemi engines was introduced in 1952 and in 1957 Weiand developed complete blower drives for the GMC 6-71 supercharger. The first dual plane, 180º intake came from Weiand in 1965, known as the "Colt" and in 1968 Weiand introduced the "Hi-Ram Manifold" and its patented D-port technology.

The popular "X-terminator" single plane manifold series was launched in 1972 and high performance aluminum water pumps were made by Weiand the following year. "X-CELerator", a series of performance single plane intakes was developed in 1974. The first models of the famous "Team G" series of 360º racing manifolds were introduced in 1978. A year later Weiand's "Action" series of high performance replacement manifolds debuted.

Weiand became the first OE supplier of superchargers to Mercury Performance Marine in 1990, and over the next three years the "Stealth" series of high performance dual plane manifolds was designed, the "Pro-Street" supercharger was certified "emissions legal" by CARB and Weiand received the industry's first "E.O." for an intake manifold.

Weiand developed the 8-71 supercharger for Small Block and Big Block Chevy in 1996 and Weiand released the first aluminum LS-1 intake manifold in 2002. In 2005 Weiand began designing manifolds on Computational Fluid Dynamics software to deliver perfectly designed runner lengths for maximum air/fuel delivery on its newest intakes known as the Warrior line.

To make more power you have to get more air into your engine. Look to Weiand as your power source!

Downloads:

Download Name File Size
199r10393rev1.pdf217.94KB

Specifications:

Barrels 4
Construction Cast
Emission Code 3
Engine Chevrolet Small Block Gen I
Finish Black
Front Height 4.19 inch
Fuel System Type Carb
Manifold Type High Rise
Part Type Engine Intake Manifold
Product Type Intake Manifold
Rear Height 1.16 inch
RPM Power Band 1500-6700
Warranty Limited 90 Day
