Ridetech Universal HQ Series Coilover Single Adjustable - Each 24149901

HQ Series Universal Coilovers provide high performance handling, exceptional ride quality and incomparable reliability. HQ Series Universal Coilovers can be custom configured for pro-touring cars, street rods, customs pickup trucks and pro-street cars. The quality and performance are underscored by RideTech's world class technical support and a million and one mile warranty. We're here to help you choose the right coilovers for your application. Likewise, we guarantee that they'll last. HQ Series Coilovers feature 24-position rebound adjustment to to help you fine tune the shocks to your driving preferences and vehicle demands. Universal Coilovers are available in six lengths and multiple mounting configurations to adapt to nearly any application.

• Monotube gas pressure design is far superior to twin-tube.
• 24-Position Rebound Adjustment
• Exclusive 1,000,001 Mile warranty
• Impact forged aluminum body provides the best combination of strength, light weight and reliable service.
• Larger 1.834" piston significantly larger than twin tube pistons.
• Heavy duty 5/8" chromed shaft.
• Bodies are anodized for long lasting corrosion-resisten appearance.
• Double sealed rod guide with dust cover eliminates oil leakage.
• CNC machined billet aluminum adjusting hardware.
• Unique fine-threaded pinch clamp height adjuster provides easy adjustment.

Sold Individually Included Components

1- Aluminum monotube shock with threaded body 1- Upper spring seat1- Lower adjuster nut1- Upper spring seat clip1- set of 5/8”-1/2” bearing spacer kit 1- Delrin Washer set of 2

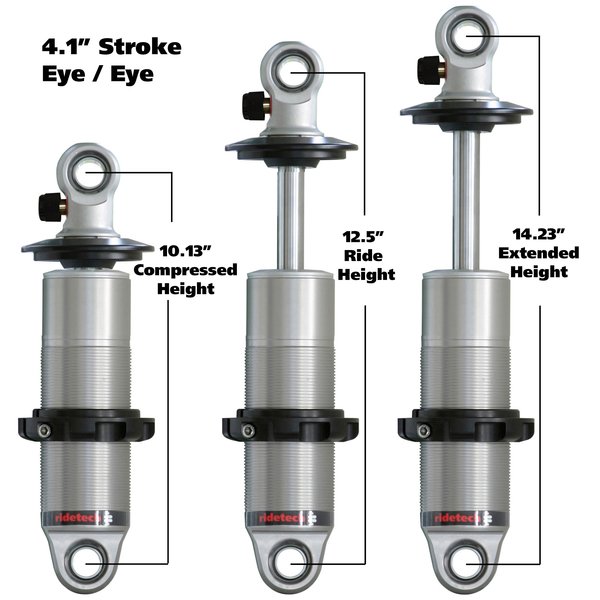

Coilover Dimensions

Shock	Mounting	Compressed	Ride	Extended	HQ Spring
Stroke	Style	Height	Height	Length	Length
2.9	Eye/Eye	8.73"	10.5"	11.63	8"
3.6	Eye/Eye	9.43"	11.5"	13.03	8"
4.1	Eye/Eye	10.13"	12.5"	14.23	10"
5.2	Eye/Eye	11.23"	14.5"	16.43	12"
6.3	Eye/Eye	12.33"	16"	18.63	14"
6.9	Eye/Eye	13.13"	17.25"	20.03	14"
2.9	Stud/Eye	9.03"	10.8"	11.93	8"
3.6	Stud/Eye	9.73"	11.8"	13.33	8"
4.1	Stud/Eye	10.63"	12.8	14.53	10"
5.2	Stud/Eye	11.53"	14.8	16.73	12"
6.3	Stud/Eye	12.63"	16.3	18.93	14"
6.9	Stud/Eye	13.43"	17.55	20.33	14"
