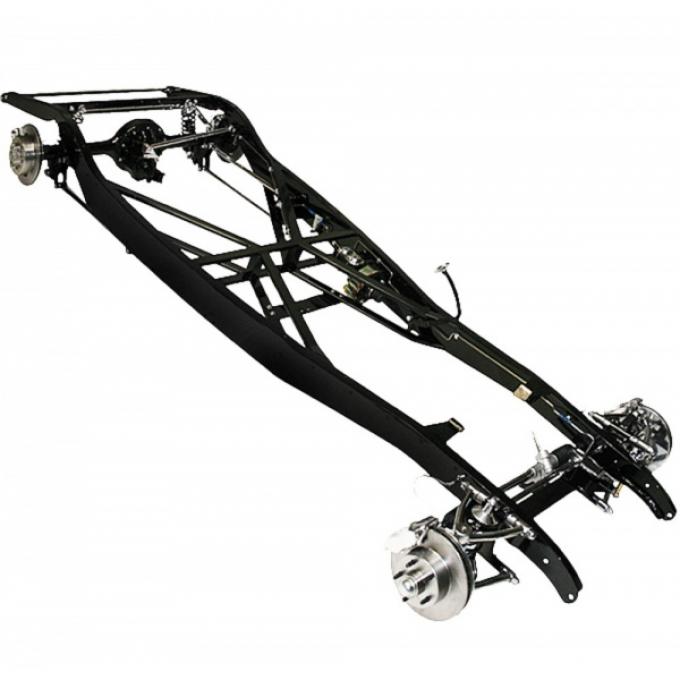

TCI Complete Chassis, Custom IFS And Four-Link Suspension, Plain Package, 1933-1934 Model B And Early V8

TCI Complete Chassis, Custom IFS And Four-Link Suspension, Plain Package, 1933-1934 Model B And Early V8
TCI Complete Chassis, Custom IFS And Four-Link Suspension, Plain Package, 1933-1934 Model B And Early V8TCI Complete Chassis, Custom IFS And Four-Link Suspension, Plain Package, 1933-1934 Model B And Early V8TCI Complete Chassis, Custom IFS And Four-Link Suspension, Plain Package, 1933-1934 Model B And Early V8
$32,327.99 ea
NEWARRIVING SOONEstimated Ship Date 12/03/2024 (If Ordered Today)
Model: 3143309
TRUCK
FREIGHT
STORE PICKUP
[More Info]

  • Small Block Engine Mounts Pre-Mounted
  • Automatic Transmission Mounts Pre-Mounted
  • Tubular A-Arms
  • 2" Drop Spindles,
  • RideTech Adjustable Coilovers
  • 1" Rear 4-Bars Supplied
  • Manual Steering Rack
  • Front And Rear Sway Bar Kits
  • Panard Bar Assembly
  • 11" Smooth/Vented Brake Rotors
  • Big-Bore Brake Calipers
  • Power Brake Pedal Assembly
  • Stainless Steel Hardlines Pre-Plumbed
  • Stainless Steel Flexlines Pre-Plumbed
  • 9" Rear Housing With Nodular Iron Case
  • 3.00, 3.25, 3.50, 3.70, 3.89, 4.11, 4.30 Or 4.56 Gear Ratio
  • 31-Spline Axles
  • 11" Drum Brakes
  • All Crossmembers & Body/Hood Latch Brackets
  • Frame Retains The Factory Profile For Easier Of Mounting The Body
  • MIG & TIG Welded For The Highest Quality
  • Limited Lifetime Manufacturer Warranty
  • Proudly Made In The U.S.A.

To build the best, start with the best! This complete chassis has been engineered for strength, safety, performance, drivability, rideability, and for both cars and trucks. TCI's 1933-1934 Ford complete chassis is made from 2" x 4" x .125 wall all-American Steel, which makes the TCI boxed frame rails far superior to the original stock Ford frame. The frame features full-length boxed rails with rectangular cross-members for added strength and rigidity. The redesigned cross-member also allows more room for exhaust system clearance. Big-bore brake calipers and large 11 inch vented brake rotors in the front provide extra stopping power and safety.

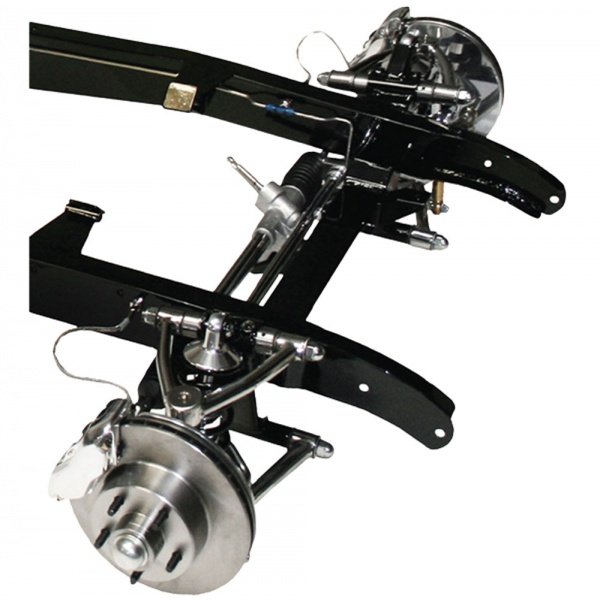

TCI's custom independent front suspension system is a no-nonsense, no-compromise performance set-up based on their own custom spindle design. The geometry is specifically engineered to maximize cornering grip, yet provide great street manners for everyday cruising. Alignment adjustments are a snap using the offset stainless steel adjusters, and the ride height can be easily modified with the billet aluminum rebound-adjustable RideTech coilovers.

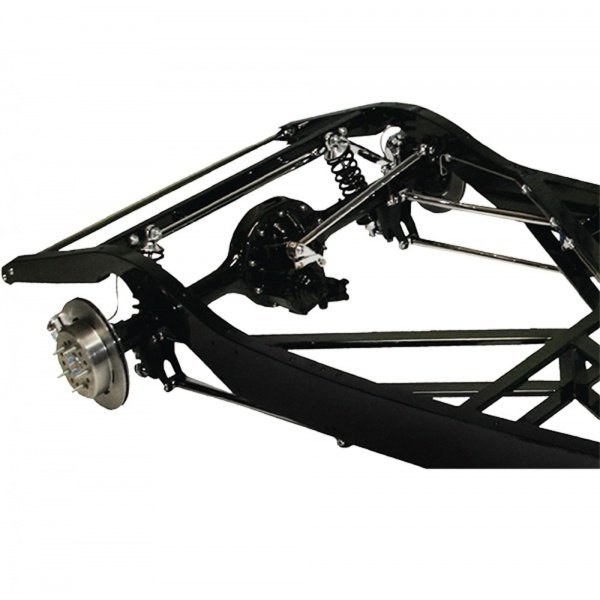

The TCI Engineering 4-Link rear suspension assembly is engineered for street and straight-line applications so you can improve both traction and cornering performance while lowering the vehicle according to your needs. Just like all TCI Engineering products, the chassis comes with a limited lifetime warranty and all parts are made in the USA! Talk about a solid foundation to build off of!

NOTE: "Show Package" displayed (powder coating is not included).
