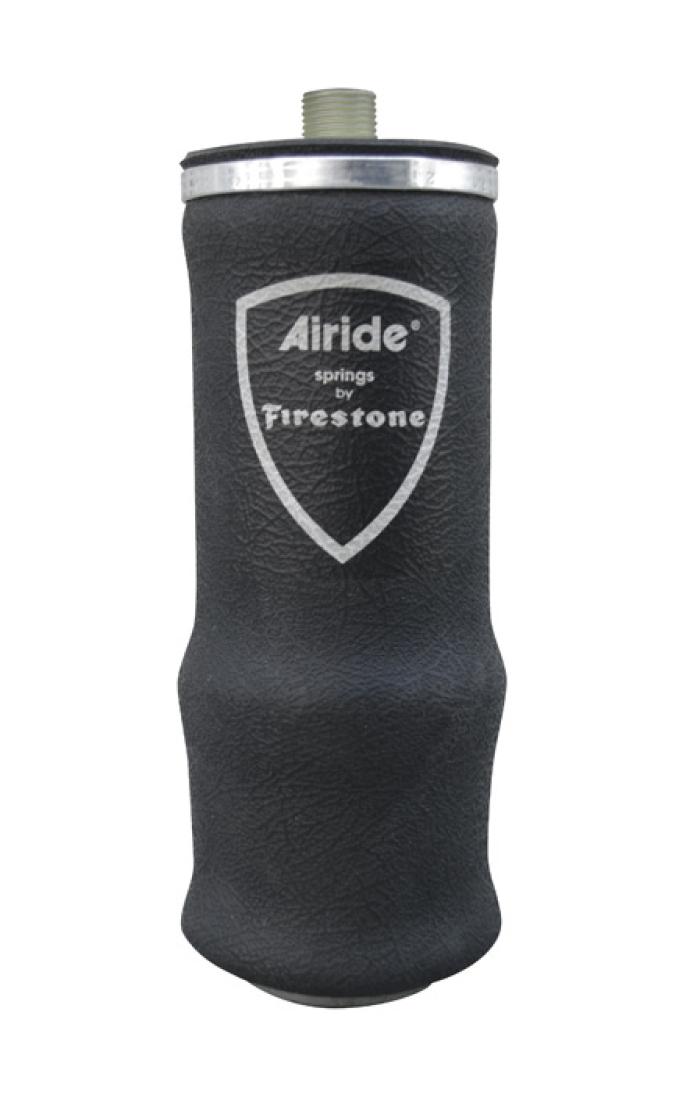

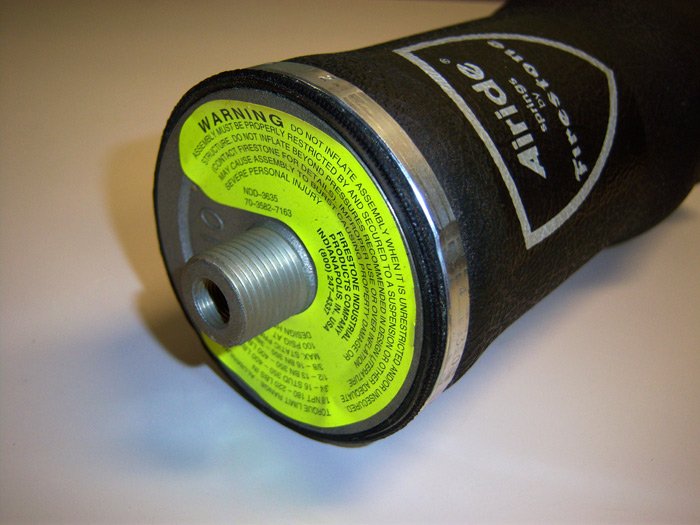

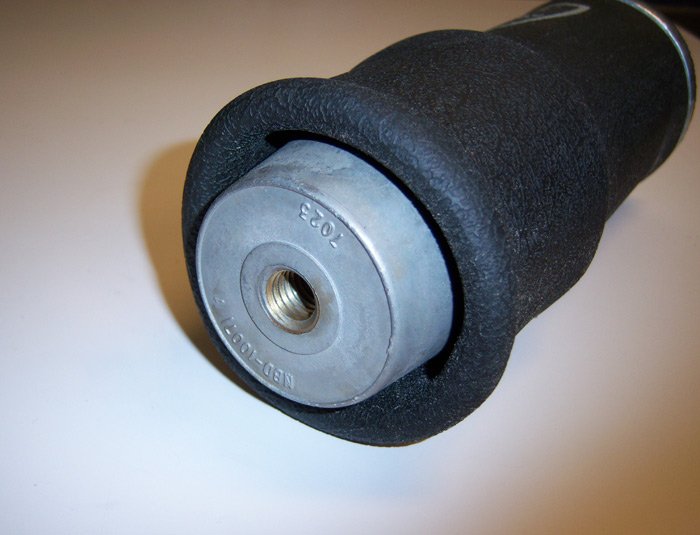

This rolling sleeve air spring is most common in our AirOverLeaf applications
It has a load capacity of 1000lbs at 100psi Minimum height: 4 in.Ride Height: 7-8 in. Max Height: 13 in.Bag Diameter: 5 in. Air Fitting Port: 1/8 in. NPTLower Bolt Hole – 1/2 in.-13
Note for all sleeve style air springs:An external bump stop and an extension stop (limiting strap or the shock absorber) MUST be used to prevent the air spring from exceeding the compressed or extended dimensions. If these dimensions are exceeded, severe damage to the air spring, and possibly the vehicle, will result.
Ridetech manufactures exciting suspension systems that improve the handling and ride quality of your muscle car, truck, Corvette or hot rod. From restorations and show cars, to high-speed autocross and track day cars, Ridetech offers a wide range of premium products including air suspension systems (air ride), coil-overs, shock absorbers, coil and leaf springs, tubular control arms, roll bars, sway bars and much more.
| Part Type | Air Suspension Spring |
| Pricing Group | Comp |
| Proposition 65 Warning | N |
| Warranty Time | 1 Months |
