Full Size Chevy 348 & 409ci 605 Power Steering Conversion Kit, 1960-1964

Full Size Chevy 348 & 409ci 605 Power Steering Conversion Kit, 1960-1964
$1,429.99 kt
$196.15 Core ChargeNEWARRIVING SOONEstimated Ship Date 01/10/2025 (If Ordered Today)
Model: 3249072
Select a Vehicle or refer to the Vehicle Fitment Tab below to verify that this part fits your vehicle.
OVERSIZE 1
STORE PICKUP
[More Info]

  • Provides A Huge Improvement Over Stock Steering-Bolt-On Installation
  • Power Steering Pump & Box Are Remanufactured
  • Includes All Parts Needed To Complete Conversion
  • For 348ci & 409ci Engines
  • Will Also Fit 1958-59 348ci Engines However Original 348 Blocks Must Be Drilled & Tapped For Power Steering Brackets
  • Some Applications Require The Addition Of 1958-62 Standard Steering Drag Link P/N 561660 Or 521418 Or 1963-64 Drag Link P/N 521424
  • This Kit Supplied With Single Groove Power Steering Pump Pulley/For Two-Groove Pulley-Ask For P/N 553071
  • Some Applications Will Also Require Double Groove Balancer Pulley P/N 563650 & 3rd Track Pulley P/N 564207
NOTE:
Additional Parts Changes Required with The 1958-1964 "605" Steering Box Conversion

  • If you have a 1958-1962 Chevy with power steering, You will need to change the center drag link to a 1958 -1962 standard steering drag link P/N 40-165406-1or
        40-245766-1.

  • If you have a 1963-1964 Chevy with power steering, You have two choices:    You will need a 1963-1964 standard steering pitman arm P/N 521071 and a standard steering drag link P/N521424 or you will need a 1958-1962 standard steering pitman arm and standard steering drag link P/N 561660 or 521418.

    •

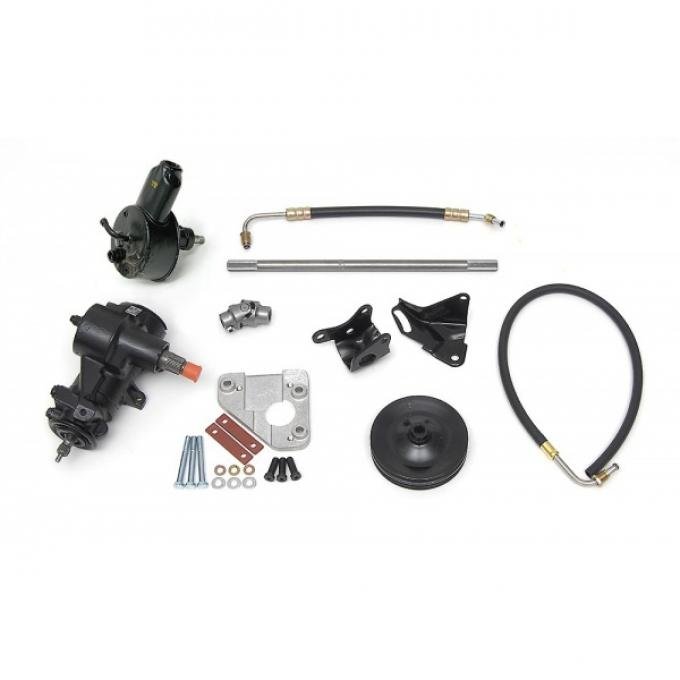

Kit Products:

Quantity Model Product Name
1 3054734 Full Size Chevy Power Steering Box, 605 Series, 1958-1964
1 3054731 Full Size Chevy 605 Style Steering Box Mounting Bracket Kit, 1958-1964
1 3054690 Full Size Chevy Power Steering Pump Bracket Set, 348 & 409ci, 1960-1964
1 2037338 Camaro Power Steering Pump, 1970-1974
1 3054666 Full Size Chevy Power Steering O-Ring Pressure Hose, 605, Small Bock Or Big Block, 1958-1972
1 3006609 Chevy Power Steering O-Ring Return Hose, 605, Delphi & CCI Rack & Pinion, Small Or Big Block, 1955-1957
1 3054841 Borgeson U-Joint Universal Steering Joint Billet 013431
1 3054842 Borgeson Universal Steering Shaft Splined 409218
1 1011355 Corvette Power Steering Pump Pulley, 1963-1974
2 1011353 63-79 Power Steering Pump Stud - 2 Required

Vehicle Fitment:

The Vehicle Fitment Guide is to be used as a general reference. The data has been provided by our suppliers and manufacturers and may contain errors or incorrect data. Always refer to a professional to verify correct fitment for your vehicle.
Make Model Years
Chevrolet Bel Air 1960 - 1964
Chevrolet Biscayne 1960 - 1964
Chevrolet Brookwood 1960
Chevrolet Impala 1960 - 1964
Chevrolet Kingswood 1960
Chevrolet Nomad 1960
Chevrolet Parkwood 1960
