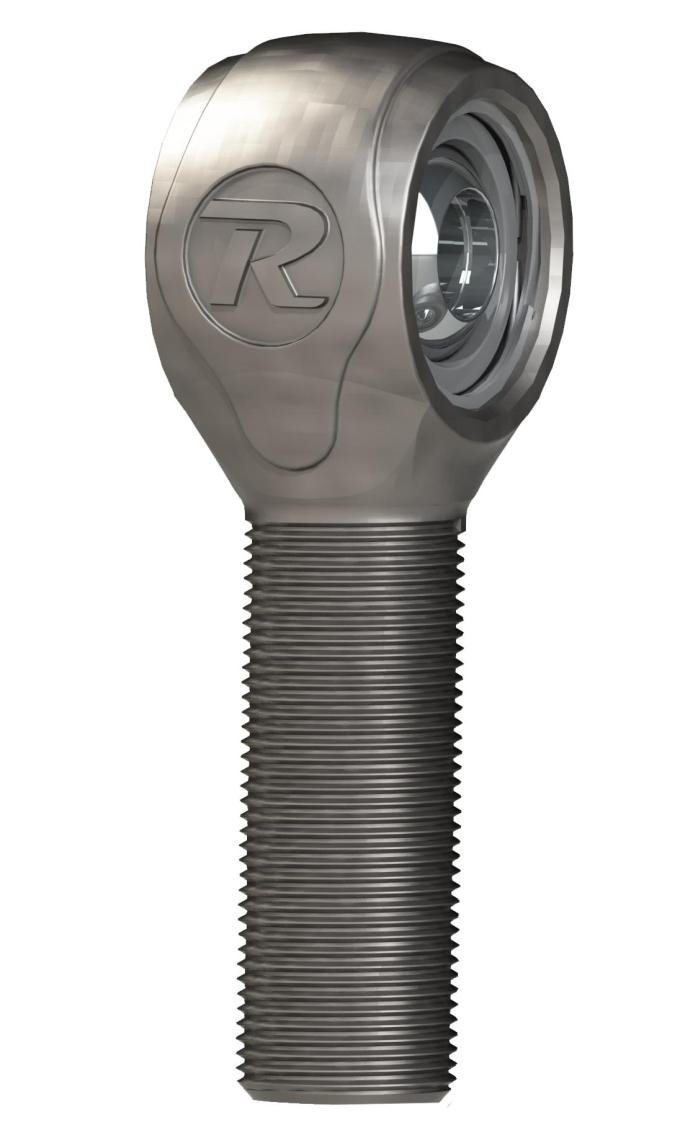

R-Joint XL rod end with 1″-14 left hand thread. Includes spacers to create 9/16″ I.D. and 2-5/8″ width. Other bolt sizes and width’s also available.
FEATURES:
R-Joints are a revolutionary rod end design that provides low friction, full range articulation, long service life, lateral stability and quiet operation.
— Articulates in 3 planes 360 degree axial rotation and 50 degrees of total lateral rotation. — 17-4 investment cast stainless steel housing with rolled threads.— Polished stainless ball and RTX10 composite cage provides consistent low friction movement.— Special RTX10 composite cage needs NO lubrication.— Self cleaning design…movement not affected by ANY water, grit, dirt, or debris.— Spring loaded closure keeps mechanism tight and rattle free for LIFE!

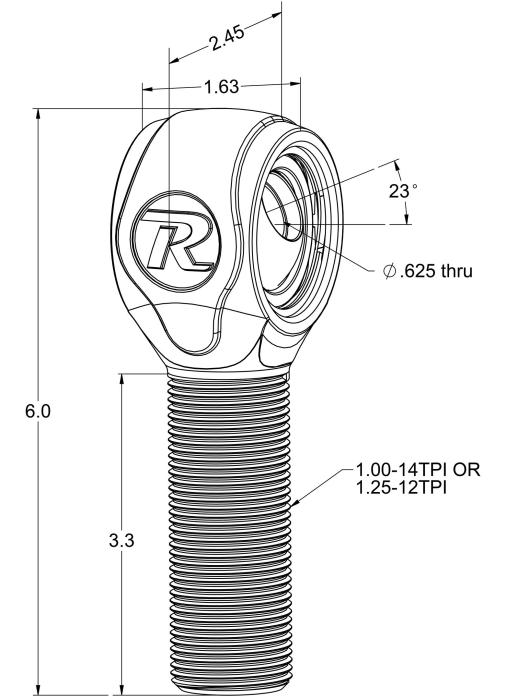

Thread Sizes: 1″-14 RHThrough Bolt Size: 9/16”Total Articulation: 50 deg
R-Joint XL housing is investment cast in the United States. The Casting then goes through a H900 Solution Anneal heat treatment to remove any crystallization. The heat treatment both increases tensile strength and ductility. All threading and machining is performed post heat treatment.
Composite Yield [starts to deform]: 17,250lbsComposite Failure: 17,750lbsHousing Yield [starts to deform]: 95,000lbsHousing Failure: 1.00 Thread: 109,850lbs 1.25 Thread: 121,765lbs
Ridetech manufactures exciting suspension systems that improve the handling and ride quality of your muscle car, truck, Corvette or hot rod. From restorations and show cars, to high-speed autocross and track day cars, Ridetech offers a wide range of premium products including air suspension systems (air ride), coil-overs, shock absorbers, coil and leaf springs, tubular control arms, roll bars, sway bars and much more.
| Part Type | Rod End |
| Pricing Group | R-Joint |
| Prop 65 Chemicals | chromium,nickel,nickel_compounds |
| Proposition 65 Warning | Y |
| Warranty Time | 1 Months |
