Quick Time Bellhousing, Chevrolet Small & Big Block RM-8024

Quick Time Bellhousing, Chevrolet Small & Big Block RM-8024
Quick Time Bellhousing, Chevrolet Small & Big Block RM-8024Quick Time Bellhousing, Chevrolet Small & Big Block RM-8024Quick Time Bellhousing, Chevrolet Small & Big Block RM-8024Quick Time Bellhousing, Chevrolet Small & Big Block RM-8024Quick Time Bellhousing, Chevrolet Small & Big Block RM-8024Quick Time Bellhousing, Chevrolet Small & Big Block RM-8024Quick Time Bellhousing, Chevrolet Small & Big Block RM-8024
$1,794.99 ea
NEWARRIVING SOONEstimated Ship Date 12/09/2024 (If Ordered Today)4 Available from HOLLEY PERFORMANCE PRODUCTS as of 11/20/2024
Model: 4953494
STANDARD
DELIVERY
STORE PICKUP
[More Info]

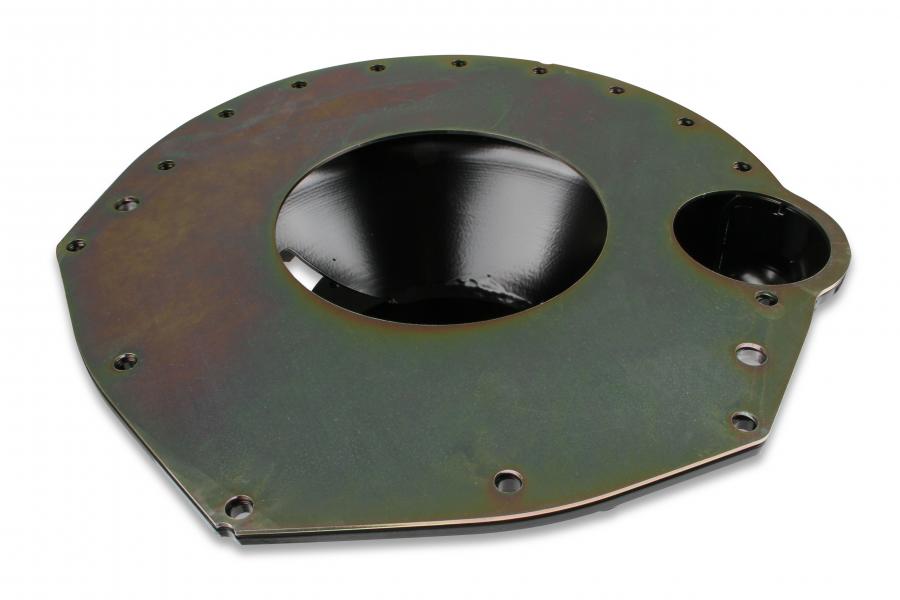

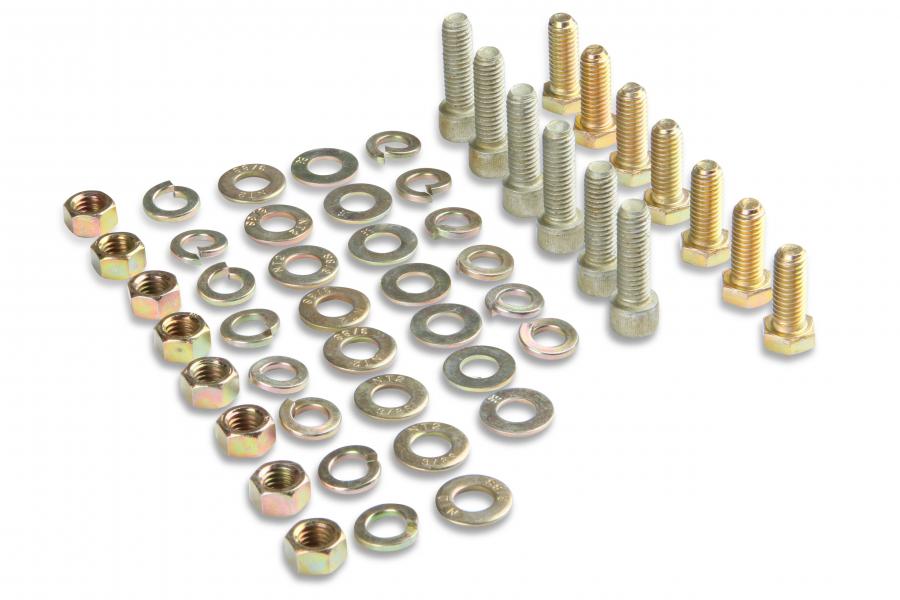

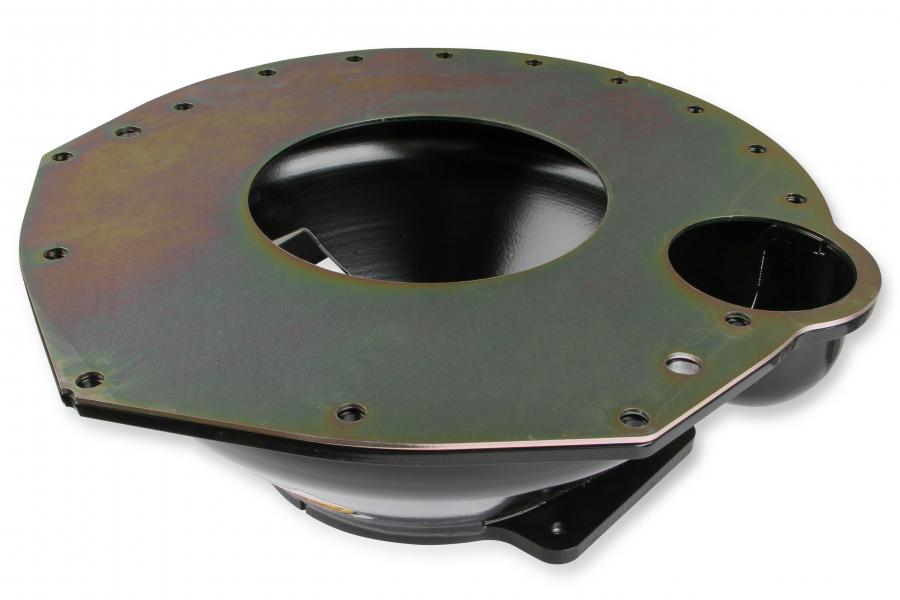

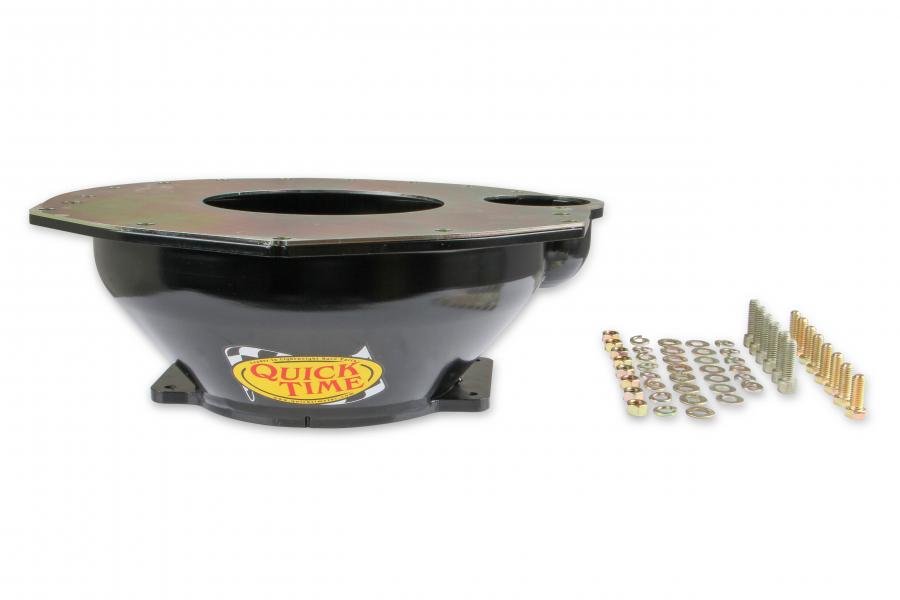

The Quick Time RM-8024 bellhousing connects small block and big block Chevy engines to GM NV-4500 transmission. This bellhousing is S.F.I. 6.1 certified which is required by many sanctioning bodies for cars running 11.49 or faster in the quarter mile. This bellhousing is a universal fit bellhousing and is not vehicle specific. Quick Time bellhousings are produced using a unique spin forming process which results in a very high strength material. This high material strength allows the Quick Time bellhousings to be light weight while maintaining the protection you desire. Note: (Transmission Mounting Bolts Not Included)
Features:
  • Patent on 16 points of Bellhousing Design & Process
  • Built from high grade steel - work hardened to over 80,000 PSI strength. Over two times the strength of typical steel bellhousings.
  • Bellhousing cone is spin formed not rolled or stamped.
  • Laser cut components are added to assemblyand CNC machined with extreme precision to provide a bellhousing that is parallel and centered to within .003 in.
  • Precision manufacturing method permits Lakewood bellhousings to be the most dimensionally stable bellhousing available,permits less drive-train wear.
  • Designed to be the lightest, strongest and most accurate bellhousing available.
  • Ideal for Drag Strip, Circle Track, and High Performance Street applications.

About Quick Time

Quick Time, the undisputed leader in bellhousing technology, was founded by former race car driver Ross McCombs, who racked up more than 50 dirt circle track feature wins. Unable to find a suitable spun bellhousing – not a weaker hydroformed bell like all the others – for his own race car, he eventually started making his own. Soon other racers, seeing him win race after race, wanted one for their cars, and a company was born. Today, Quick Time, part of Holley Performance, is the leading bellhousing manufacturer in the world, with models for more than 4,000 applications, each about half the weight of and considerably stronger than ordinary bellhousings.

Videos:

Specifications:

Certification 6.1 SFI
Clutch 10.5" or 11" Clutch Disc
Clutch Operation Mechanical
Color Black
Emission Code 5
Engine Chevrolet Small Block Gen I, Chevrolet Big Block Mark IV
Engine Make Chevrolet
Flywheel or Flexplate 168 Tooth
Height 6.825 inch
Height (in) 6.825
Make Chevrolet
Material Steel
Part Type Transmission Bell Housing
Patented yes
Product Type Bellhousing
SFI Approved Yes
SFI Certification 6.1
Trans Bore 9
Trans. Bore Diameter 9 inch
Transmission NV4500
Transmission Type Manual
Weight 22#
Weight (lb) 22
