Quick Fuel Technology XP-Series Carburetor 500CFM Circle Track Alcohol XP-4412-A

Quick Fuel Technology XP-Series Carburetor 500CFM Circle Track Alcohol XP-4412-A
Quick Fuel Technology XP-Series Carburetor 500CFM Circle Track Alcohol XP-4412-AQuick Fuel Technology XP-Series Carburetor 500CFM Circle Track Alcohol XP-4412-AQuick Fuel Technology XP-Series Carburetor 500CFM Circle Track Alcohol XP-4412-AQuick Fuel Technology XP-Series Carburetor 500CFM Circle Track Alcohol XP-4412-AQuick Fuel Technology XP-Series Carburetor 500CFM Circle Track Alcohol XP-4412-AQuick Fuel Technology XP-Series Carburetor 500CFM Circle Track Alcohol XP-4412-AQuick Fuel Technology XP-Series Carburetor 500CFM Circle Track Alcohol XP-4412-AQuick Fuel Technology XP-Series Carburetor 500CFM Circle Track Alcohol XP-4412-A
$1,193.99 ea
NEWARRIVING SOONEstimated Ship Date 12/09/2024 (If Ordered Today)9 Available from HOLLEY PERFORMANCE PRODUCTS as of 11/20/2024
Model: 4014792
STANDARD
DELIVERY
STORE PICKUP
[More Info]

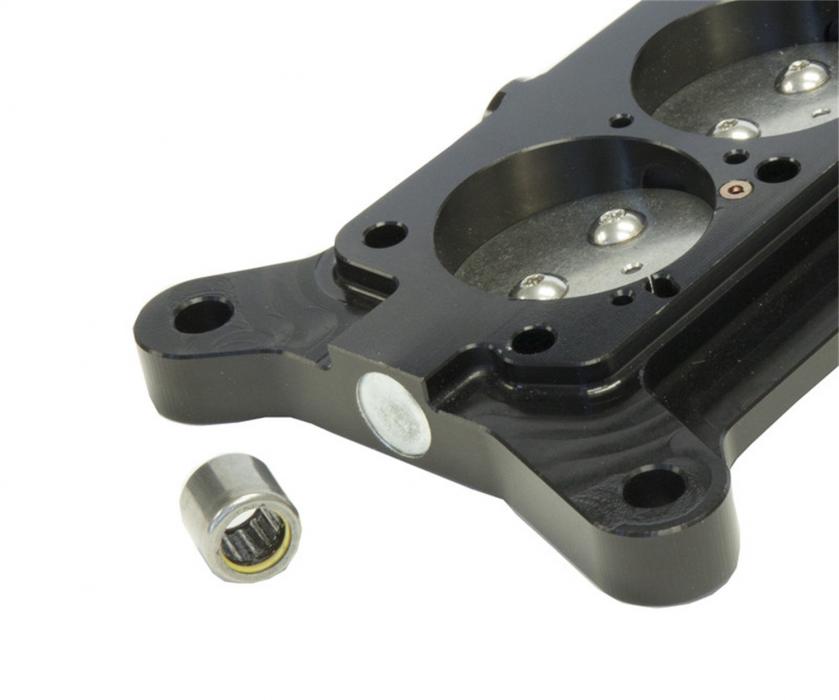

In circle track classes that mandate two-barrel carburetors, customizing a street carburetor has been the norm for decades. Not anymore. Designed from the ground up to meet the unique demands of circle track racing, QFT's new XP-Series offers the performance benefits of a custom carburetor in an affordable, turnkey, class-legal package. At a bare minimum, modifying a standard street carburetor for circle track duty typically involves changing the throttle-plates, floats, and metering blocks. These custom modifications can easily exceed the cost of a turnkey QFT two-barrel carb while still lacking many of the key features that only a clean-sheet redesign can offer. A high-flow aluminum main body design centers the venturi over the throttle-body assembly. To further increase airflow, QFT centers the air horn over the venturi, removes the choke tower, and carefully profiles the air inlet transition. The result is enhanced airflow and fuel distribution, which improves throttle-response and horsepower. All XP-Series carburetors are equipped with roller bearing seals which provide smoother throttle response, less wear on shaft, and longer life. Available in 500- and 600 cfm sizes, the XP-Series sets a new standard in two-barrel circle track carbs. •High-flow aluminum main body with centered venturi for improved performance and better air/fuel distribution •Black anodized billet 2-Circuit metering block and throttle body •Throttle body incorporates roller bearing seals which provide smoother operation, less wear on shaft, and longer life •Anti-siphon check valve in main body to reduce pump pull-over •Changeable emulsion bleeds and power valve channel restrictions for better tuning capabilities •Dual inlet fuel bowl with #8AN fittings •Dual sight glass windows for easy float adjustment •Single wedge circle track float •Exclusive Black Diamond® coating for enhanced corrosion protection and appearance. Provides a 6% reduction in fuel temperature.

About Quick Fuel Technology

“Innovators in fuel systems” is more than just a by-line. Quick Fuel Technology, since it’s inception in 1998, has grown exponentially culminating into the benchmark by which performance carburetors are measured.

The growth and success of Quick Fuel Technology is attributed to the strength and determination of its staff. All of the innovations you see on this website are the product of a team that is both experienced and involved in motorsports. We continue to develop new products so that we can stay on the forefront of innovation. Over the years, Quick Fuel Technology has made considerable strides to become a stand-alone carburetor manufacturer. This increase in efficiency and capability has allowed us to continuously upgrade our products while keeping the prices low.

In 2005, Quick Fuel Technology introduced its Super Street line of carburetors. This application-specific line catered to the enthusiast that wanted the best carburetor for the money while refusing to compromise street manners. Drawing from our race track experience we employed many features that were normally found on much pricier race carburetors, yet ours is generally half the price!

In 2009, Quick Fuel Technology launched the QFX-Series. This design incorporates significant race engineered main body upgrades. Each carburetor is individually hand-assembled and engine tested. There simply is not a better carburetor for your money.

2010 saw the introduction of two new carburetor series from QFT -

The RaceQ is the ultimate small flange drag race carburetor and packed with features that are sure to take your package to the next level. The Hot Rod series carburetor is our answer to the needs of street machines everywhere - from muscle cars to street rods, the HR Series is the most affordable and tunable carburetor on the market today.

Keeping true to our motto, we look to the future and constantly seek the next innovation. With our past experience and race-track development we continue our pursuit of horsepower and efficiency.

Videos:

Specifications:

Barrels 2
Billet Color Black
Booster Down Leg
Booster Type Down Leg
Carburetor Use Professional Race
CFM 500
Choke None
Circuit 2
Condition NEW
Emission Code 3
Finish Black
Fuel Methanol
Fuel System Carbureted
Fuel Type Alcohol
High Speed Air Bleed 28
Idle Air Bleed Size 55
Marine Use No
Material Aluminum
Model XP-Series
Part Type Carburetor
Primary Main Jet 128
Primary Power Valve 45
Primary Pump Nozzle Size 55
Product Type Carburetor
Proposition 65 www.P65Warnings.ca.gov
Secondaries None
Secondary Main Jet N/A
Supercharged Application No
Throttle Bore 1-11/16 inch
Warranty Limited 90 Day
