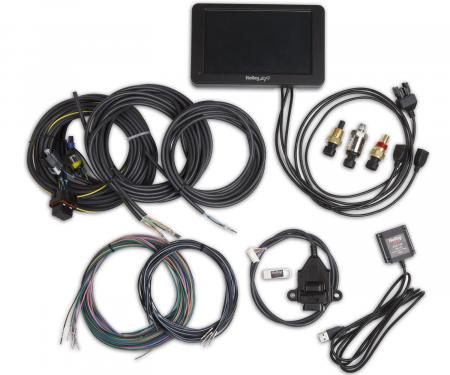

Holley EFI 7" Digital Dash 553-106

Holley EFI 7" Digital Dash 553-106
Holley EFI 7" Digital Dash 553-106Holley EFI 7" Digital Dash 553-106Holley EFI 7" Digital Dash 553-106Holley EFI 7" Digital Dash 553-106
$1,588.99 ea
NEWARRIVING SOONEstimated Ship Date 12/10/2024 (If Ordered Today)100 Available from HOLLEY PERFORMANCE PRODUCTS as of 11/22/2024
Model: 4007606
STANDARD
DELIVERY
STORE PICKUP
[More Info]
The Holley EFI 7" Digital Dash is completely customizable with a variety of gauge and indicator screens that can be programmed to display any parameter you need. The dash also offers a virtual switch panel, user-defined alarms, configurable shift lights, and can control on-screen playback of your EFI data logs. The Holley EFI Digital Dash measures 7.5" wide, 4.625" tall, and 1" deep which makes it a compact, customizable dash for use in a variety of motorsports applications. The Dash features a 7" low glare, high brightness, high contrast, full-color touch screen for easy viewing even in full sun, plug and plays connection to all Holley EFI systems as well as a weather proof aluminum housing featuring flexible mounting options. Monitor the power of your Holley EFI system at a glance!
Features:
  • Plug and play connection to all Holley EFI systems via CAN bus
  • Compact, customizable 7" dash for use in a variety of motorsports applications
  • 7" low glare, high brightness, high contrast, full color touch screen for easy viewing even in full sun
  • 800x480 resolution with auto brightness
  • Operating voltage min 8V - 20V
  • Weather proof aluminum housing featuring flexible mounting options
  • Completely customizable display of all EFI parameters including every user configurable input and output available
  • Multiple gauge and indicator types with limitless customization options
  • Quickly toggle between multiple active screens (tune, warm-up, race, drive, etc.)
  • Virtual Switch Panel (replaces the need for physical switches)
  • User defined alarms for any input
  • Configurable progressive shift lights and light bar
  • Control and on screen playback of EFI data logs
  • Download and save Holley EFI data logs to external USB memory stick
  • Expandable internal storage on micro SD card
  • Support for future USB devices
  • Upgradable with future software enhancements
  • Optional harness available to add physical inputs and outputs to the dash that can be used to perform multiple operations
  • Integrated 3 Axis Accelerometer

Software and firmware updates can be downloaded here for free. Tuning is not supported with Terminator X ECU's. A waterproof enclosure is recommended for installations that will be exposed to direct moisture, or water spray. The housing does have an O-ring gasket to prevent damage in the event of accidental or periodic exposure to water.
Installation Notes:
Tuning is not supported with Terminator X ECU's. Not compatible with Sniper 2.

About Holley Performance Products

Holley has been the undisputed leader in fuel systems for over 100 years. Holley carburetors powered every Monster Energy NASCAR Cup team and nearly every NHRA Pro-Stock champion for four decades. Now, Holley EFI products power these cars and are dominating the performance world. Holley products for GM's popular LS engine are dominating the LS scene as well. Holley's products also include performance fuel pumps, intake manifolds and engine dress-up products for street performance, race and marine applications. As a single solution or partnered with products from other Holley companies we can give you the edge you need over the competition!

Downloads:

Download Name File Size
199r10746rev1.pdf4.68MB
199r10746t__mounting_template_actual_size.pdf416.48KB
199r10843rev1.pdf1.06MB

Videos:

Specifications:

Depth 1"
Emission Code 5
Height 4.625"
Part Type Electronic Multi Purpose Gauge
Product Type 7" Digital Dash
Proposition 65 www.P65Warnings.ca.gov
Screen Size 7" Diagonal
Screen Type Resistive Touch Screen
Width 7.5"
