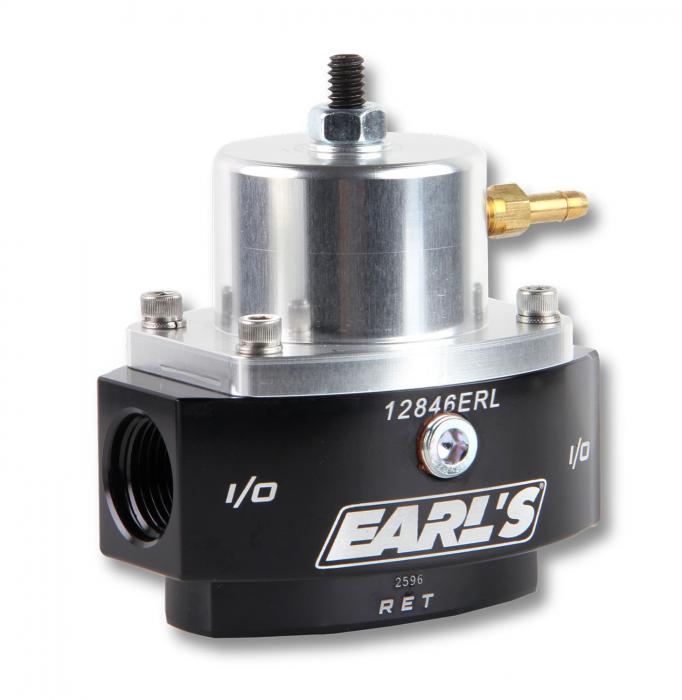

Earl's HP Billet EFI by-Pass Fuel Pressure Regulator 12846ERL

Earl's HP Billet EFI by-Pass Fuel Pressure Regulator 12846ERL
Earl's HP Billet EFI by-Pass Fuel Pressure Regulator 12846ERL
$369.99 ea
NEWARRIVING SOONEstimated Ship Date 05/08/2025 (If Ordered Today)6 Available from HOLLEY PERFORMANCE PRODUCTS as of 04/19/2025
Model: 4000204
STANDARD
DELIVERY
STORE PICKUP
[More Info]
Earl's® Billet Fuel Pressure Regulators are part of a complete line of fuel system products from Holley®. They are precision machined from 6061-T6 billet aluminum for strength and durability. They feature a black bright dip anodized body and a clear bright dip anodized top for corrosion resistance and good looks. The Earl's 12846ERL fuel pressure regulator features (1) -8 AN O-ring inlet, (1) -8 AN O-ring outlet, (1) -6 AN O-ring return.
Features:
  • Adjustable from 15-65 psi for precise fuel pressure adjustments
  • Constructed of billet aluminum with a black anodized base and clear anodize top for good looks
  • Used in systems with a return line back to tank
  • Includes fitting for manifold reference
  • Use with electric pumps only
  • (1) -8 an o-ring inlet, (1) -8 an o-ring outlet, (1) -6 an o-ring return
  • 1/8" NPT gauge port
  • Designed for use with the Earl's® in-line fuel pumps or other high pressure electric pumps where return line is needed

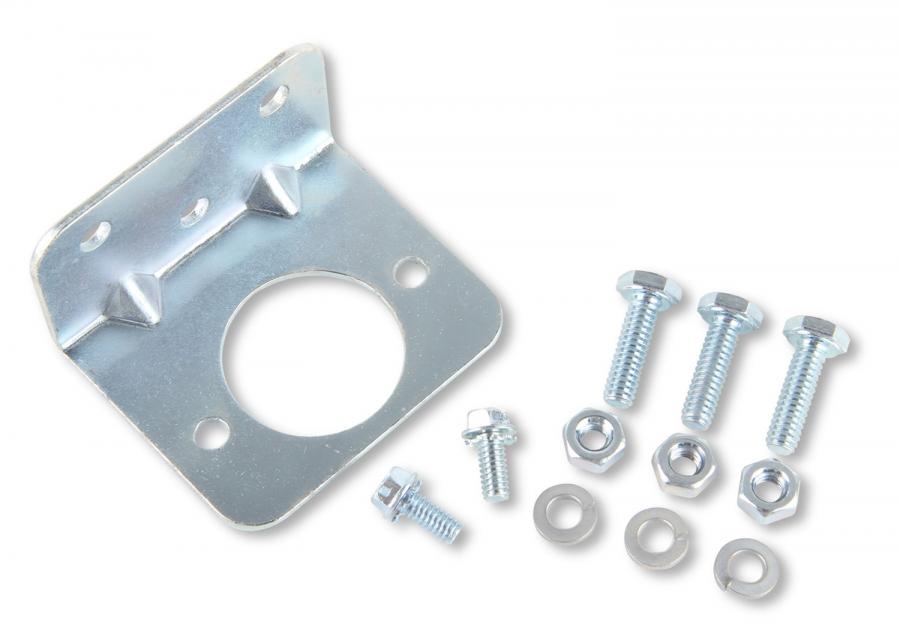

  • Mounting bracket included
About Earl's Performance

Earl's Performance Products was founded by Earl Fouts in 1955 in Lawndale, California. The mission was to supply high-quality military aircraft surplus plumbing components directly to the racing industry from a small retail outlet. As the military surplus market dried up, Earl recognized the need for continuity of supply for the racing market and pioneered the Earl's range of hoses and fittings that are still used today. In doing so he created the racing aftermarket plumbing industry.

Downloads:

Download Name File Size
holleyfuelsystems_chart1.pdf360.32KB
199r11110.pdf464.7KB

Videos:

Specifications:

Color Black Anodized
Emission Code 5
Fuel System EFI
Fuel Type Gasoline
Inlet Size 8 AN O-Ring
Material Aluminum
Outlet Size 8 AN O-Ring
Part Type Fuel Injection Pressure Regulator
Pressure Range 15-65 PSI
Product Type Fuel Pressure Regulator
Proposition 65 www.P65Warnings.ca.gov
Return Size 6 AN O-Ring
Style Bypass
Warranty Limited 90 Day
