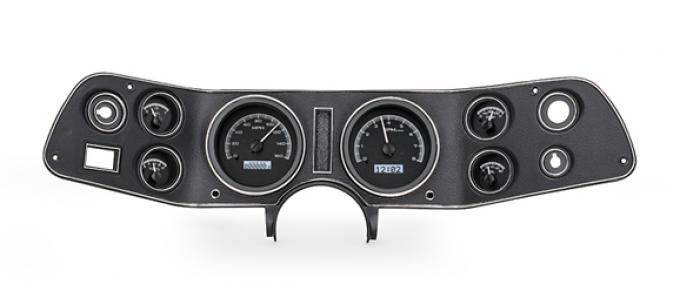

The second generation took the Camaro to new heights; take yours even higher with a direct-fit, full-function instrument system that uses a stock or reproduction bezel (available separately). A simple bolt-in for all 1970-81 Camaros, you’ll enjoy modern technology with a classic look. Does not fit Firebird.
Fully lit needles, backlit faces, and highly visible LCD message centers are a few of the things that you can see which set the VHX Series apart from yesterday’s traditional approach to instrumentation. A few of the features which you don’t normally see are the micro-controlled precision stepper motors, solid state sensors for unparalleled accuracy, and user-customizable display feedback, all supported by an unrivaled limited lifetime warranty which has become the standard for Dakota Digital instrumentation systems. Completely engineered and manufactured at our facility in Sioux Falls, South Dakota, the VHX Series has completely revolutionized the instrumentation industry!
The system comes with rear housing for dash gauges and fits into stock or reproduction instrument housing/ bezel (not included).
|
Analog Gauges |
|
|
| Speedometer |
| ·0 -160 MPH (optional metric version 0- 255 kmh) |
|
|
| Tachometer |
| ·0- 8,000 RPM |
|
|
| Oil Pressure |
| ·0- 80 psi |
|
|
| Water Temperature |
| ·100- 260ºF (optional metric version 40- 120ºC) |
|
|
| Fuel Level |
| ·E, 1/4, 1/2, 3/4, F |
|
|
| Voltmeter |
| ·9- 17 VDC |
|
|
| Lighting |
| ·Back lit technology is popular with performance instrumentation due to precise lighting allowing you see what is truly important when you really need it at a quick glance. Each number, tick mark, annunciator, needle, indicator and digital message center is lit by a series of LEDs behind the gauge face. |
|
|
|
Digital Message Centers |
|
|
| Standard Displays |
| ·Odometer (One time user settable, Million Mile) |
| ·Dual (A/B) Trip Meter (0- 9,999.9) |
| ·Clock (12 hour) |
|
|
| Performance Meters |
| ·0- 60 MPH Timer (0- 100 kmh) |
| ·1/4 mile time |
| ·1/4 mile end speed (trap speed) |
| ·High speed recall |
| ·High RPM recall |
|
|
| Gauges |
| ·Speedometer (0- 255 MPH/kmh) |
| ·Tachometer (0- 9,900 RPM) |
| ·Oil Pressure (0-100 psi displayed in 1 psi increments) |
| ·Water Temperature (100- 300ºF/ 40- 150ºC displayed in 1 ºF/ºC increments) |
| ·Voltmeter (9- 17 VDC) |
| ·Fuel Level (0-99% full) |
|
|
| Lighting |
| ·Auto-contrasting LCD display for optimal view in the brightest of sunlight. |
| ·LED backlit at night to match/ complete the look at night. |
|
|
|
Built-in Indicators |
| Indicators |
| ·Turn Signals (Left/ Right) |
| ·High Beam |
| ·Check Engine |
| ·Parking Brake |
| ·Cruise Control (On/ On & Engaged when vehicle is equipped) |
| ·Gear Position (Optional GSS-3000 sensor required) |
| ·4 x 4 (When vehicle is equipped) |
| ·Wait to Start (When vehicle is equipped) |
**Not all OEM indicator lamp functions will be replaced.
|
| Make | Model | Years |
| Chevrolet | Camaro | 1970 - 1981 |
