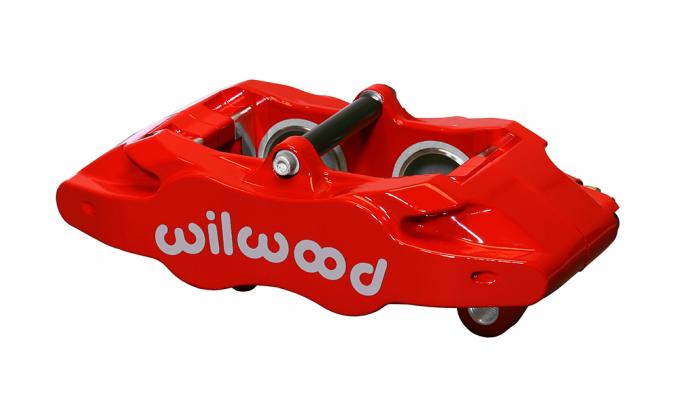

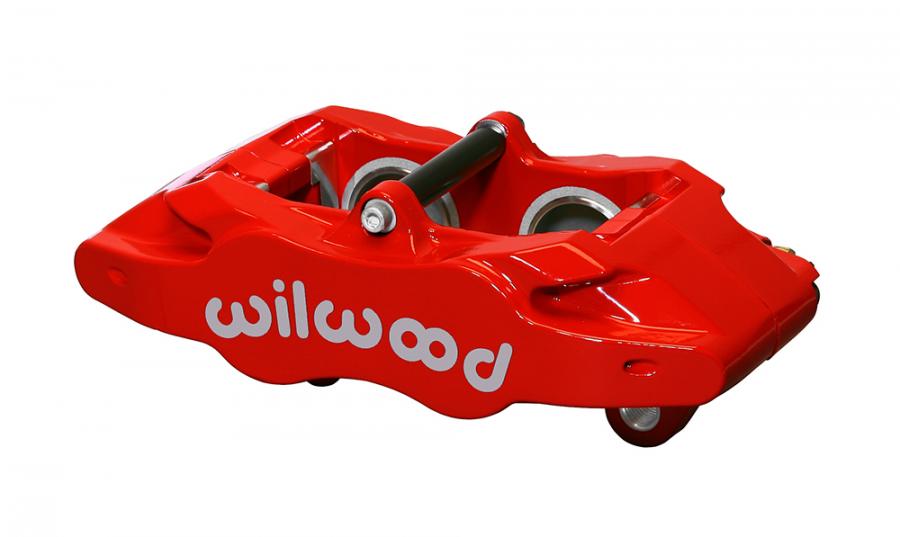

SLC56 front calipers are engineered as a high performance street and custom replacement for Corvettes and hot rods using Corvette suspension. SLC56 calipers add high-tech styling and provide the positive response and balanced pad loading provided by a fixed mount, four piston caliper. The SLC56 is a direct bolt-on replacement for the OE calipers on all models of the C5 from 1997 to 2004, and all base model C6’s from 2005 to 2013 using 12.8” diameter front rotors. The calipers attach directly to the Corvette spindle without the need for brackets or adapters and accept all types of OE banjo bolt style brake hoses.
Using modern computer modeling and design technology, the SLC56 is based on the top performing Superlite caliper series. These calipers feature an ultra-high strength forged aluminum body, stainless steel pistons, internal piston damping springs, internal bore seals, stainless steel bridge wear plates, and a single screw bleed system. All SLC56 calipers accept the same type 7416 16mm thick brake pads as used in all narrow profile Superlite series calipers.
The piston volume of the SLC56 is matched to the piston volume found in the OE calipers. This makes it fully compatible with the output of the OE master cylinder and the ABS system. Front to rear brake bias and pedal travel remain as stock. For custom hot rod builds, this caliper volume is also easily matched to other styles of manual or power brake pedals with proper master cylinder sizing.
Additional Notes
SLC56 calipers are externally finished with a high gloss red or black protective powder coating process that is both brake fluid and heat resistant. Internally, all surfaces and passages are anodized to provide additional corrosion resistance with a durable wear surface for stainless pistons inside. SLC56 calipers will maintain their stylish good looks and rugged durability for many miles to come. NOTE: SLC56 caliper kits have been checked to clear Z06 model wheels. All other OE production and aftermarket wheels should be checked for proper clearance prior to installation. Wheel spacers may be required on some applications. Please refer to the wheel clearance diagram for additional information on backdrop spacing and radial clearance requirements.
About Wilwood Engineering
Wilwood Engineering designs and manufactures high-performance disc brake systems. Since the company’s inception in 1977 by Bill Wood, we have developed a substantial matrix of brake components and engineering techniques that allow us to quickly and reliably create brake systems for almost any application. Our core ability is the rapid development of custom engineered brake systems using a combination of off-the-shelf and custom components. In addition to designing and manufacturing brakes for all types of competitive motor sports, Wilwood also manufactures brake systems and components for agricultural equipment, industrial applications, utility vehicles, snowmobiles, quads, motorcycles and military vehicles.
With headquarters in Camarillo, California, Wilwood employs approximately 250 people. We have on-shelf stock of more than 300 different brake calipers, 200 rotor designs, 100 master cylinder designs and a wide assortment of brackets, fittings, valves and brake lines. Our off-shelf brake calipers range in size from tiny calipers used on go-carts and light duty industrial equipment, to heavy duty original equipment brakes for the U.S. military Humvee.
Wilwood's engineering department uses the latest computer-aided design and manufacturing techniques in conjunction with finite element analysis, dynamic test and cycle test equipment, to find high-performance and reliability solutions for the most difficult braking tasks. Our extensive inventory of proprietary on-the-shelf components allow us to provide cost-effective solutions for unique brake applications.
Wilwood is ISO 9000 compliant and has extensive experience maintaining quality levels of 100ppm or less for original equipment manufacturers.
