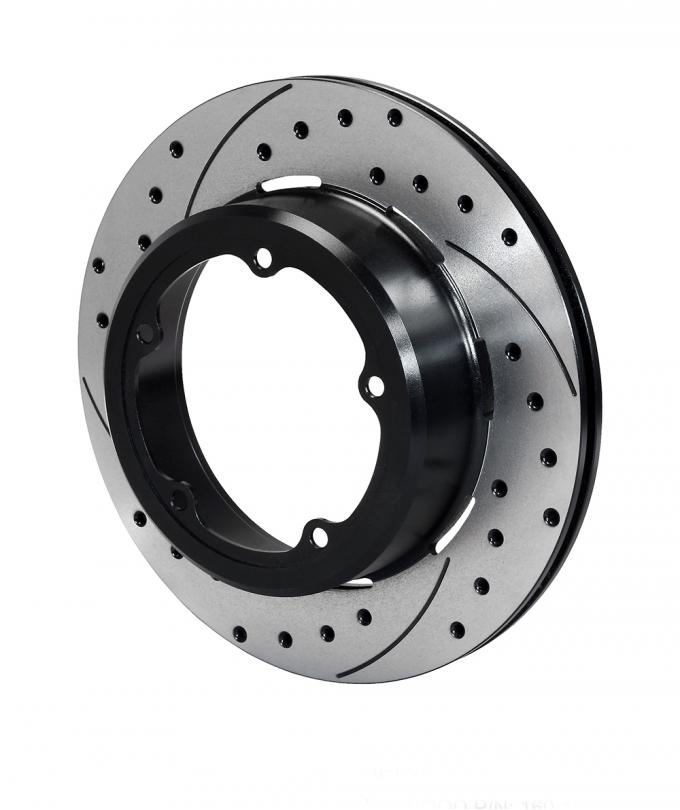

For custom, show and high performance sport driving, SRP rotors offer the high tech look and improved performance of a directional cross-drill and face slot pattern. In addition to the aesthetic appeal, the venting and cleaning action of the hole and slot pattern helps to reduce pad glaze and minimize irregular pad build-up on the rotor faces. The results are a smoother engagement feel at the pedal and consistent response from the pads. Each rotor is precision machined to less than .001 tolerance for overall flatness, parallelism, and radial run-out on long grain carbon iron castings. The rotors are finished with a black electro coat to provide corrosion resistance.
Wilwood Engineering designs and manufactures high-performance disc brake systems. Since the company’s inception in 1977 by Bill Wood, we have developed a substantial matrix of brake components and engineering techniques that allow us to quickly and reliably create brake systems for almost any application. Our core ability is the rapid development of custom engineered brake systems using a combination of off-the-shelf and custom components. In addition to designing and manufacturing brakes for all types of competitive motor sports, Wilwood also manufactures brake systems and components for agricultural equipment, industrial applications, utility vehicles, snowmobiles, quads, motorcycles and military vehicles.
With headquarters in Camarillo, California, Wilwood employs approximately 250 people. We have on-shelf stock of more than 300 different brake calipers, 200 rotor designs, 100 master cylinder designs and a wide assortment of brackets, fittings, valves and brake lines. Our off-shelf brake calipers range in size from tiny calipers used on go-carts and light duty industrial equipment, to heavy duty original equipment brakes for the U.S. military Humvee.
Wilwood's engineering department uses the latest computer-aided design and manufacturing techniques in conjunction with finite element analysis, dynamic test and cycle test equipment, to find high-performance and reliability solutions for the most difficult braking tasks. Our extensive inventory of proprietary on-the-shelf components allow us to provide cost-effective solutions for unique brake applications.
Wilwood is ISO 9000 compliant and has extensive experience maintaining quality levels of 100ppm or less for original equipment manufacturers.
| Rotor Upgrades | |
| Balanced | No |
| Bedded | No |

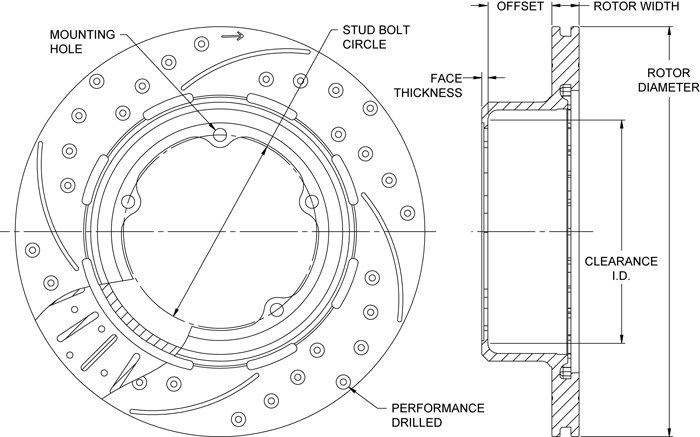

| Additional Rotor Dimensions | |
| Clearance Inside Diameter (in) | 7.16 |
| Face Thickness (in) | 0.18 |
| Far Side Inside Diameter (in) | 8.38 |
| Lug ID / Registration (in) | 5.00 |
| Offset Dimension (in) | 1.910 |
| Shoe Inside Dimension (in) | 7.24 |
| Stud Diameter (in) | 0.38 |
| Wheel Bolt Circle (in | 5 x 5.75 |
| Rotor Dimensions | |
| Diameter (in) | 12.19 |
| Mount Side | R/H |
| Width (in) | 0.81 |
| Rotor Design | |
| Material | Iron |
| Vane Count | 32 V |
| Weight(Lbs) | 14.20 |
| Rotor Style & Finish | |
| Style | SRP Drilled & Slotted |
| Surface Finish | Black Electro Coat |
| Type | SRP-BLK |
