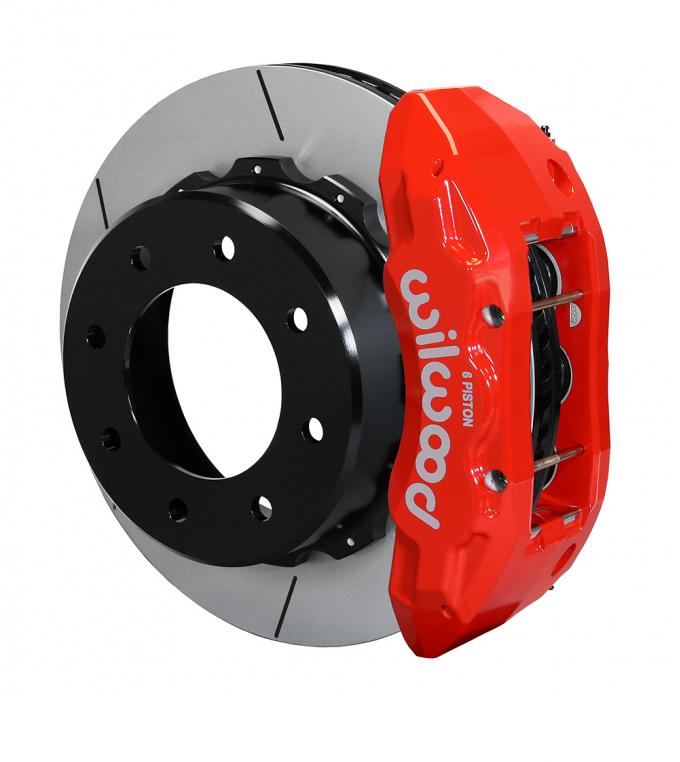

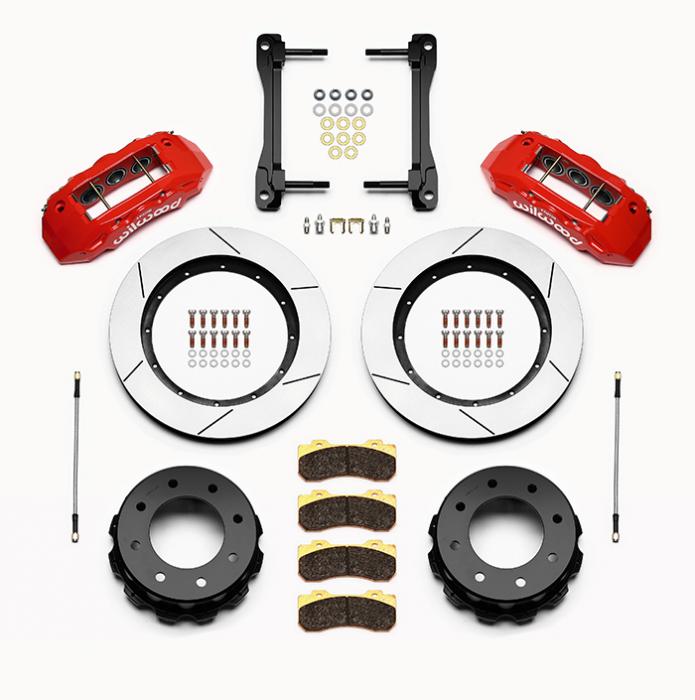

Wilwood’s Tactical Extreme TX6R Big Brake rear kits are ultimate in braking performance for Truck, SUV and Armored Vehicles. Using TX6R radial mount six-piston calipers and massive 15.00” to 16.00” GT-60 directional vane Spec-37 alloy rotors, these kits deliver consistent stopping power and extreme duty durability under sustained high heat with this ready to bolt-on kit. The calipers are volume matched for compatibility with original equipment power brake system output. TX6R rear kits replace the factory disc brakes and use the OE parking brake assembly as a compliment to front big brake upgrades. Kits include radial mount caliper brackets, and all the necessary hardware to complete the installation. Braided stainless steel flex lines will need to be purchased for some applications.
Wilwood Engineering designs and manufactures high-performance disc brake systems. Since the company’s inception in 1977 by Bill Wood, we have developed a substantial matrix of brake components and engineering techniques that allow us to quickly and reliably create brake systems for almost any application. Our core ability is the rapid development of custom engineered brake systems using a combination of off-the-shelf and custom components. In addition to designing and manufacturing brakes for all types of competitive motor sports, Wilwood also manufactures brake systems and components for agricultural equipment, industrial applications, utility vehicles, snowmobiles, quads, motorcycles and military vehicles.
With headquarters in Camarillo, California, Wilwood employs approximately 250 people. We have on-shelf stock of more than 300 different brake calipers, 200 rotor designs, 100 master cylinder designs and a wide assortment of brackets, fittings, valves and brake lines. Our off-shelf brake calipers range in size from tiny calipers used on go-carts and light duty industrial equipment, to heavy duty original equipment brakes for the U.S. military Humvee.
Wilwood's engineering department uses the latest computer-aided design and manufacturing techniques in conjunction with finite element analysis, dynamic test and cycle test equipment, to find high-performance and reliability solutions for the most difficult braking tasks. Our extensive inventory of proprietary on-the-shelf components allow us to provide cost-effective solutions for unique brake applications.
Wilwood is ISO 9000 compliant and has extensive experience maintaining quality levels of 100ppm or less for original equipment manufacturers.
| Download Name | File Size |
| ds1086.pdf | 451.8KB |
| Make | Model | Submodel | Years | Fitment Notes |
| Chevrolet | Silverado 2500 HD | 2011 - 2019 | KIT,REAR,GM 2500 HD,2011-2019,TX6R 15.50x1.38 ROTOR,RED; RTR:15.50-IN DIA, GT 60 CURVED VANE, SLOTTED; CLPR:TX6R, 6-PISTON, RED POWDER COAT Kit will work with both Iron / Steel and Aluminum spindles. |
|
| Chevrolet | Silverado 3500 HD | 2011 - 2019 | KIT,REAR,GM 2500 HD,2011-2019,TX6R 15.50x1.38 ROTOR,RED; RTR:15.50-IN DIA, GT 60 CURVED VANE, SLOTTED; CLPR:TX6R, 6-PISTON, RED POWDER COAT Kit will work with both Iron / Steel and Aluminum spindles. without Dual Rear Wheels (SRW) |
|
| Chevrolet | Suburban 3500 HD | LS | 2016 | KIT,REAR,GM 2500 HD,2011-2019,TX6R 15.50x1.38 ROTOR,RED; RTR:15.50-IN DIA, GT 60 CURVED VANE, SLOTTED; CLPR:TX6R, 6-PISTON, RED POWDER COAT Kit will work with both Iron / Steel and Aluminum spindles. |
| Chevrolet | Suburban 3500 HD | LT | 2016 | KIT,REAR,GM 2500 HD,2011-2019,TX6R 15.50x1.38 ROTOR,RED; RTR:15.50-IN DIA, GT 60 CURVED VANE, SLOTTED; CLPR:TX6R, 6-PISTON, RED POWDER COAT Kit will work with both Iron / Steel and Aluminum spindles. |
| GMC | Sierra 2500 HD | 2011 - 2019 | KIT,REAR,GM 2500 HD,2011-2019,TX6R 15.50x1.38 ROTOR,RED; RTR:15.50-IN DIA, GT 60 CURVED VANE, SLOTTED; CLPR:TX6R, 6-PISTON, RED POWDER COAT Kit will work with both Iron / Steel and Aluminum spindles. |
|
| GMC | Sierra 3500 HD | 2011 - 2019 | KIT,REAR,GM 2500 HD,2011-2019,TX6R 15.50x1.38 ROTOR,RED; RTR:15.50-IN DIA, GT 60 CURVED VANE, SLOTTED; CLPR:TX6R, 6-PISTON, RED POWDER COAT Kit will work with both Iron / Steel and Aluminum spindles. without Dual Rear Wheels (SRW) |
| Details | |
| Part Type | Disc Brake Caliper / Rotor / Pad Kit |
| Kit Summary | |
| Axle Offset | 0.00 |
| Caliper Type | 6 - Red Powder Coat |
| Min Wheel Diameter Req'd* | 20 |
| Mount Type | Radial |
| Rear End Axle | OEM |
| Rotor Diameter | 15.50 |
| Kit Components & Specs / Rotors | |
| Bedded | No |
| Design Type | GT-BLK |
| Dynamically Balanced | Yes |
| Left Hand - Part No | 160-13790-GTB |
| Material | Spec-37 Iron |
| Outside Diameter (in) | 15.50 |
| Right Hand - Part No | 160-13789-GTB |
| Style | GT Slotted |
| Surface Finish | Black Electro Coat |
| Type | GT 60 Curved Vane |
| Vane Count | 60 CV |
| Width (in) | 1.38 |
| Parts & Accessories / Caliper Parts | |
| Bleed Screw Kit | 220-0627 |
| CrossOver O-Ring Kit | 130-10540 |
| O-ring Kit | 130-14278 |
| Pad Retainer | 180-9874 |
| Replacement Piston 1 | 200-7531 |
| Replacement Piston 2 | 200-7519 |
| Replacement Piston 3 | 200-7519 |
| Wear Plate - Left Hand | 300-5922 |
| Wear Plate - Right Hand | 300-5923 |
| Kit Components & Specs / Rotor Hats | |
| Bolt Circle 1 | 8 x 7.09 |
| Finish Color | Black E-Coat |
| Hat - Part No | 170-13872 |
| Hat Offset Dimension (in) | 2.920 |
| Material | Iron |
| Stud Diameter - BC 1 | 0.640 |
| Stud Diameter - BC 2 | 0.000 |
| Stud Diameter - BC 3 | 0.000 |
| Type | Parking Brake Hat - Truck |
| Kit Components & Specs / Calipers | |
| Brake Pad Area (In²) | 12.69 |
| Brake Pad Plate | 10120 |
| Brake Pad Volume (In³) | 6.81 |
| Finish Color | Red Powder Coat |
| Left Hand - Part No | 120-13818-RD |
| Mount Type | Radial |
| Pad Compound | BP-20 |
| Piston 1 Bore (in) | 1.75 |
| Piston 2 Bore (in) | 1.62 |
| Piston 3 Bore (in) | 1.62 |
| Piston Area (In²) | 6.52 |
| Piston Count | 6 |
| Piston Type | Stainless |
| Right Hand - Part No | 120-13817-RD |
| Type | TX6R |
| Parts & Accessories / Brake Lines | |
| Front Line Kit | 220-11196 |
