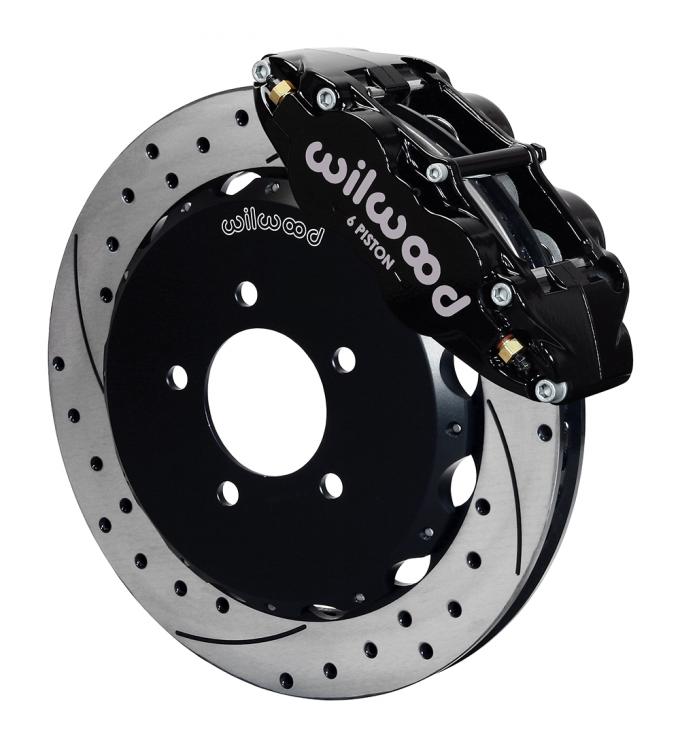

Wilwood Brakes Forged Narrow Superlite 6R Big Brake Front Brake Kit (Hat) 140-11978-D

Name: Wilwood Brakes Forged Narrow Superlite 6R Big Brake Front Brake Kit (Hat) 140-11978-D
Brand: Wilwood Engineering
SKU: 3921234
Price: 3327.99 CAD
Availability: InStock

$3,327.99 ea

NEWARRIVING SOONEstimated Ship Date 12/05/2024 (If Ordered Today)8 Available from WILWOOD ENGINEERING as of 11/21/2024

Model: 3921234

0 reviewsWrite a Review Add to Wish List

Select a Vehicle or refer to the Vehicle Fitment Tab below to verify that this part fits your vehicle.

CALL US
855.444.6872

Description Vehicle Fitment Downloads Specifications Reviews (0) Product Q&A Related Products

The unsurpassed braking capacity of the Forged Narrow Superlite 6R six-piston caliper serves as the base of this group of 13”-14” big rotor kits for these popular late model vehicles. FNSL6R kits are engineered application specific for simplified installation and full compatibility with OE master cylinder output and ABS functions where used. Big brake kits provide increased brake capacity and complimentary style with wheel, tire, and suspension upgrades on show cars and high performance street/track machines. Optional caliper finishes and rotor designs simplify personalizing the style and braking requirements of any application.

About Wilwood Engineering

Wilwood Engineering designs and manufactures high-performance disc brake systems. Since the company’s inception in 1977 by Bill Wood, we have developed a substantial matrix of brake components and engineering techniques that allow us to quickly and reliably create brake systems for almost any application. Our core ability is the rapid development of custom engineered brake systems using a combination of off-the-shelf and custom components. In addition to designing and manufacturing brakes for all types of competitive motor sports, Wilwood also manufactures brake systems and components for agricultural equipment, industrial applications, utility vehicles, snowmobiles, quads, motorcycles and military vehicles.

With headquarters in Camarillo, California, Wilwood employs approximately 250 people. We have on-shelf stock of more than 300 different brake calipers, 200 rotor designs, 100 master cylinder designs and a wide assortment of brackets, fittings, valves and brake lines. Our off-shelf brake calipers range in size from tiny calipers used on go-carts and light duty industrial equipment, to heavy duty original equipment brakes for the U.S. military Humvee.

Wilwood's engineering department uses the latest computer-aided design and manufacturing techniques in conjunction with finite element analysis, dynamic test and cycle test equipment, to find high-performance and reliability solutions for the most difficult braking tasks. Our extensive inventory of proprietary on-the-shelf components allow us to provide cost-effective solutions for unique brake applications.

Wilwood is ISO 9000 compliant and has extensive experience maintaining quality levels of 100ppm or less for original equipment manufacturers.

Downloads:

Download Name	File Size
ds819.pdf	470.75KB

Vehicle Fitment:

The Vehicle Fitment Guide is to be used as a general reference. The data has been provided by our suppliers and manufacturers and may contain errors or incorrect data. Always refer to a professional to verify correct fitment for your vehicle.

Make	Model	Submodel	Years	Fitment Notes
Honda	CR-Z	Base	2011 - 2015	KIT,FRONT,HONDA CIVIC,06-UP,2011 CRZ 1.10,VENTED,12.88,DRILLED; RTR:12.88-IN DIA, SRP DRILLED ROTOR, DRILLED & SLOTTED; CLPR:FORGED NARROW SUPERLITE 6R, 6-PISTON, BLACK POWDER COAT
Honda	CR-Z	EX	2011 - 2015	KIT,FRONT,HONDA CIVIC,06-UP,2011 CRZ 1.10,VENTED,12.88,DRILLED; RTR:12.88-IN DIA, SRP DRILLED ROTOR, DRILLED & SLOTTED; CLPR:FORGED NARROW SUPERLITE 6R, 6-PISTON, BLACK POWDER COAT
Honda	CR-Z	Premium	2012 - 2014	KIT,FRONT,HONDA CIVIC,06-UP,2011 CRZ 1.10,VENTED,12.88,DRILLED; RTR:12.88-IN DIA, SRP DRILLED ROTOR, DRILLED & SLOTTED; CLPR:FORGED NARROW SUPERLITE 6R, 6-PISTON, BLACK POWDER COAT
Honda	Civic	DX	2006 - 2012	KIT,FRONT,HONDA CIVIC,06-UP,2011 CRZ 1.10,VENTED,12.88,DRILLED; RTR:12.88-IN DIA, SRP DRILLED ROTOR, DRILLED & SLOTTED; CLPR:FORGED NARROW SUPERLITE 6R, 6-PISTON, BLACK POWDER COAT
Honda	Civic	EX-L	2013 - 2017	KIT,FRONT,HONDA CIVIC,06-UP,2011 CRZ 1.10,VENTED,12.88,DRILLED; RTR:12.88-IN DIA, SRP DRILLED ROTOR, DRILLED & SLOTTED; CLPR:FORGED NARROW SUPERLITE 6R, 6-PISTON, BLACK POWDER COAT
Honda	Civic	EX-T	2016 - 2017	KIT,FRONT,HONDA CIVIC,06-UP,2011 CRZ 1.10,VENTED,12.88,DRILLED; RTR:12.88-IN DIA, SRP DRILLED ROTOR, DRILLED & SLOTTED; CLPR:FORGED NARROW SUPERLITE 6R, 6-PISTON, BLACK POWDER COAT
Honda	Civic	EX	2006 - 2017	KIT,FRONT,HONDA CIVIC,06-UP,2011 CRZ 1.10,VENTED,12.88,DRILLED; RTR:12.88-IN DIA, SRP DRILLED ROTOR, DRILLED & SLOTTED; CLPR:FORGED NARROW SUPERLITE 6R, 6-PISTON, BLACK POWDER COAT
Honda	Civic	GX	2006 - 2012	KIT,FRONT,HONDA CIVIC,06-UP,2011 CRZ 1.10,VENTED,12.88,DRILLED; RTR:12.88-IN DIA, SRP DRILLED ROTOR, DRILLED & SLOTTED; CLPR:FORGED NARROW SUPERLITE 6R, 6-PISTON, BLACK POWDER COAT
Honda	Civic	HF	2013 - 2015	KIT,FRONT,HONDA CIVIC,06-UP,2011 CRZ 1.10,VENTED,12.88,DRILLED; RTR:12.88-IN DIA, SRP DRILLED ROTOR, DRILLED & SLOTTED; CLPR:FORGED NARROW SUPERLITE 6R, 6-PISTON, BLACK POWDER COAT
Honda	Civic	Hybrid-L	2013 - 2015	KIT,FRONT,HONDA CIVIC,06-UP,2011 CRZ 1.10,VENTED,12.88,DRILLED; RTR:12.88-IN DIA, SRP DRILLED ROTOR, DRILLED & SLOTTED; CLPR:FORGED NARROW SUPERLITE 6R, 6-PISTON, BLACK POWDER COAT
Honda	Civic	Hybrid	2013 - 2015	KIT,FRONT,HONDA CIVIC,06-UP,2011 CRZ 1.10,VENTED,12.88,DRILLED; RTR:12.88-IN DIA, SRP DRILLED ROTOR, DRILLED & SLOTTED; CLPR:FORGED NARROW SUPERLITE 6R, 6-PISTON, BLACK POWDER COAT
Honda	Civic	Hybrid	2006 - 2012	KIT,FRONT,HONDA CIVIC,06-UP,2011 CRZ 1.10,VENTED,12.88,DRILLED; RTR:12.88-IN DIA, SRP DRILLED ROTOR, DRILLED & SLOTTED; CLPR:FORGED NARROW SUPERLITE 6R, 6-PISTON, BLACK POWDER COAT (SOHC) Hybrid Models
Honda	Civic	LX-P	2016 - 2017	KIT,FRONT,HONDA CIVIC,06-UP,2011 CRZ 1.10,VENTED,12.88,DRILLED; RTR:12.88-IN DIA, SRP DRILLED ROTOR, DRILLED & SLOTTED; CLPR:FORGED NARROW SUPERLITE 6R, 6-PISTON, BLACK POWDER COAT
Honda	Civic	LX	2006 - 2017	KIT,FRONT,HONDA CIVIC,06-UP,2011 CRZ 1.10,VENTED,12.88,DRILLED; RTR:12.88-IN DIA, SRP DRILLED ROTOR, DRILLED & SLOTTED; CLPR:FORGED NARROW SUPERLITE 6R, 6-PISTON, BLACK POWDER COAT
Honda	Civic	Natural Gas	2013 - 2015	KIT,FRONT,HONDA CIVIC,06-UP,2011 CRZ 1.10,VENTED,12.88,DRILLED; RTR:12.88-IN DIA, SRP DRILLED ROTOR, DRILLED & SLOTTED; CLPR:FORGED NARROW SUPERLITE 6R, 6-PISTON, BLACK POWDER COAT
Honda	Civic	SE	2015	KIT,FRONT,HONDA CIVIC,06-UP,2011 CRZ 1.10,VENTED,12.88,DRILLED; RTR:12.88-IN DIA, SRP DRILLED ROTOR, DRILLED & SLOTTED; CLPR:FORGED NARROW SUPERLITE 6R, 6-PISTON, BLACK POWDER COAT
Honda	Civic	Si	2013 - 2015	KIT,FRONT,HONDA CIVIC,06-UP,2011 CRZ 1.10,VENTED,12.88,DRILLED; RTR:12.88-IN DIA, SRP DRILLED ROTOR, DRILLED & SLOTTED; CLPR:FORGED NARROW SUPERLITE 6R, 6-PISTON, BLACK POWDER COAT
Honda	Civic	Si	2006 - 2012	KIT,FRONT,HONDA CIVIC,06-UP,2011 CRZ 1.10,VENTED,12.88,DRILLED; RTR:12.88-IN DIA, SRP DRILLED ROTOR, DRILLED & SLOTTED; CLPR:FORGED NARROW SUPERLITE 6R, 6-PISTON, BLACK POWDER COAT (DOHC) SI Models
Honda	Civic	Sport	2017	KIT,FRONT,HONDA CIVIC,06-UP,2011 CRZ 1.10,VENTED,12.88,DRILLED; RTR:12.88-IN DIA, SRP DRILLED ROTOR, DRILLED & SLOTTED; CLPR:FORGED NARROW SUPERLITE 6R, 6-PISTON, BLACK POWDER COAT
Honda	Civic	Touring	2016 - 2017	KIT,FRONT,HONDA CIVIC,06-UP,2011 CRZ 1.10,VENTED,12.88,DRILLED; RTR:12.88-IN DIA, SRP DRILLED ROTOR, DRILLED & SLOTTED; CLPR:FORGED NARROW SUPERLITE 6R, 6-PISTON, BLACK POWDER COAT

Specifications:

Details

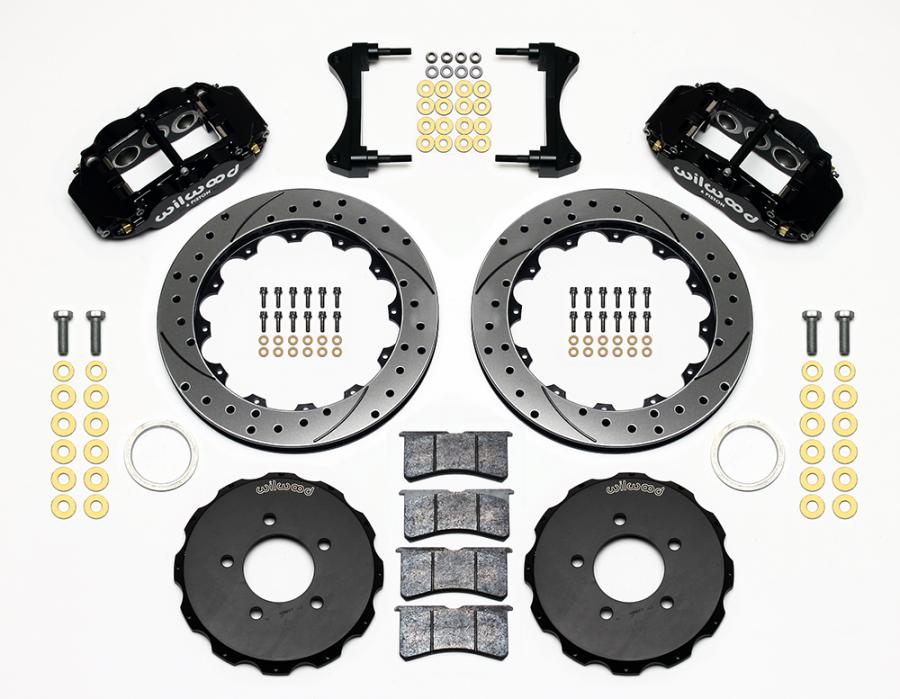

Part Type	Disc Brake Caliper / Rotor / Pad Kit

Kit Components & Specs / Rotors
Bedded	No
Design Type	SRP-BLK
Dynamically Balanced	Yes
Left Hand - Part No	160-13544-BK
Material	Spec-37 Iron
Outside Diameter (in)	12.88
Right Hand - Part No	160-13543-BK
Style	SRP Drilled & Slotted
Surface Finish	Black Electro Coat
Type	SRP Drilled Rotor
Vane Count	48 CV
Width (in)	1.10

Parts & Accessories / Caliper Parts
Bleed Screw Kit	220-0627
Bridge Bolt Kit	230-7710
CrossOver O-Ring Kit	130-10540
O-ring Kit	130-12488
Replacement Piston 1	200-7518
Replacement Piston 2	200-8439
Replacement Piston 3	200-8439
Wear Plate - Left Hand	300-6596
Wear Plate - Right Hand	300-6595

Kit Components & Specs / Rotor Hats
Bolt Circle 1	5 X 4.50
Bolt Circle 2	5 X 4.75
Finish Color	Black E-Coat
Hat - Part No	170-11804
Hat Offset Dimension (in)	0.540
Material	Aluminum
Stud Diameter - BC 1	0.580
Stud Diameter - BC 2	0.520
Stud Diameter - BC 3	0.000
Type	Big Brake Hat - Flared Bell

Parts & Accessories / Hat
Bolt Kit	230-8008

Kit Components & Specs / Calipers
Brake Pad Area (In²)	8.2
Brake Pad Plate	7416
Brake Pad Volume (In³)	3.8
Finish Color	Black Powder Coat
Left Hand - Part No	120-12003-BK
Mount Type	Radial
Pad Compound	BP-10
Piston 1 Bore (in)	1.38
Piston 2 Bore (in)	1.12
Piston 3 Bore (in)	1.12
Piston Area (In²)	3.46
Piston Count	6
Piston Type	Stainless
Right Hand - Part No	120-12002-BK
Type	Forged Narrow Superlite 6R


Caliper Type	6 - Black Powder Coat
Min Wheel Diameter Req'd*	17
Mount Type	Radial
Rotor Diameter	12.88
Spindle Type	Factory Disc Spindle

Parts & Accessories / *Brake Lines Needed
Front Line Kit	220-11980, 220-12016
