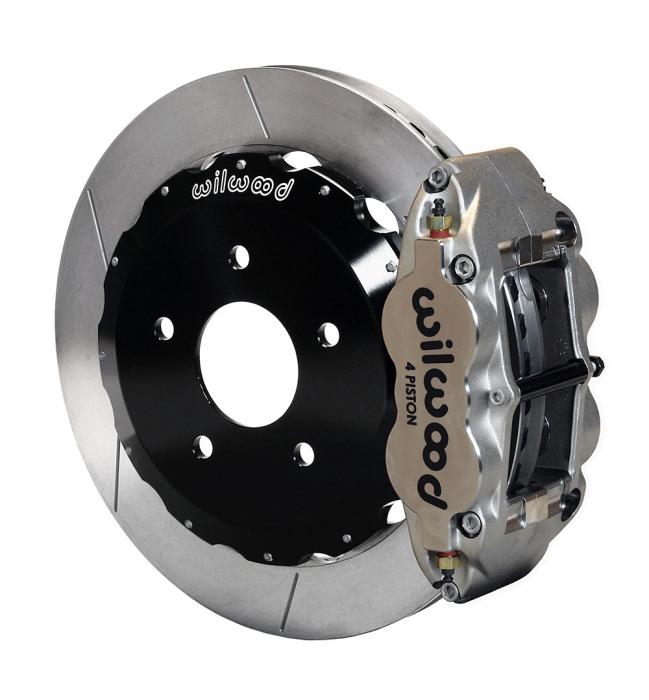

Wilwood Brakes Forged Narrow Superlite 4R Big Brake Rear Brake Kit (Race) 140-10638-N

Wilwood Brakes Forged Narrow Superlite 4R Big Brake Rear Brake Kit (Race) 140-10638-N
Wilwood Brakes Forged Narrow Superlite 4R Big Brake Rear Brake Kit (Race) 140-10638-NWilwood Brakes Forged Narrow Superlite 4R Big Brake Rear Brake Kit (Race) 140-10638-NWilwood Brakes Forged Narrow Superlite 4R Big Brake Rear Brake Kit (Race) 140-10638-NWilwood Brakes Forged Narrow Superlite 4R Big Brake Rear Brake Kit (Race) 140-10638-NWilwood Brakes Forged Narrow Superlite 4R Big Brake Rear Brake Kit (Race) 140-10638-NWilwood Brakes Forged Narrow Superlite 4R Big Brake Rear Brake Kit (Race) 140-10638-N
$3,414.99 ea
NEWOut of stock with WILWOOD ENGINEERING
Model: 3924619
STANDARD
DELIVERY
STORE PICKUP
[More Info]

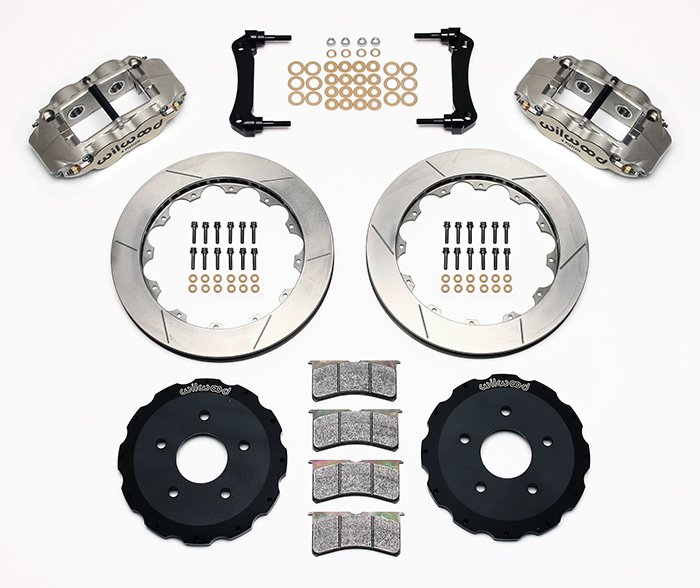

Forged Narrow Superlite 4R-QS caliper rear road race kits provide matched performance in conjunction with FSL6R and Aero6 front race kits on vehicles built specifically for competition. FNSL4R-QS calipers use high temperature, fluid resistant high gloss “Quick-Silver” finish, stainless steel pistons to retard heat transfer from the pads and high temperature seals for reliability in sustained high heat. Radial mount brackets attach the caliper in the stock location. GT series directional vane competition rotors provide high efficiency cooling and mount to the drive axles with forged aluminum hats. Kits also include high temperature, high friction race compound pads and all premium grade fasteners.

Fitment Notes

1. Road Race kits contain high temperature racing pads. Extended low temperature use will cause premature rotor and pad wear.
2. Kit may fit some 17" wheels. Check wheel clearance diagram in kit installation instructions before purchase.

About Wilwood Engineering

Wilwood Engineering designs and manufactures high-performance disc brake systems. Since the company’s inception in 1977 by Bill Wood, we have developed a substantial matrix of brake components and engineering techniques that allow us to quickly and reliably create brake systems for almost any application. Our core ability is the rapid development of custom engineered brake systems using a combination of off-the-shelf and custom components. In addition to designing and manufacturing brakes for all types of competitive motor sports, Wilwood also manufactures brake systems and components for agricultural equipment, industrial applications, utility vehicles, snowmobiles, quads, motorcycles and military vehicles.

With headquarters in Camarillo, California, Wilwood employs approximately 250 people. We have on-shelf stock of more than 300 different brake calipers, 200 rotor designs, 100 master cylinder designs and a wide assortment of brackets, fittings, valves and brake lines. Our off-shelf brake calipers range in size from tiny calipers used on go-carts and light duty industrial equipment, to heavy duty original equipment brakes for the U.S. military Humvee.

Wilwood's engineering department uses the latest computer-aided design and manufacturing techniques in conjunction with finite element analysis, dynamic test and cycle test equipment, to find high-performance and reliability solutions for the most difficult braking tasks. Our extensive inventory of proprietary on-the-shelf components allow us to provide cost-effective solutions for unique brake applications.

Wilwood is ISO 9000 compliant and has extensive experience maintaining quality levels of 100ppm or less for original equipment manufacturers.

Downloads:

Download Name File Size
ds628.pdf397.91KB

Videos:

Specifications:

Kit Summary
Axle Offset 0.00
Caliper Type 4 - Nickel Plate
Min Wheel Diameter Req'd* 17
Mount Type Radial
Rear End Axle OEM
Rotor Diameter 12.88
Kit Components & Specs / Rotors
Bedded No
Design Type GT
Dynamically Balanced Yes
Left Hand - Part No 160-13357
Material Spec-37 Iron
Outside Diameter (in) 12.88
Right Hand - Part No 160-13356
Style GT Slotted
Surface Finish Plain
Type GT 48 Curved Vane
Vane Count 48 CV
Width (in) 1.00
Parts & Accessories / Caliper Parts
Bleed Screw Kit 220-0627
Bridge Bolt Kit 230-7710
CrossOver O-Ring Kit 130-10540
O-ring Kit 130-2479
Replacement Piston 1 200-11343
Replacement Piston 2 200-11343
Wear Plate - Left Hand 300-6596
Wear Plate - Right Hand 300-6595

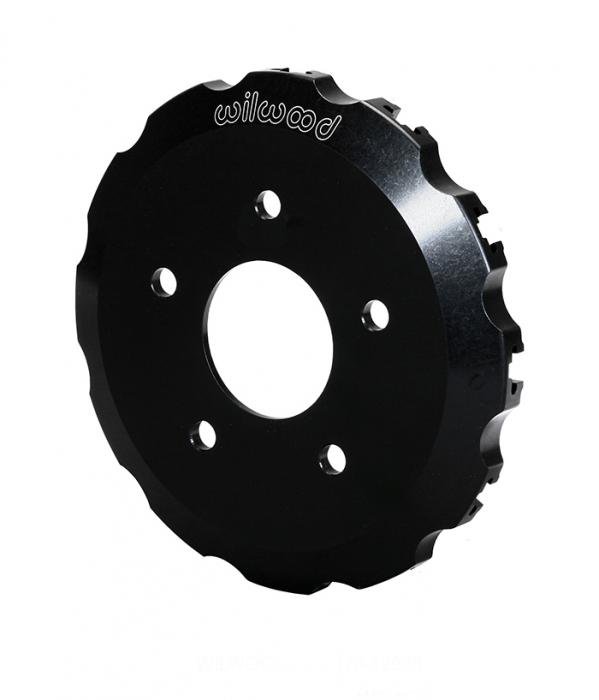

Kit Components & Specs / Rotor Hats
Bolt Circle 1 5 x 4.75
Finish Color Type III Anodize
Hat - Part No 170-12985
Hat Offset Dimension (in) 0.703
Material Aluminum
Stud Diameter - BC 1 0.520
Stud Diameter - BC 2 0.000
Stud Diameter - BC 3 0.000
Type Big Brake Dynamic Hat - Short Offset
Parts & Accessories / Hat
Bolt Kit 230-6656
Kit Components & Specs / Calipers
Brake Pad Area (In²) 8.2
Brake Pad Plate 7416
Brake Pad Volume (In³) 3.8
Finish Color Nickel Plate
Left Hand - Part No 120-12602-N
Mount Type Radial
Pad Compound BP-30
Piston 1 Bore (in) 1.25
Piston 2 Bore (in) 1.25
Piston Area (In²) 2.46
Piston Count 4
Piston Type Thermlock
Right Hand - Part No 120-12602-N
Type Forged Narrow Superlite 4R
Parts & Accessories / Brake Lines
Front Line Kit 220-8177, 220-9101
