Wilwood Brakes Forged Dynalite Rear Parking Brake Kit 140-9791-DR

Wilwood Brakes Forged Dynalite Rear Parking Brake Kit 140-9791-DR
Wilwood Brakes Forged Dynalite Rear Parking Brake Kit 140-9791-DRWilwood Brakes Forged Dynalite Rear Parking Brake Kit 140-9791-DRWilwood Brakes Forged Dynalite Rear Parking Brake Kit 140-9791-DRWilwood Brakes Forged Dynalite Rear Parking Brake Kit 140-9791-DRWilwood Brakes Forged Dynalite Rear Parking Brake Kit 140-9791-DR
$1,862.99 ea
NEWARRIVING SOONEstimated Ship Date 12/06/2024 (If Ordered Today)33 Available from WILWOOD ENGINEERING as of 11/23/2024
Model: 3920595
STANDARD
DELIVERY
STORE PICKUP
[More Info]

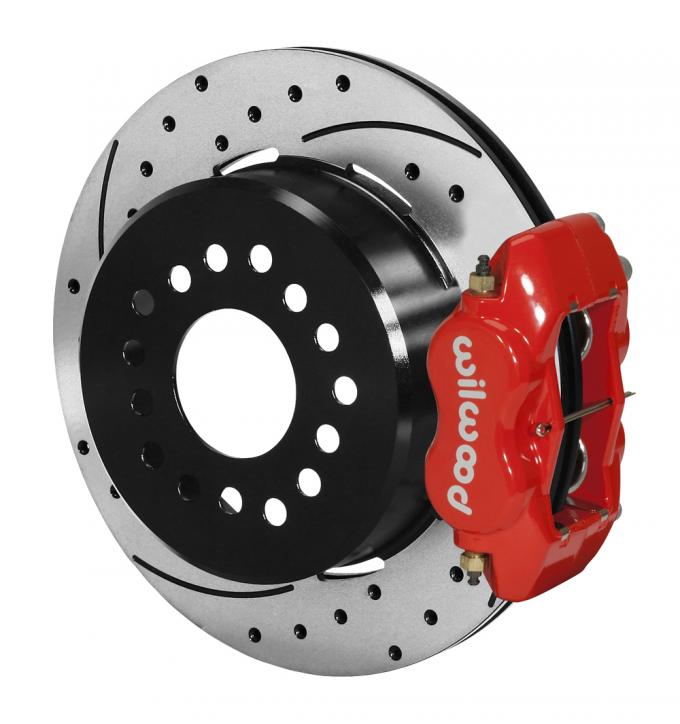

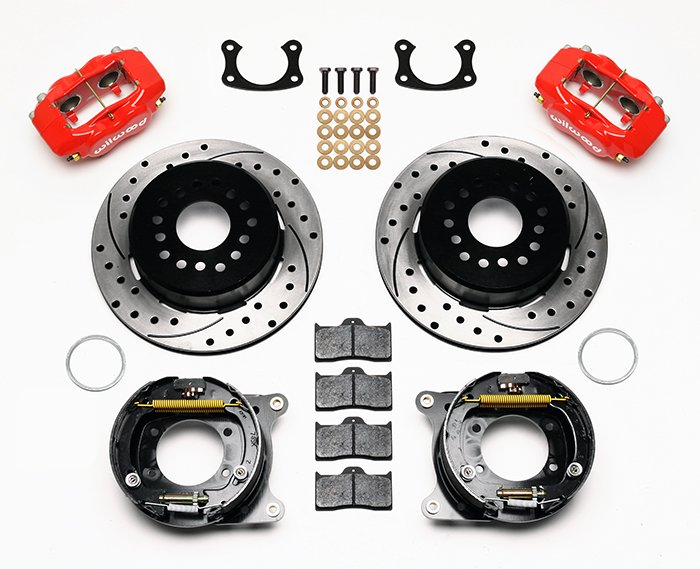

This group of FDL Pro-Series rear disc kits provides a complete solution for popular muscle car rear axles that require a parking brake. Forged billet Dynalite four piston calipers, 12.19” one-piece drum/rotors, and high friction pads provide optimized and balanced braking for all types of custom performance street/strip and show machines. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking. Optional caliper finishes and rotor designs enable the builder to personalize the style and optimize brake performance for every individual application.

Fitment Notes

1. Kit may fit some 15" wheels. Check wheel clearance diagram in kit installation instructions before purchase.
2. Kit contains front mount caliper brackets; calipers mount in front of axle.

About Wilwood Engineering

Wilwood Engineering designs and manufactures high-performance disc brake systems. Since the company’s inception in 1977 by Bill Wood, we have developed a substantial matrix of brake components and engineering techniques that allow us to quickly and reliably create brake systems for almost any application. Our core ability is the rapid development of custom engineered brake systems using a combination of off-the-shelf and custom components. In addition to designing and manufacturing brakes for all types of competitive motor sports, Wilwood also manufactures brake systems and components for agricultural equipment, industrial applications, utility vehicles, snowmobiles, quads, motorcycles and military vehicles.

With headquarters in Camarillo, California, Wilwood employs approximately 250 people. We have on-shelf stock of more than 300 different brake calipers, 200 rotor designs, 100 master cylinder designs and a wide assortment of brackets, fittings, valves and brake lines. Our off-shelf brake calipers range in size from tiny calipers used on go-carts and light duty industrial equipment, to heavy duty original equipment brakes for the U.S. military Humvee.

Wilwood's engineering department uses the latest computer-aided design and manufacturing techniques in conjunction with finite element analysis, dynamic test and cycle test equipment, to find high-performance and reliability solutions for the most difficult braking tasks. Our extensive inventory of proprietary on-the-shelf components allow us to provide cost-effective solutions for unique brake applications.

Wilwood is ISO 9000 compliant and has extensive experience maintaining quality levels of 100ppm or less for original equipment manufacturers.

Downloads:

Download Name File Size
ds557.pdf598.5KB

Specifications:

Kit Summary
Axle Offset 2.50
Caliper Type 4 - Red Powder Coat
Min Wheel Diameter Req'd* 15
Mount Type Lug
Rear End Axle Big Ford New Style
Rotor Diameter 12.19
Kit Components & Specs / Rotors
Bedded No
Design Type SRP-BLK
Dynamically Balanced No
Left Hand - Part No 160-9813-BK
Material Iron
Outside Diameter (in) 12.19
Right Hand - Part No 160-9812-BK
Style SRP Drilled & Slotted
Surface Finish Black Electro Coat
Type SRP Drilled Rotor & Hat
Vane Count 32 V
Width (in) 0.81
Parts & Accessories / Caliper Parts
Bleed Screw Kit 220-0627
CrossOver O-Ring Kit 130-10540
O-ring Kit 130-2658
Pad Retainer 180-0055
Replacement Piston 1 200-7518
Replacement Piston 2 200-7518
Wear Plate - Left Hand 300-5875
Wear Plate - Right Hand 300-5875
Kit Components & Specs / Calipers
Brake Pad Area (In²) 6.36
Brake Pad Plate 7112
Brake Pad Volume (In³) 2.1
Finish Color Red Powder Coat
Left Hand - Part No 120-13839-RD
Mount Type Lug
Pad Compound BP-10
Piston 1 Bore (in) 1.38
Piston 2 Bore (in) 1.38
Piston Area (In²) 3.00
Piston Count 4
Piston Type Stainless
Right Hand - Part No 120-13839-RD
Type Forged Dynalite Internal
Parts & Accessories / Brake Lines
Parking Brake Cable 330-9371
