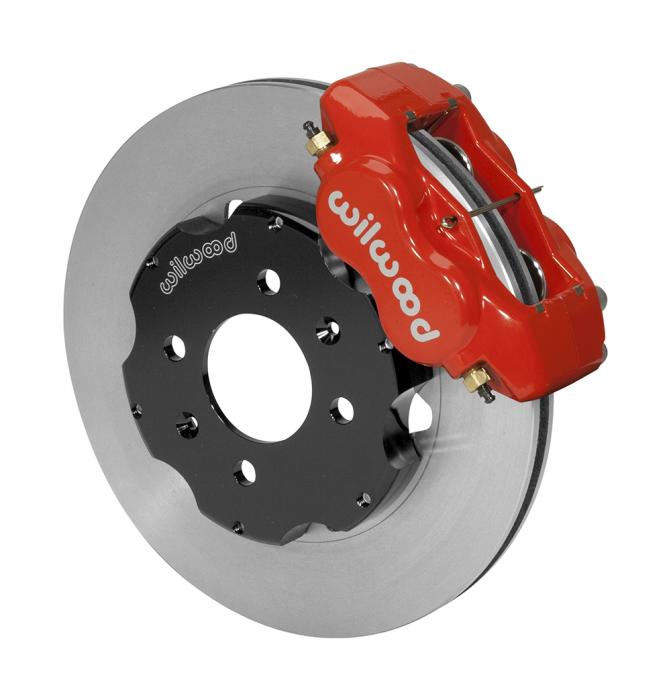

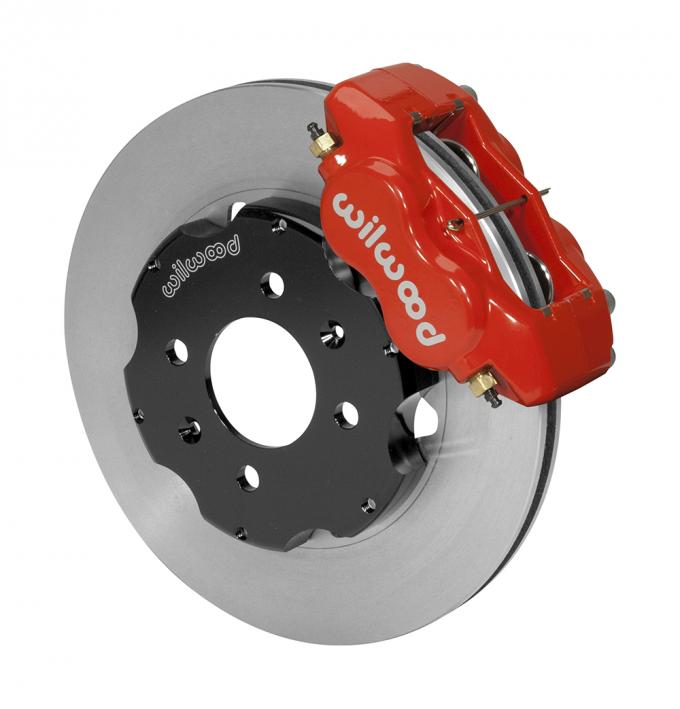

Wilwood Brakes Forged Dynalite Big Brake Front Brake Kit (Hat) 140-8695-R

Wilwood Brakes Forged Dynalite Big Brake Front Brake Kit (Hat) 140-8695-R
Wilwood Brakes Forged Dynalite Big Brake Front Brake Kit (Hat) 140-8695-RWilwood Brakes Forged Dynalite Big Brake Front Brake Kit (Hat) 140-8695-RWilwood Brakes Forged Dynalite Big Brake Front Brake Kit (Hat) 140-8695-RWilwood Brakes Forged Dynalite Big Brake Front Brake Kit (Hat) 140-8695-RWilwood Brakes Forged Dynalite Big Brake Front Brake Kit (Hat) 140-8695-RWilwood Brakes Forged Dynalite Big Brake Front Brake Kit (Hat) 140-8695-R
$1,407.99 ea
NEWARRIVING SOONEstimated Ship Date 12/09/2024 (If Ordered Today)23 Available from WILWOOD ENGINEERING as of 11/24/2024
Model: 3920398
Select a Vehicle or refer to the Vehicle Fitment Tab below to verify that this part fits your vehicle.
STANDARD
DELIVERY
STORE PICKUP
[More Info]

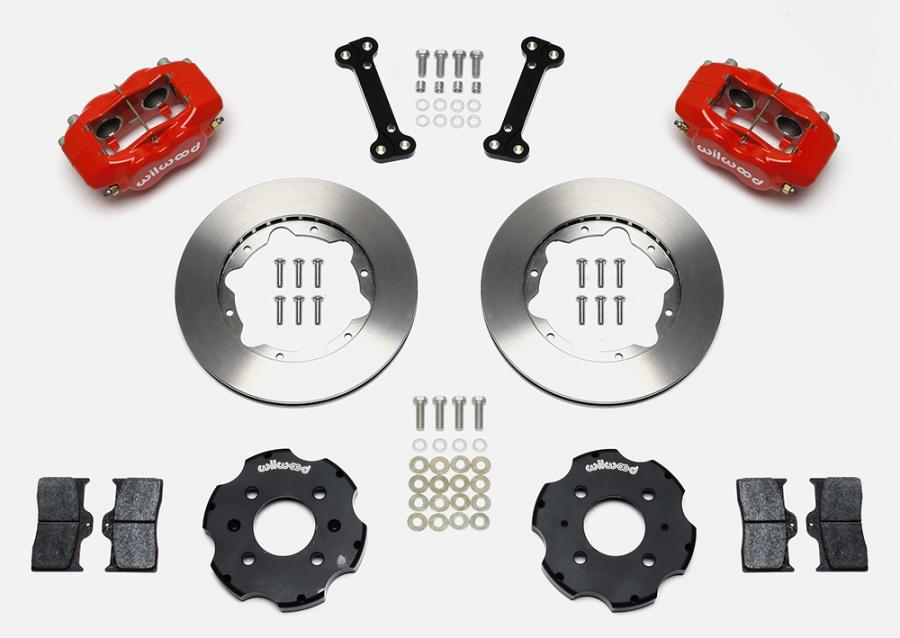

Forged Billet Dynalite calipers, oversized rotors, and high performance Wilwood brake pads deliver big brake stopping power with high-tech style for front wheel drive sport compacts. These kits are the perfect complement to wheel, tire, and suspension upgrades. Options for caliper finish and rotor design make it simple to match the brake response and style preferences on all types of daily drivers, race vehicles, and ultra-styled show machines. Each kit is engineered specific for each vehicle. They are fully compatible with OE master cylinder output while retaining the full factory ABS functions.

Fitment Notes

1. Kit may fit some 15" wheels. Check wheel clearance diagram in kit installation instructions before purchase.
2. This kit requires spindles from vehicles originally equipped with 240mm (9.45") diameter rotors.

About Wilwood Engineering

Wilwood Engineering designs and manufactures high-performance disc brake systems. Since the company’s inception in 1977 by Bill Wood, we have developed a substantial matrix of brake components and engineering techniques that allow us to quickly and reliably create brake systems for almost any application. Our core ability is the rapid development of custom engineered brake systems using a combination of off-the-shelf and custom components. In addition to designing and manufacturing brakes for all types of competitive motor sports, Wilwood also manufactures brake systems and components for agricultural equipment, industrial applications, utility vehicles, snowmobiles, quads, motorcycles and military vehicles.

With headquarters in Camarillo, California, Wilwood employs approximately 250 people. We have on-shelf stock of more than 300 different brake calipers, 200 rotor designs, 100 master cylinder designs and a wide assortment of brackets, fittings, valves and brake lines. Our off-shelf brake calipers range in size from tiny calipers used on go-carts and light duty industrial equipment, to heavy duty original equipment brakes for the U.S. military Humvee.

Wilwood's engineering department uses the latest computer-aided design and manufacturing techniques in conjunction with finite element analysis, dynamic test and cycle test equipment, to find high-performance and reliability solutions for the most difficult braking tasks. Our extensive inventory of proprietary on-the-shelf components allow us to provide cost-effective solutions for unique brake applications.

Wilwood is ISO 9000 compliant and has extensive experience maintaining quality levels of 100ppm or less for original equipment manufacturers.

Downloads:

Download Name File Size
ds491.pdf425.45KB

Vehicle Fitment:

The Vehicle Fitment Guide is to be used as a general reference. The data has been provided by our suppliers and manufacturers and may contain errors or incorrect data. Always refer to a professional to verify correct fitment for your vehicle.
Make Model Submodel Years Fitment Notes
Honda CRX HF 1988 - 1991 KIT,FRONT,CIVIC,OEM,240mm 11.00 ROTOR,RED; RTR:11.00-IN DIA, ULTRALITE HP 30, UNDRILLED; CLPR:FORGED DYNALITE INTERNAL, 4-PISTON, RED POWDER COAT
Honda CRX Si 1990 - 1991 KIT,FRONT,CIVIC,OEM,240mm 11.00 ROTOR,RED; RTR:11.00-IN DIA, ULTRALITE HP 30, UNDRILLED; CLPR:FORGED DYNALITE INTERNAL, 4-PISTON, RED POWDER COAT
Honda CRX 1988 - 1989 KIT,FRONT,CIVIC,OEM,240mm 11.00 ROTOR,RED; RTR:11.00-IN DIA, ULTRALITE HP 30, UNDRILLED; CLPR:FORGED DYNALITE INTERNAL, 4-PISTON, RED POWDER COAT
DX & SI Models
Honda CRX 1990 - 1991 KIT,FRONT,CIVIC,OEM,240mm 11.00 ROTOR,RED; RTR:11.00-IN DIA, ULTRALITE HP 30, UNDRILLED; CLPR:FORGED DYNALITE INTERNAL, 4-PISTON, RED POWDER COAT
DX Models
Honda Civic del Sol 1993 - 1994 KIT,FRONT,CIVIC,OEM,240mm 11.00 ROTOR,RED; RTR:11.00-IN DIA, ULTRALITE HP 30, UNDRILLED; CLPR:FORGED DYNALITE INTERNAL, 4-PISTON, RED POWDER COAT
Honda Civic del Sol 1995 - 1997 KIT,FRONT,CIVIC,OEM,240mm 11.00 ROTOR,RED; RTR:11.00-IN DIA, ULTRALITE HP 30, UNDRILLED; CLPR:FORGED DYNALITE INTERNAL, 4-PISTON, RED POWDER COAT
S Models
Honda Civic Base 1988 - 1991 KIT,FRONT,CIVIC,OEM,240mm 11.00 ROTOR,RED; RTR:11.00-IN DIA, ULTRALITE HP 30, UNDRILLED; CLPR:FORGED DYNALITE INTERNAL, 4-PISTON, RED POWDER COAT
Base Hatchback Models
Honda Civic EX 1996 KIT,FRONT,CIVIC,OEM,240mm 11.00 ROTOR,RED; RTR:11.00-IN DIA, ULTRALITE HP 30, UNDRILLED; CLPR:FORGED DYNALITE INTERNAL, 4-PISTON, RED POWDER COAT
Honda Civic GX 1998 - 1999 KIT,FRONT,CIVIC,OEM,240mm 11.00 ROTOR,RED; RTR:11.00-IN DIA, ULTRALITE HP 30, UNDRILLED; CLPR:FORGED DYNALITE INTERNAL, 4-PISTON, RED POWDER COAT
Honda Civic Si 1989 - 1993 KIT,FRONT,CIVIC,OEM,240mm 11.00 ROTOR,RED; RTR:11.00-IN DIA, ULTRALITE HP 30, UNDRILLED; CLPR:FORGED DYNALITE INTERNAL, 4-PISTON, RED POWDER COAT
Si Hatchback Models
Honda Civic 1988 KIT,FRONT,CIVIC,OEM,240mm 11.00 ROTOR,RED; RTR:11.00-IN DIA, ULTRALITE HP 30, UNDRILLED; CLPR:FORGED DYNALITE INTERNAL, 4-PISTON, RED POWDER COAT
Honda Civic 1992 KIT,FRONT,CIVIC,OEM,240mm 11.00 ROTOR,RED; RTR:11.00-IN DIA, ULTRALITE HP 30, UNDRILLED; CLPR:FORGED DYNALITE INTERNAL, 4-PISTON, RED POWDER COAT
DX/LX Models
Hatchback Standard Transmission Models, Excludes Si Models
Hatchback Automatic Models, Excludes Si Models
Honda Civic 1993 KIT,FRONT,CIVIC,OEM,240mm 11.00 ROTOR,RED; RTR:11.00-IN DIA, ULTRALITE HP 30, UNDRILLED; CLPR:FORGED DYNALITE INTERNAL, 4-PISTON, RED POWDER COAT
DX/LX Models
Hatchback Standard Transmission Models, Excludes Si Models
Hatchback Automatic Models, Excludes Si Models
Coupe DX Models
Honda Civic 1997 KIT,FRONT,CIVIC,OEM,240mm 11.00 ROTOR,RED; RTR:11.00-IN DIA, ULTRALITE HP 30, UNDRILLED; CLPR:FORGED DYNALITE INTERNAL, 4-PISTON, RED POWDER COAT
Excludes EX Models
Hatchback Models
Coupe DX/HX Models
Honda Civic 1999 - 2000 KIT,FRONT,CIVIC,OEM,240mm 11.00 ROTOR,RED; RTR:11.00-IN DIA, ULTRALITE HP 30, UNDRILLED; CLPR:FORGED DYNALITE INTERNAL, 4-PISTON, RED POWDER COAT
Hatchback Models
Coupe DX/HX Models
Honda Civic 1994 - 1995 KIT,FRONT,CIVIC,OEM,240mm 11.00 ROTOR,RED; RTR:11.00-IN DIA, ULTRALITE HP 30, UNDRILLED; CLPR:FORGED DYNALITE INTERNAL, 4-PISTON, RED POWDER COAT
LX Models
DX Models
Hatchback Si Models
Hatchback Standard Transmission Models, Excludes Si Models
Hatchback Automatic Models, Excludes Si Models
Coupe DX Models
Honda Civic 1989 - 1991 KIT,FRONT,CIVIC,OEM,240mm 11.00 ROTOR,RED; RTR:11.00-IN DIA, ULTRALITE HP 30, UNDRILLED; CLPR:FORGED DYNALITE INTERNAL, 4-PISTON, RED POWDER COAT
Sedan DX/LX Models
HB DX Models
Honda Civic 1996 - 1998 KIT,FRONT,CIVIC,OEM,240mm 11.00 ROTOR,RED; RTR:11.00-IN DIA, ULTRALITE HP 30, UNDRILLED; CLPR:FORGED DYNALITE INTERNAL, 4-PISTON, RED POWDER COAT
Sedan without ABS Models
Hatchback Models
Coupe DX/HX Models

Specifications:

Details
Part Type Disc Brake Caliper / Rotor / Pad Kit
Kit Components & Specs / Rotors
Bedded No
Design Type ULHP
Dynamically Balanced No
Left Hand - Part No 160-5840
Material Iron
Outside Diameter (in) 11.00
Right Hand - Part No 160-5840
Style Plain Face
Surface Finish Plain
Type Ultralite HP 30
Vane Count 30 V
Width (in) 0.81
Parts & Accessories / Caliper Parts
Bleed Screw Kit 220-0627
CrossOver O-Ring Kit 130-10540
O-ring Kit 130-2658
Pad Retainer 180-0055
Replacement Piston 1 200-7518
Replacement Piston 2 200-7518
Wear Plate - Left Hand 300-5875
Wear Plate - Right Hand 300-5875
Kit Components & Specs / Rotor Hats
Bolt Circle 1 4 x 3.93
Finish Color Black E-Coat
Hat - Part No 170-8643
Hat Offset Dimension (in) 0.660
Material Aluminum
Stud Diameter - BC 1 0.500
Stud Diameter - BC 2 0.000
Stud Diameter - BC 3 0.000
Type Drag Hat - Shallow Offset
Parts & Accessories / Hat
Bolt Kit 230-12176
Kit Components & Specs / Calipers
Brake Pad Area (In²) 6.36
Brake Pad Plate 7112
Brake Pad Volume (In³) 2.1
Finish Color Red Powder Coat
Left Hand - Part No 120-13839-RD
Mount Type Lug
Pad Compound BP-10
Piston 1 Bore (in) 1.38
Piston 2 Bore (in) 1.38
Piston Area (In²) 3.00
Piston Count 4
Piston Type Stainless
Right Hand - Part No 120-13839-RD
Type Forged Dynalite Internal
Caliper Type 4 - Red Powder Coat
Min Wheel Diameter Req'd* 15
Mount Type Lug
Rotor Diameter 11.00
Spindle Type Factory Disc Spindle
Parts & Accessories / *Brake Lines Needed
Front Line Kit 220-6419
