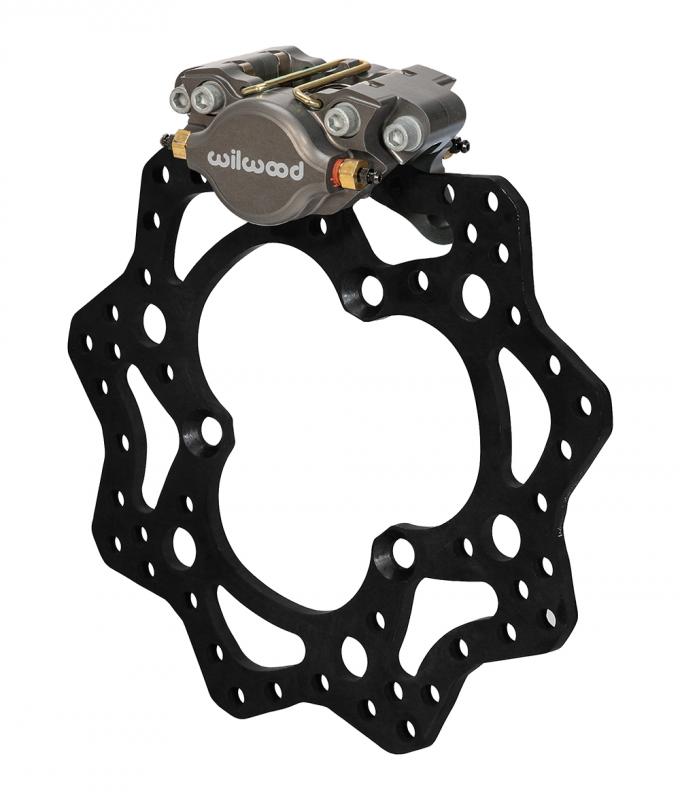

Wilwood Brakes Dynapro Single Left Front Brake Kit 140-12957

Wilwood Brakes Dynapro Single Left Front Brake Kit 140-12957
Wilwood Brakes Dynapro Single Left Front Brake Kit 140-12957Wilwood Brakes Dynapro Single Left Front Brake Kit 140-12957Wilwood Brakes Dynapro Single Left Front Brake Kit 140-12957Wilwood Brakes Dynapro Single Left Front Brake Kit 140-12957Wilwood Brakes Dynapro Single Left Front Brake Kit 140-12957
$464.99 ea
NEWARRIVING SOONEstimated Ship Date 12/09/2024 (If Ordered Today)21 Available from WILWOOD ENGINEERING as of 11/24/2024
Model: 3921551
STANDARD
DELIVERY
STORE PICKUP
[More Info]

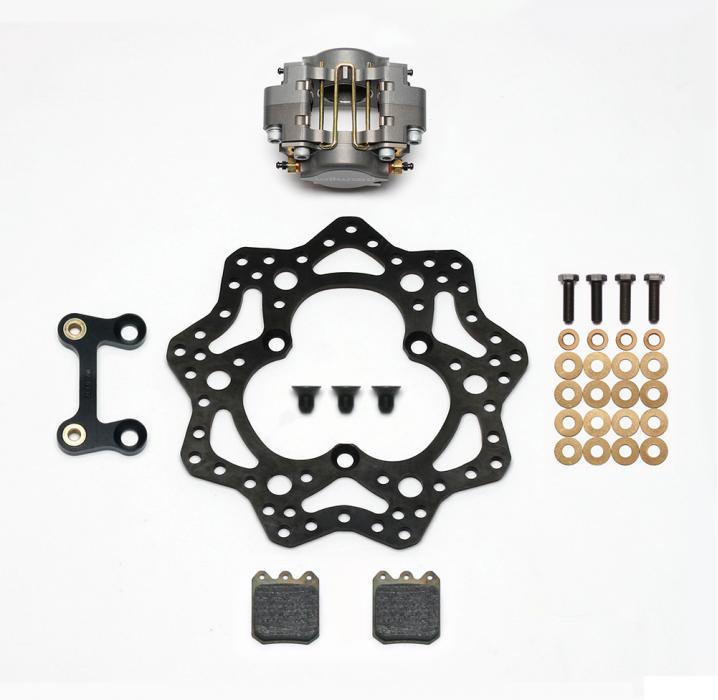

The Dynapro Single Left Front Sprint & Midget kits are a further evolution of a proven design from Wilwood’s 35+ years of engineering and producing the best open wheel braking systems. Dynapro single calipers have full 2.40 square inches of area for increased clamping force. Kits are offered with either Slotted Titanium or Scalloped Alloy Steel Rotors for high heat or Aluminum rotors for maximizing weight saving on light braking tracks. Kit come complete with caliper, brake pads, caliper mounting brackets, caliper mount bolt kit, rotor and rotor mounting hardware.

About Wilwood Engineering

Wilwood Engineering designs and manufactures high-performance disc brake systems. Since the company’s inception in 1977 by Bill Wood, we have developed a substantial matrix of brake components and engineering techniques that allow us to quickly and reliably create brake systems for almost any application. Our core ability is the rapid development of custom engineered brake systems using a combination of off-the-shelf and custom components. In addition to designing and manufacturing brakes for all types of competitive motor sports, Wilwood also manufactures brake systems and components for agricultural equipment, industrial applications, utility vehicles, snowmobiles, quads, motorcycles and military vehicles.

With headquarters in Camarillo, California, Wilwood employs approximately 250 people. We have on-shelf stock of more than 300 different brake calipers, 200 rotor designs, 100 master cylinder designs and a wide assortment of brackets, fittings, valves and brake lines. Our off-shelf brake calipers range in size from tiny calipers used on go-carts and light duty industrial equipment, to heavy duty original equipment brakes for the U.S. military Humvee.

Wilwood's engineering department uses the latest computer-aided design and manufacturing techniques in conjunction with finite element analysis, dynamic test and cycle test equipment, to find high-performance and reliability solutions for the most difficult braking tasks. Our extensive inventory of proprietary on-the-shelf components allow us to provide cost-effective solutions for unique brake applications.

Wilwood is ISO 9000 compliant and has extensive experience maintaining quality levels of 100ppm or less for original equipment manufacturers.

Specifications:

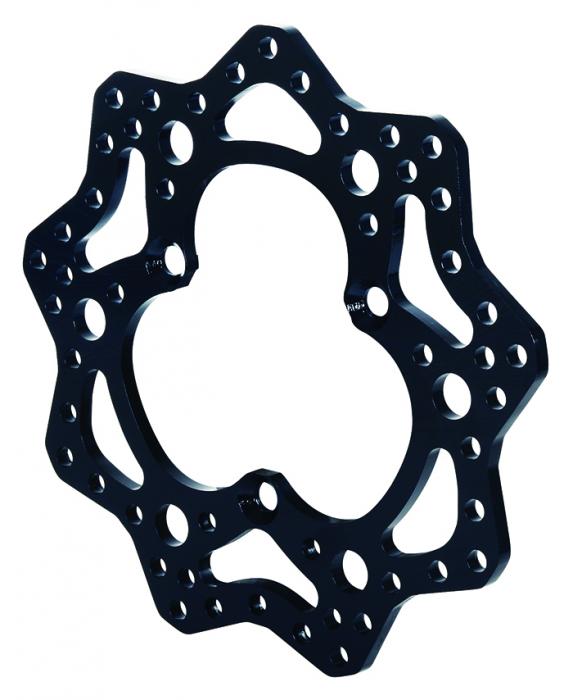

Kit Components & Specs / Rotors
Bedded No
Design Type Steel Scalloped
Dynamically Balanced No
Left Hand - Part No 160-10475
Material Steel
Outside Diameter (in) 11.00
Style Drilled
Surface Finish Black Electro Coat
Type Steel
Vane Count Solid
Width (in) 0.31
Parts & Accessories / Caliper Parts
Bleed Screw Kit 220-0627
CrossOver O-Ring Kit 130-10540
O-ring Kit 130-2655
Pad Retainer 300-9786
Replacement Piston 1 200-7528
Wear Plate - Left Hand 300-5875
Wear Plate - Right Hand 300-5875
Kit Components & Specs / Calipers
Brake Pad Area (In²) 3
Brake Pad Plate 6812
Brake Pad Volume (In³) 1.1
Finish Color Type III Ano
Left Hand - Part No 120-10188
Mount Type Lug
Pad Compound BP-40
Piston 1 Bore (in) 1.75
Piston Area (In²) 2.40
Piston Count 2
Piston Type Stainless
Type Dynapro Single
Caliper Type 2 - Type III Ano
Mount Type Lug
Rotor Diameter 11.00
