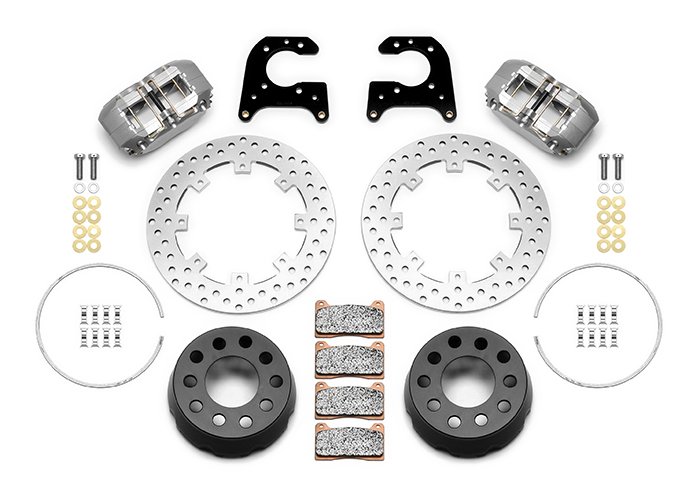

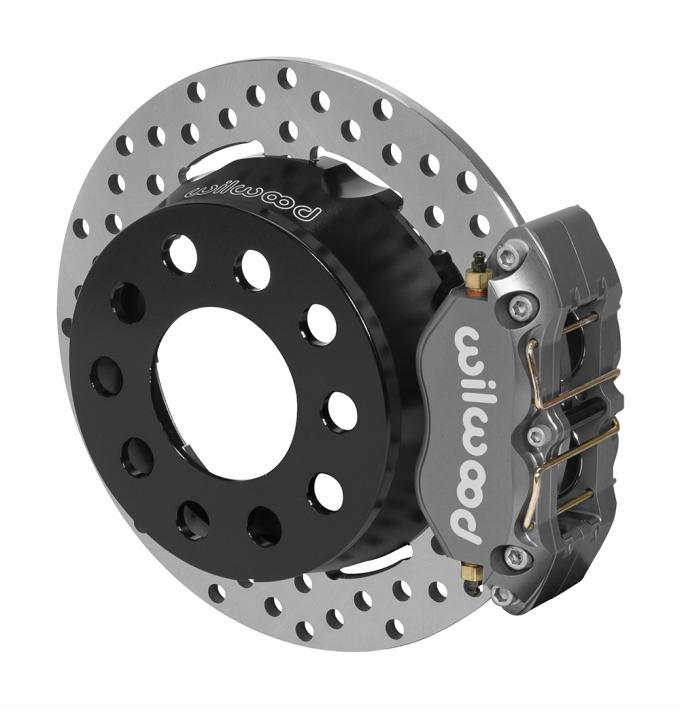

Wilwood Brakes Dynapro SA Lug Drive Dynamic Rear Drag Brake Kit 140-14141-D

Wilwood Brakes Dynapro SA Lug Drive Dynamic Rear Drag Brake Kit 140-14141-D
Wilwood Brakes Dynapro SA Lug Drive Dynamic Rear Drag Brake Kit 140-14141-DWilwood Brakes Dynapro SA Lug Drive Dynamic Rear Drag Brake Kit 140-14141-DWilwood Brakes Dynapro SA Lug Drive Dynamic Rear Drag Brake Kit 140-14141-DWilwood Brakes Dynapro SA Lug Drive Dynamic Rear Drag Brake Kit 140-14141-DWilwood Brakes Dynapro SA Lug Drive Dynamic Rear Drag Brake Kit 140-14141-D
$1,620.99 ea
NEWARRIVING SOONEstimated Ship Date 12/06/2024 (If Ordered Today)12 Available from WILWOOD ENGINEERING as of 11/24/2024
Model: 3921965
STANDARD
DELIVERY
STORE PICKUP
[More Info]

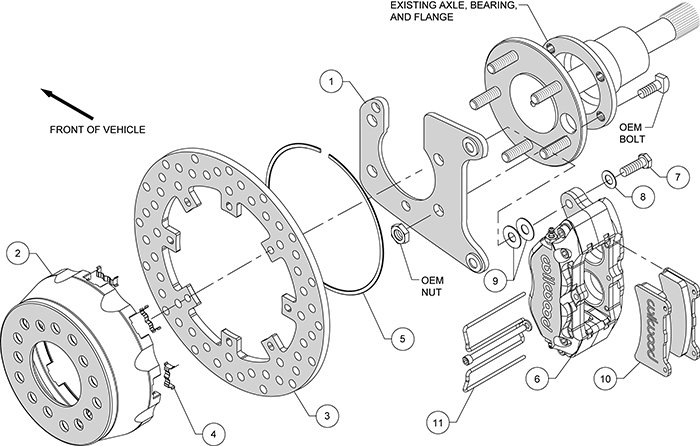

Wilwood's new Billet Dynapro Lug-Drive Dynamic Stainless Super Alloy Rotor Brake Kits are especially beneficial to cars that rely heavily on the rear brakes for stopping and any other high speed, heavy weight cars that generate above average rear brake heat. The lug-drive rotor mounting system eliminates the rotor bolts and instead, a large single internal snap-ring retains the rotor in the hat, making assembly and installation literally a snap. This system allows the rotors to move independently of the hats as they expand and contract through heat cycles. All thermally generated stress is removed from the rotor attachment points. The rotors stay flatter and run truer. Kits are available in two rotor diameters: A traditional 11.44” diameter and a smaller 11.25” diameter for clearance with bead lock rims. The hats are no longer distorted by stresses generated by thermal expansion and shrinkage of the rotors. Spring-loaded, replaceable stainless steel inserts in each lug-drive slot protect the aluminum hat from wear that would otherwise be caused by loading of the stainless steel rotor against the hat when brake torque is applied. Kits are available in Single and Dual caliper configurations.

Fitment Notes

1. Hats drilled with 5 x 4.75" / 5.00" B.C. pattern for .64" studs.

About Wilwood Engineering

Wilwood Engineering designs and manufactures high-performance disc brake systems. Since the company’s inception in 1977 by Bill Wood, we have developed a substantial matrix of brake components and engineering techniques that allow us to quickly and reliably create brake systems for almost any application. Our core ability is the rapid development of custom engineered brake systems using a combination of off-the-shelf and custom components. In addition to designing and manufacturing brakes for all types of competitive motor sports, Wilwood also manufactures brake systems and components for agricultural equipment, industrial applications, utility vehicles, snowmobiles, quads, motorcycles and military vehicles.

With headquarters in Camarillo, California, Wilwood employs approximately 250 people. We have on-shelf stock of more than 300 different brake calipers, 200 rotor designs, 100 master cylinder designs and a wide assortment of brackets, fittings, valves and brake lines. Our off-shelf brake calipers range in size from tiny calipers used on go-carts and light duty industrial equipment, to heavy duty original equipment brakes for the U.S. military Humvee.

Wilwood's engineering department uses the latest computer-aided design and manufacturing techniques in conjunction with finite element analysis, dynamic test and cycle test equipment, to find high-performance and reliability solutions for the most difficult braking tasks. Our extensive inventory of proprietary on-the-shelf components allow us to provide cost-effective solutions for unique brake applications.

Wilwood is ISO 9000 compliant and has extensive experience maintaining quality levels of 100ppm or less for original equipment manufacturers.

Downloads:

Download Name File Size
ds1170.pdf536.45KB

Specifications:

Kit Summary
Axle Offset 2.81
Caliper Type 4 - Type III Ano
Min Wheel Diameter Req'd* 15
Mount Type Lug
Rear End Axle Olds/Pontiac
Rotor Diameter 11.25
Kit Components & Specs / Rotors
Bedded No
Design Type Alloy Solid
Dynamically Balanced No
Left Hand - Part No 160-14155
Material Super Alloy
Outside Diameter (in) 11.25
Right Hand - Part No 160-14155
Style Drilled
Surface Finish Plain
Type Drilled Super Alloy Rotor
Vane Count Solid
Width (in) 0.35
Parts & Accessories / Caliper Parts
Bleed Screw Kit 220-0627
Bridge Bolt Kit 230-10117
CrossOver O-Ring Kit 130-10540
O-ring Kit 130-2655
Pad Retainer 300-9634
Replacement Piston 1 200-7528
Replacement Piston 2 200-7528
Wear Plate - Left Hand 300-5875
Wear Plate - Right Hand 300-5875
Kit Components & Specs / Rotor Hats
Bolt Circle 1 5 x 5.00
Bolt Circle 2 5 X 4.75
Finish Color Type III Anodize
Hat - Part No 170-12431
Hat Offset Dimension (in) 1.960
Material Aluminum
Stud Diameter - BC 1 0.700
Stud Diameter - BC 2 0.700
Stud Diameter - BC 3 0.000
Type Dynamic Drag Hat - Lug Drive
Parts & Accessories / Hat
Bolt Kit 300-12561
Kit Components & Specs / Calipers
Brake Pad Area (In²) 6.36
Brake Pad Plate 7812
Brake Pad Volume (In³) 2.1
Finish Color Type III Ano
Left Hand - Part No 120-14153
Mount Type Lug
Pad Compound CM - Composite Metallic
Piston 1 Bore (in) 1.75
Piston 2 Bore (in) 1.75
Piston Area (In²) 4.80
Piston Count 4
Piston Type Stainless
Right Hand - Part No 120-14153
Type Dynapro Lug Mount
