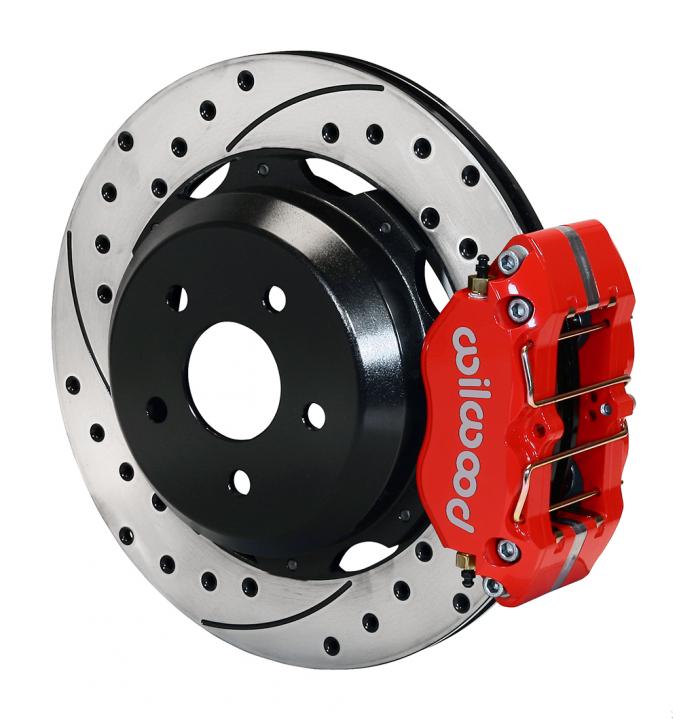

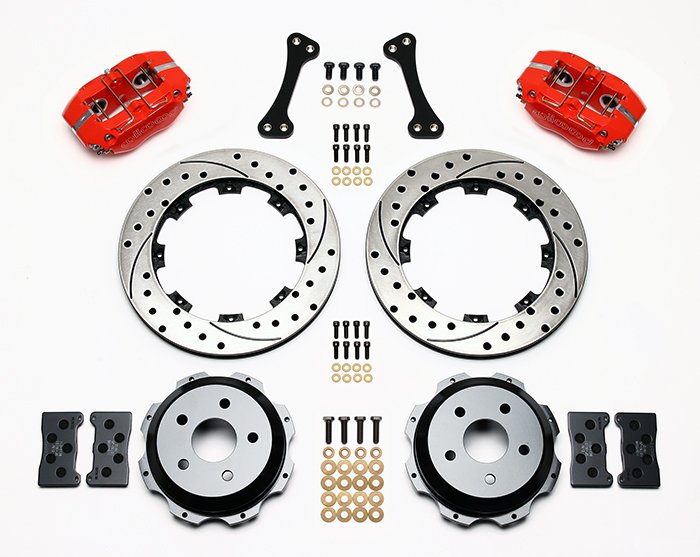

Forged billet DynaPro four piston calipers and high performance BP-10 compound pads generate high clamping power with firm pedal response for this group of specialized rear axle brake kits. These kits retain full function of the OE parking brake and provide complimentary performance and style with front big brake upgrades. Caliper piston sizes are selected to provide balanced rear bias ratios using the output from the OE master cylinder. Rear rotor and hat combinations are engineered specific to each vehicle to provide brake performance upgrades and precise fit with the mounting of the DynaPro calipers.
Wilwood Engineering designs and manufactures high-performance disc brake systems. Since the company’s inception in 1977 by Bill Wood, we have developed a substantial matrix of brake components and engineering techniques that allow us to quickly and reliably create brake systems for almost any application. Our core ability is the rapid development of custom engineered brake systems using a combination of off-the-shelf and custom components. In addition to designing and manufacturing brakes for all types of competitive motor sports, Wilwood also manufactures brake systems and components for agricultural equipment, industrial applications, utility vehicles, snowmobiles, quads, motorcycles and military vehicles.
With headquarters in Camarillo, California, Wilwood employs approximately 250 people. We have on-shelf stock of more than 300 different brake calipers, 200 rotor designs, 100 master cylinder designs and a wide assortment of brackets, fittings, valves and brake lines. Our off-shelf brake calipers range in size from tiny calipers used on go-carts and light duty industrial equipment, to heavy duty original equipment brakes for the U.S. military Humvee.
Wilwood's engineering department uses the latest computer-aided design and manufacturing techniques in conjunction with finite element analysis, dynamic test and cycle test equipment, to find high-performance and reliability solutions for the most difficult braking tasks. Our extensive inventory of proprietary on-the-shelf components allow us to provide cost-effective solutions for unique brake applications.
Wilwood is ISO 9000 compliant and has extensive experience maintaining quality levels of 100ppm or less for original equipment manufacturers.
| Download Name | File Size |
| ds411.pdf | 302.31KB |
| Make | Model | Submodel | Years | Fitment Notes |

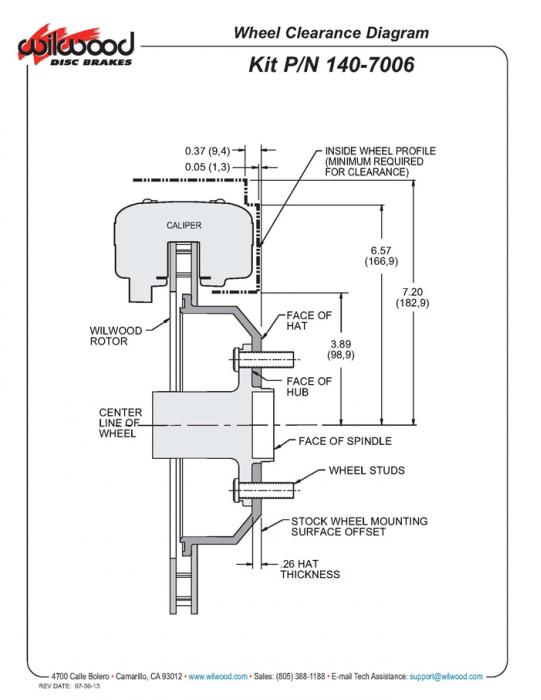

| Saab | 9-2X | 2005 - 2006 | KIT,REAR,WRX,SUBARU,12.19 ROTOR DRILLED,RED; RTR:12.19-IN DIA, SRP DRILLED ROTOR, DRILLED & SLOTTED; CLPR:DYNAPRO LUG MOUNT, 4-PISTON, RED POWDER COAT Rear kit fits USDM models equipped with single piston rear calipers and 170mm parking brake shoes. Kit may fit some 15" wheels. Check wheel clearance diagram in kit installation instructions before purchase. |
|
| Subaru | Forester | 2001 - 2008 | KIT,REAR,WRX,SUBARU,12.19 ROTOR DRILLED,RED; RTR:12.19-IN DIA, SRP DRILLED ROTOR, DRILLED & SLOTTED; CLPR:DYNAPRO LUG MOUNT, 4-PISTON, RED POWDER COAT Rear kit fits USDM models equipped with single piston rear calipers and 170mm parking brake shoes. Kit may fit some 15" wheels. Check wheel clearance diagram in kit installation instructions before purchase. Disc Brake Rear Models |
|
| Subaru | Impreza | 2.5i | 2006 - 2007 | KIT,REAR,WRX,SUBARU,12.19 ROTOR DRILLED,RED; RTR:12.19-IN DIA, SRP DRILLED ROTOR, DRILLED & SLOTTED; CLPR:DYNAPRO LUG MOUNT, 4-PISTON, RED POWDER COAT Rear kit fits USDM models equipped with single piston rear calipers and 170mm parking brake shoes. Kit may fit some 15" wheels. Check wheel clearance diagram in kit installation instructions before purchase. Disc Brake Rear Models |
| Subaru | Impreza | Outback Sport | 2005 - 2007 | KIT,REAR,WRX,SUBARU,12.19 ROTOR DRILLED,RED; RTR:12.19-IN DIA, SRP DRILLED ROTOR, DRILLED & SLOTTED; CLPR:DYNAPRO LUG MOUNT, 4-PISTON, RED POWDER COAT Rear kit fits USDM models equipped with single piston rear calipers and 170mm parking brake shoes. Kit may fit some 15" wheels. Check wheel clearance diagram in kit installation instructions before purchase. Disc Brake Rear Models |
| Subaru | Impreza | Outback | 2004 | KIT,REAR,WRX,SUBARU,12.19 ROTOR DRILLED,RED; RTR:12.19-IN DIA, SRP DRILLED ROTOR, DRILLED & SLOTTED; CLPR:DYNAPRO LUG MOUNT, 4-PISTON, RED POWDER COAT Rear kit fits USDM models equipped with single piston rear calipers and 170mm parking brake shoes. Kit may fit some 15" wheels. Check wheel clearance diagram in kit installation instructions before purchase. Disc Brake Rear Models |
| Subaru | Impreza | RS | 1999 - 2005 | KIT,REAR,WRX,SUBARU,12.19 ROTOR DRILLED,RED; RTR:12.19-IN DIA, SRP DRILLED ROTOR, DRILLED & SLOTTED; CLPR:DYNAPRO LUG MOUNT, 4-PISTON, RED POWDER COAT Rear kit fits USDM models equipped with single piston rear calipers and 170mm parking brake shoes. Kit may fit some 15" wheels. Check wheel clearance diagram in kit installation instructions before purchase. Disc Brake Rear Models |
| Subaru | Impreza | TS | 2004 | KIT,REAR,WRX,SUBARU,12.19 ROTOR DRILLED,RED; RTR:12.19-IN DIA, SRP DRILLED ROTOR, DRILLED & SLOTTED; CLPR:DYNAPRO LUG MOUNT, 4-PISTON, RED POWDER COAT Rear kit fits USDM models equipped with single piston rear calipers and 170mm parking brake shoes. Kit may fit some 15" wheels. Check wheel clearance diagram in kit installation instructions before purchase. Disc Brake Rear Models |
| Subaru | Impreza | WRX | 2002 - 2003 | KIT,REAR,WRX,SUBARU,12.19 ROTOR DRILLED,RED; RTR:12.19-IN DIA, SRP DRILLED ROTOR, DRILLED & SLOTTED; CLPR:DYNAPRO LUG MOUNT, 4-PISTON, RED POWDER COAT Rear kit fits USDM models equipped with single piston rear calipers and 170mm parking brake shoes. Kit may fit some 15" wheels. Check wheel clearance diagram in kit installation instructions before purchase. |
| Subaru | Impreza | WRX | 2004 - 2005 | KIT,REAR,WRX,SUBARU,12.19 ROTOR DRILLED,RED; RTR:12.19-IN DIA, SRP DRILLED ROTOR, DRILLED & SLOTTED; CLPR:DYNAPRO LUG MOUNT, 4-PISTON, RED POWDER COAT Rear kit fits USDM models equipped with single piston rear calipers and 170mm parking brake shoes. Kit may fit some 15" wheels. Check wheel clearance diagram in kit installation instructions before purchase. Except STI Models |
| Details | |
| Part Type | Disc Brake Caliper / Rotor / Pad Kit |
| Kit Summary | |
| Axle Offset | 0.00 |
| Caliper Type | 4 - Red Powder Coat |
| Min Wheel Diameter Req'd* | 15 |
| Mount Type | Lug |
| Rear End Axle | OEM |
| Rotor Diameter | 12.19 |
| Kit Components & Specs / Rotors | |
| Bedded | No |
| Design Type | SRP-BLK |
| Dynamically Balanced | No |
| Left Hand - Part No | 160-6925-BK |
| Material | Iron |
| Outside Diameter (in) | 12.19 |
| Right Hand - Part No | 160-6924-BK |
| Style | SRP Drilled & Slotted |
| Surface Finish | Black Electro Coat |
| Type | SRP Drilled Rotor |
| Vane Count | 32 V |
| Width (in) | 0.81 |
| Parts & Accessories / Caliper Parts | |
| Bleed Screw Kit | 220-0627 |
| CrossOver O-Ring Kit | 130-10540 |
| O-ring Kit | 130-4320 |
| Pad Retainer | 300-9636 |
| Replacement Piston 1 | 200-12953 |
| Replacement Piston 2 | 200-12953 |
| Wear Plate - Left Hand | 300-5875 |
| Wear Plate - Right Hand | 300-5875 |

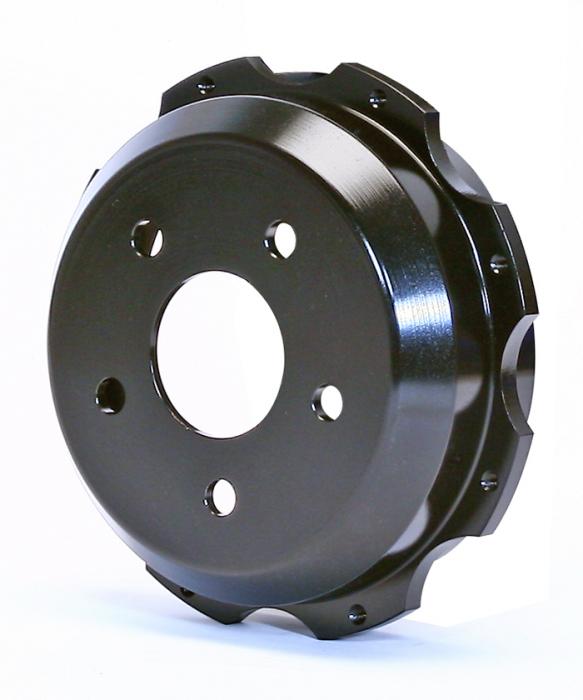

| Kit Components & Specs / Rotor Hats | |
| Bolt Circle 1 | 5 x 3.93 |
| Finish Color | Black E-Coat |
| Hat - Part No | 170-10108 |
| Hat Offset Dimension (in) | 1.640 |
| Material | Iron |
| Stud Diameter - BC 1 | 0.510 |
| Stud Diameter - BC 2 | 0.000 |
| Stud Diameter - BC 3 | 0.000 |
| Type | Parking Brake Hat - Standard |
| Parts & Accessories / Hat | |
| Bolt Kit | 230-7011 |
| Kit Components & Specs / Calipers | |
| Brake Pad Area (In²) | 6.36 |
| Brake Pad Plate | 7812 |
| Brake Pad Volume (In³) | 2.1 |
| Finish Color | Red Powder Coat |
| Left Hand - Part No | 120-9706-RD |
| Mount Type | Lug |
| Pad Compound | BP-10 |
| Piston 1 Bore (in) | 1.00 |
| Piston 2 Bore (in) | 1.00 |
| Piston Area (In²) | 1.58 |
| Piston Count | 4 |
| Piston Type | Stainless |
| Right Hand - Part No | 120-9706-RD |
| Type | Dynapro Lug Mount |
| Parts & Accessories / Brake Lines | |
| Front Line Kit | 220-7010 |
