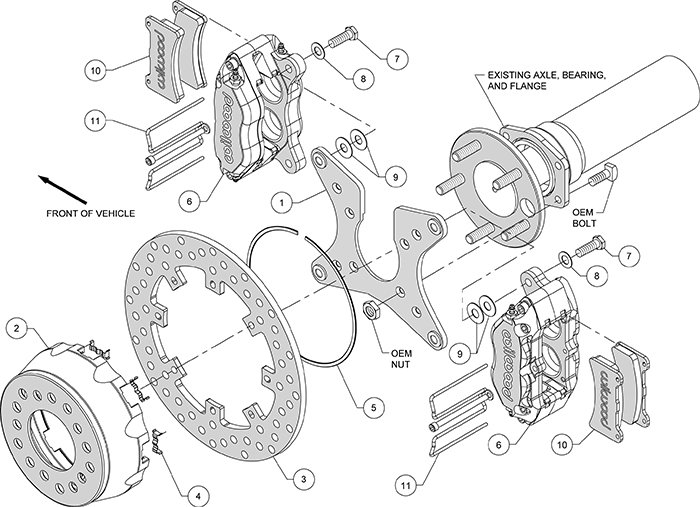

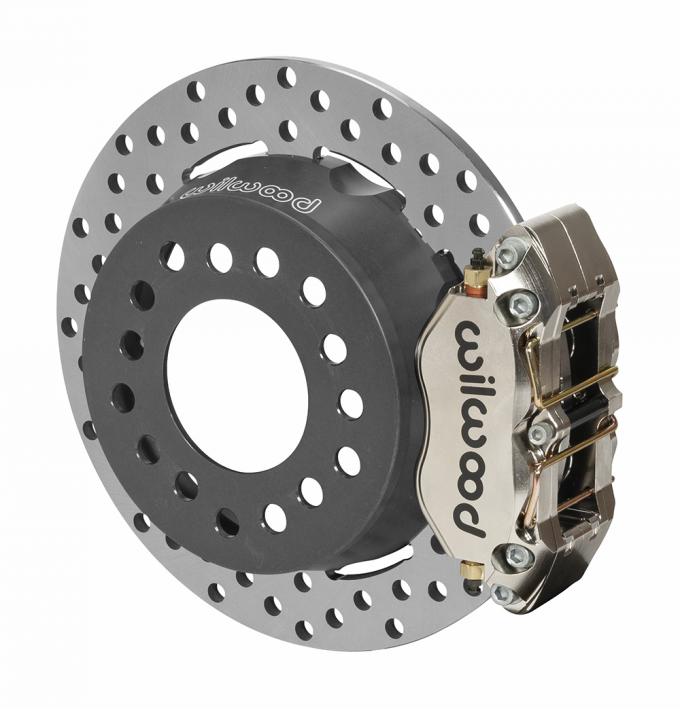

Wilwood's new Billet Dynapro Lug-Drive Dynamic Stainless Super Alloy Rotor Brake Kits are especially beneficial to cars that rely heavily on the rear brakes for stopping and any other high speed, heavy weight cars that generate above average rear brake heat. The lug-drive rotor mounting system eliminates the rotor bolts and instead, a large single internal snap-ring retains the rotor in the hat, making assembly and installation literally a snap. This system allows the rotors to move independently of the hats as they expand and contract through heat cycles. All thermally generated stress is removed from the rotor attachment points. The rotors stay flatter and run truer. Kits are available in two rotor diameters: A traditional 11.44” diameter and a smaller 11.25” diameter for clearance with bead lock rims. The hats are no longer distorted by stresses generated by thermal expansion and shrinkage of the rotors. Spring-loaded, replaceable stainless steel inserts in each lug-drive slot protect the aluminum hat from wear that would otherwise be caused by loading of the stainless steel rotor against the hat when brake torque is applied. Kits are available in Single and Dual caliper configurations.
Wilwood Engineering designs and manufactures high-performance disc brake systems. Since the company’s inception in 1977 by Bill Wood, we have developed a substantial matrix of brake components and engineering techniques that allow us to quickly and reliably create brake systems for almost any application. Our core ability is the rapid development of custom engineered brake systems using a combination of off-the-shelf and custom components. In addition to designing and manufacturing brakes for all types of competitive motor sports, Wilwood also manufactures brake systems and components for agricultural equipment, industrial applications, utility vehicles, snowmobiles, quads, motorcycles and military vehicles.
With headquarters in Camarillo, California, Wilwood employs approximately 250 people. We have on-shelf stock of more than 300 different brake calipers, 200 rotor designs, 100 master cylinder designs and a wide assortment of brackets, fittings, valves and brake lines. Our off-shelf brake calipers range in size from tiny calipers used on go-carts and light duty industrial equipment, to heavy duty original equipment brakes for the U.S. military Humvee.
Wilwood's engineering department uses the latest computer-aided design and manufacturing techniques in conjunction with finite element analysis, dynamic test and cycle test equipment, to find high-performance and reliability solutions for the most difficult braking tasks. Our extensive inventory of proprietary on-the-shelf components allow us to provide cost-effective solutions for unique brake applications.
Wilwood is ISO 9000 compliant and has extensive experience maintaining quality levels of 100ppm or less for original equipment manufacturers.
| Download Name | File Size |
| ds1165.pdf | 553.63KB |
| Kit Summary | |
| Axle Offset | 2.50 |
| Caliper Type | 8 - Nickel Plate |

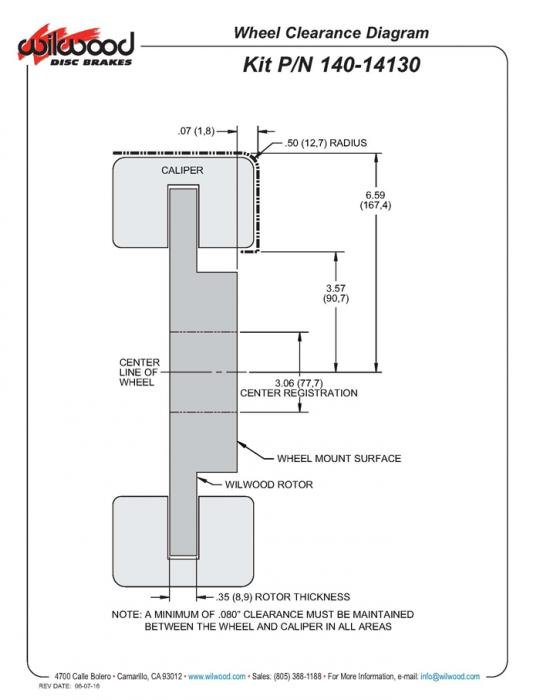

| Min Wheel Diameter Req'd* | 15 |
| Mount Type | Lug |
| Rear End Axle | Big Ford New Style |
| Rotor Diameter | 11.25 |
| Kit Components & Specs / Rotors | |
| Bedded | No |
| Design Type | Alloy Solid |
| Dynamically Balanced | No |
| Left Hand - Part No | 160-14155 |
| Material | Super Alloy |
| Outside Diameter (in) | 11.25 |
| Right Hand - Part No | 160-14155 |
| Style | Drilled |
| Surface Finish | Plain |
| Type | Drilled Super Alloy Rotor |
| Vane Count | Solid |
| Width (in) | 0.35 |
| Parts & Accessories / Caliper Parts | |
| Bleed Screw Kit | 220-0627 |
| Bridge Bolt Kit | 230-10117 |
| CrossOver O-Ring Kit | 130-10540 |
| O-ring Kit | 130-2658 |
| Pad Retainer | 300-9634 |
| Replacement Piston 1 | 200-7518 |
| Replacement Piston 2 | 200-7518 |
| Wear Plate - Left Hand | 300-5875 |
| Wear Plate - Right Hand | 300-5875 |
| Kit Components & Specs / Rotor Hats | |
| Bolt Circle 1 | 5 X 4.50 |
| Bolt Circle 2 | 5 X 4.75 |
| Bolt Circle 3 | 5 X 5.00 |
| Finish Color | Type III Anodize |
| Hat - Part No | 170-12544 |
| Hat Offset Dimension (in) | 1.640 |
| Material | Aluminum |
| Stud Diameter - BC 1 | 0.520 |
| Stud Diameter - BC 2 | 0.520 |
| Stud Diameter - BC 3 | 0.520 |
| Type | Dynamic Drag Hat - Lug Drive |
| Parts & Accessories / Hat | |
| Bolt Kit | 300-12561 |
| Kit Components & Specs / Calipers | |
| Brake Pad Area (In²) | 6.36 |
| Brake Pad Plate | 7812 |
| Brake Pad Volume (In³) | 2.1 |
| Finish Color | Nickel Plate |
| Left Hand - Part No | 120-14182-N |
| Mount Type | Lug |
| Pad Compound | CM - Composite Metallic |
| Piston 1 Bore (in) | 1.38 |
| Piston 2 Bore (in) | 1.38 |
| Piston Area (In²) | 3.00 |
| Piston Count | 4 |
| Piston Type | Stainless |
| Right Hand - Part No | 120-14182-N |
| Type | Dynapro Lug Mount |
