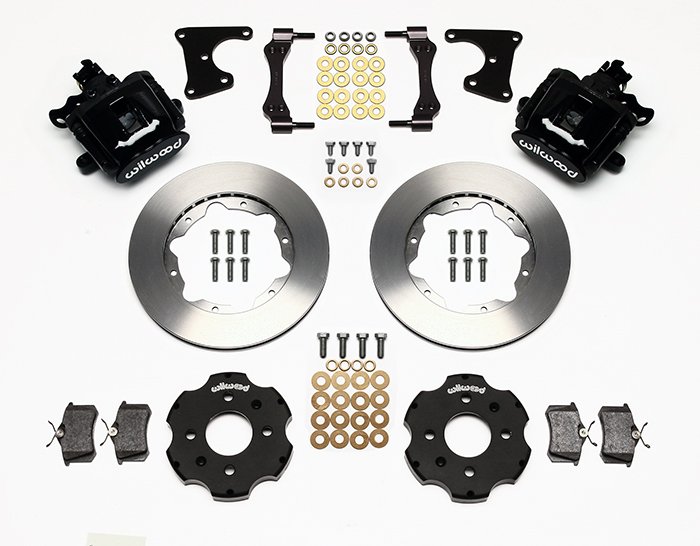

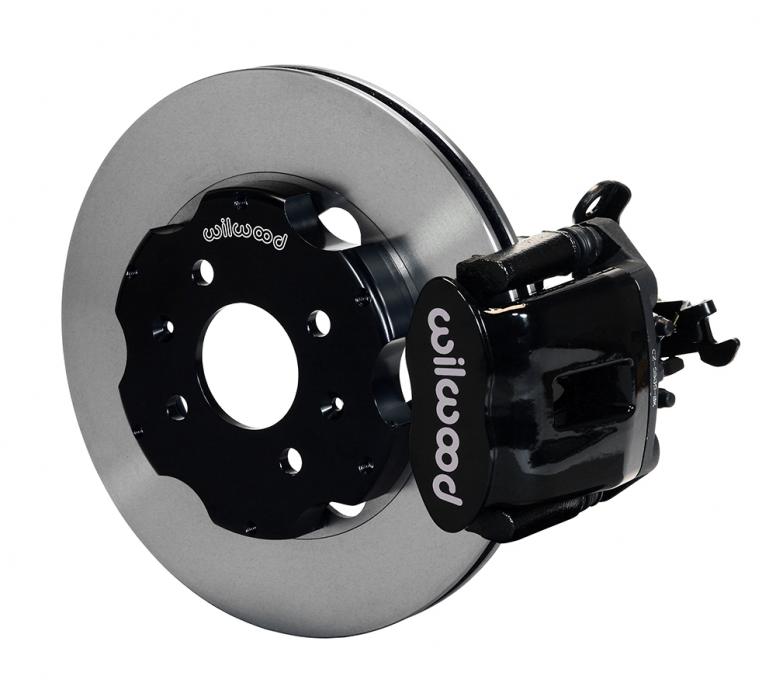

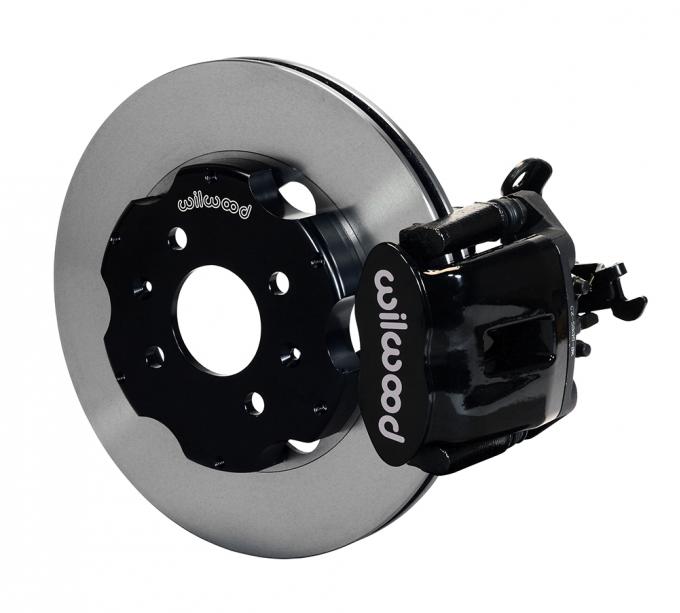

Combination hydro-mechanical Parking Brake calipers use hydraulic pressure from the master cylinder for stopping power, and an internal mechanical lock within the caliper for a parking brake. CPB kits are built primarily for front wheel drive vehicles, and select rear wheel drive axles that are not well suited for internal shoe style parking brakes. The calipers are coupled with oversized two-piece rotor assemblies with aluminum hats and high friction BP-10 compound pads. CPB kits provide the correct balanced brake performance and matching style to compliment front big brake upgrade kits.
Wilwood Engineering designs and manufactures high-performance disc brake systems. Since the company’s inception in 1977 by Bill Wood, we have developed a substantial matrix of brake components and engineering techniques that allow us to quickly and reliably create brake systems for almost any application. Our core ability is the rapid development of custom engineered brake systems using a combination of off-the-shelf and custom components. In addition to designing and manufacturing brakes for all types of competitive motor sports, Wilwood also manufactures brake systems and components for agricultural equipment, industrial applications, utility vehicles, snowmobiles, quads, motorcycles and military vehicles.
With headquarters in Camarillo, California, Wilwood employs approximately 250 people. We have on-shelf stock of more than 300 different brake calipers, 200 rotor designs, 100 master cylinder designs and a wide assortment of brackets, fittings, valves and brake lines. Our off-shelf brake calipers range in size from tiny calipers used on go-carts and light duty industrial equipment, to heavy duty original equipment brakes for the U.S. military Humvee.
Wilwood's engineering department uses the latest computer-aided design and manufacturing techniques in conjunction with finite element analysis, dynamic test and cycle test equipment, to find high-performance and reliability solutions for the most difficult braking tasks. Our extensive inventory of proprietary on-the-shelf components allow us to provide cost-effective solutions for unique brake applications.
Wilwood is ISO 9000 compliant and has extensive experience maintaining quality levels of 100ppm or less for original equipment manufacturers.
| Download Name | File Size |
| ds601.pdf | 448.47KB |
| Make | Model | Submodel | Years | Fitment Notes |
| Honda | CRX | HF | 1988 - 1991 | KIT,REAR,CPB,CIVIC,DRUM,2.71 HUB OFFSET 11.00 ROTOR; RTR:11.00-IN DIA, ULTRALITE HP 30, UNDRILLED; CLPR:COMBINATION PARKING BRAKE, 1-PISTON, BLACK POWDER COAT For applications with original drum brakes and 2.71 hub offset. (180 x 30mm Drum) |
| Honda | CRX | 1988 - 1989 | KIT,REAR,CPB,CIVIC,DRUM,2.71 HUB OFFSET 11.00 ROTOR; RTR:11.00-IN DIA, ULTRALITE HP 30, UNDRILLED; CLPR:COMBINATION PARKING BRAKE, 1-PISTON, BLACK POWDER COAT For applications with original drum brakes and 2.71 hub offset. (180 x 30mm Drum) DX & SI Models |
|
| Honda | CRX | 1990 - 1991 | KIT,REAR,CPB,CIVIC,DRUM,2.71 HUB OFFSET 11.00 ROTOR; RTR:11.00-IN DIA, ULTRALITE HP 30, UNDRILLED; CLPR:COMBINATION PARKING BRAKE, 1-PISTON, BLACK POWDER COAT For applications with original drum brakes and 2.71 hub offset. (180 x 30mm Drum) DX Models |
|
| Honda | Civic del Sol | 1993 - 1997 | KIT,REAR,CPB,CIVIC,DRUM,2.71 HUB OFFSET 11.00 ROTOR; RTR:11.00-IN DIA, ULTRALITE HP 30, UNDRILLED; CLPR:COMBINATION PARKING BRAKE, 1-PISTON, BLACK POWDER COAT For applications with original drum brakes and 2.71 hub offset. (180 x 30mm Drum) |
|
| Honda | Civic | Base | 1988 - 1991 | KIT,REAR,CPB,CIVIC,DRUM,2.71 HUB OFFSET 11.00 ROTOR; RTR:11.00-IN DIA, ULTRALITE HP 30, UNDRILLED; CLPR:COMBINATION PARKING BRAKE, 1-PISTON, BLACK POWDER COAT For applications with original drum brakes and 2.71 hub offset. (180 x 30mm Drum) Base Hatchback Models |
| Honda | Civic | EX | 1990 - 1995 | KIT,REAR,CPB,CIVIC,DRUM,2.71 HUB OFFSET 11.00 ROTOR; RTR:11.00-IN DIA, ULTRALITE HP 30, UNDRILLED; CLPR:COMBINATION PARKING BRAKE, 1-PISTON, BLACK POWDER COAT For applications with original drum brakes and 2.71 hub offset. (180 x 30mm Drum) |
| Honda | Civic | Si | 1989 - 1991 | KIT,REAR,CPB,CIVIC,DRUM,2.71 HUB OFFSET 11.00 ROTOR; RTR:11.00-IN DIA, ULTRALITE HP 30, UNDRILLED; CLPR:COMBINATION PARKING BRAKE, 1-PISTON, BLACK POWDER COAT For applications with original drum brakes and 2.71 hub offset. (180 x 30mm Drum) Si Hatchback Models |
| Honda | Civic | 1988 | KIT,REAR,CPB,CIVIC,DRUM,2.71 HUB OFFSET 11.00 ROTOR; RTR:11.00-IN DIA, ULTRALITE HP 30, UNDRILLED; CLPR:COMBINATION PARKING BRAKE, 1-PISTON, BLACK POWDER COAT For applications with original drum brakes and 2.71 hub offset. (180 x 30mm Drum) |
|
| Honda | Civic | 1993 | KIT,REAR,CPB,CIVIC,DRUM,2.71 HUB OFFSET 11.00 ROTOR; RTR:11.00-IN DIA, ULTRALITE HP 30, UNDRILLED; CLPR:COMBINATION PARKING BRAKE, 1-PISTON, BLACK POWDER COAT For applications with original drum brakes and 2.71 hub offset. (180 x 30mm Drum) DX/LX Models Hatchback Standard Transmission Models, Excludes Si Models Coupe DX Models |
|
| Honda | Civic | 1992 | KIT,REAR,CPB,CIVIC,DRUM,2.71 HUB OFFSET 11.00 ROTOR; RTR:11.00-IN DIA, ULTRALITE HP 30, UNDRILLED; CLPR:COMBINATION PARKING BRAKE, 1-PISTON, BLACK POWDER COAT For applications with original drum brakes and 2.71 hub offset. (180 x 30mm Drum) Hatchback Standard Transmission Models, Excludes Si Models DX/LX Models |
|
| Honda | Civic | 1994 | KIT,REAR,CPB,CIVIC,DRUM,2.71 HUB OFFSET 11.00 ROTOR; RTR:11.00-IN DIA, ULTRALITE HP 30, UNDRILLED; CLPR:COMBINATION PARKING BRAKE, 1-PISTON, BLACK POWDER COAT For applications with original drum brakes and 2.71 hub offset. (180 x 30mm Drum) LX Models DX Models Hatchback Standard Transmission Models, Excludes Si Models Coupe DX Models |
|
| Honda | Civic | 1995 | KIT,REAR,CPB,CIVIC,DRUM,2.71 HUB OFFSET 11.00 ROTOR; RTR:11.00-IN DIA, ULTRALITE HP 30, UNDRILLED; CLPR:COMBINATION PARKING BRAKE, 1-PISTON, BLACK POWDER COAT For applications with original drum brakes and 2.71 hub offset. (180 x 30mm Drum) LX Models DX Models Hatchback Standard Transmission Models, Excludes Si Models Hatchback Automatic Models, Excludes Si Models Coupe DX Models |
|
| Honda | Civic | 1989 - 1991 | KIT,REAR,CPB,CIVIC,DRUM,2.71 HUB OFFSET 11.00 ROTOR; RTR:11.00-IN DIA, ULTRALITE HP 30, UNDRILLED; CLPR:COMBINATION PARKING BRAKE, 1-PISTON, BLACK POWDER COAT For applications with original drum brakes and 2.71 hub offset. (180 x 30mm Drum) Sedan DX/LX Models HB DX Models |
| Details | |
| Part Type | Disc Brake Caliper / Rotor / Pad Kit |
| Kit Summary | |
| Axle Offset | 2.71 |
| Caliper Type | 1 - Black Powder Coat |
| Min Wheel Diameter Req'd* | 15 |
| Mount Type | Radial |
| Rear End Axle | OEM |
| Rotor Diameter | 11.00 |
| Kit Components & Specs / Rotors | |
| Bedded | No |
| Design Type | ULHP |
| Dynamically Balanced | No |
| Left Hand - Part No | 160-5840 |
| Material | Iron |
| Outside Diameter (in) | 11.00 |
| Right Hand - Part No | 160-5840 |
| Style | Plain Face |
| Surface Finish | Plain |
| Type | Ultralite HP 30 |
| Vane Count | 30 V |
| Width (in) | 0.81 |
| Kit Components & Specs / Rotor Hats | |
| Bolt Circle 1 | 4 x 3.93 |
| Finish Color | Black E-Coat |
| Hat - Part No | 170-10199 |
| Hat Offset Dimension (in) | 0.750 |
| Material | Aluminum |
| Stud Diameter - BC 1 | 0.500 |
| Stud Diameter - BC 2 | 0.000 |
| Stud Diameter - BC 3 | 0.000 |
| Type | Big Brake Hat - Short Offset |
| Parts & Accessories / Hat | |
| Bolt Kit | 230-12176 |
| Kit Components & Specs / Calipers | |
| Brake Pad Area (In²) | 4 |
| Brake Pad Plate | D340 |
| Brake Pad Volume (In³) | 1.5 |
| Finish Color | Black Powder Coat |
| Left Hand - Part No | 120-9809-BK |
| Mount Type | Radial |
| Pad Compound | BP-10 |
| Piston 1 Bore (in) | 1.34 |
| Piston Area (In²) | 1.38 |
| Piston Count | 1 |
| Piston Type | Steel |
| Right Hand - Part No | 120-9808-BK |
| Type | Combination Parking Brake |
| Parts & Accessories / Brake Lines | |
| Front Line Kit | 220-10840 |
| Parking Brake Cable | 330-10966 330-10993 |
| Parts & Accessories / Caliper Parts | |
| O-ring Kit | Call |
| Replacement Piston 1 | Call |
