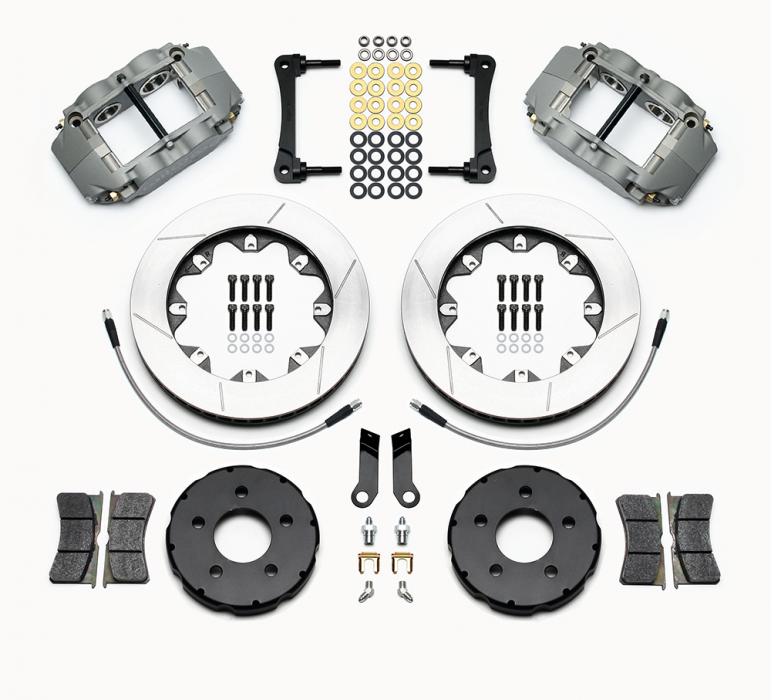

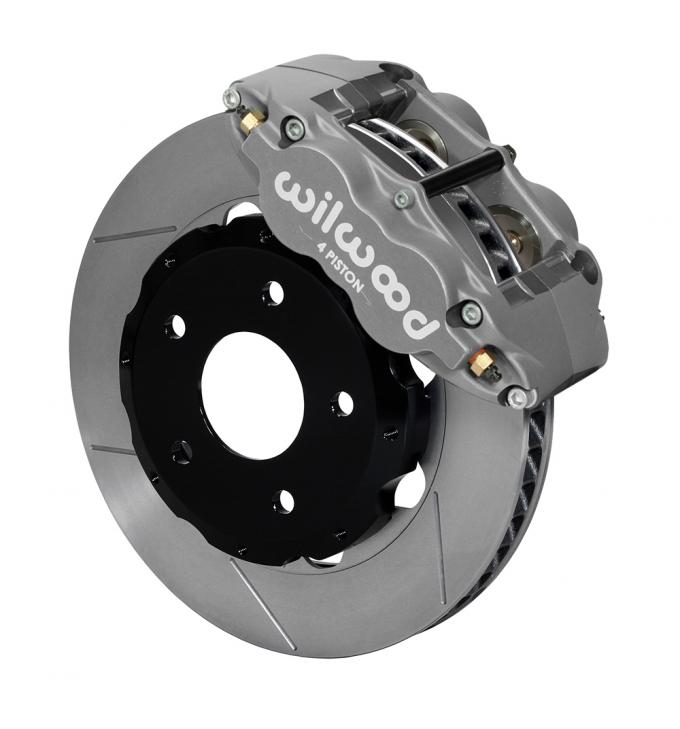

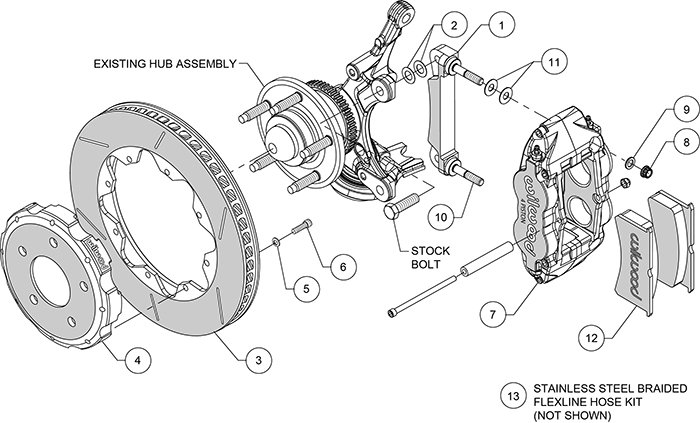

This kit is configured for dedicated road racing on all models of the 2005-2014 Mustang. The four piston FSL4R/ST calipers used in this kit feature a forged aluminum body with a Type III Mil-Spec hard anodized, medium gray color finish. Hard anodizing provides superior wear resistance in the piston bores, and high resistance to abrasion and corrosion throughout. Thermlock® pistons are used to reduce heat transfer from the pads to increase fade resistance, and to extend service life by decreasing temperatures in the caliper body, fluid, and seals. Internal damper springs and controlled retraction, high-temperature piston seals assure consistent pedal height from start to finish. Caliper piston volumes are matched for full compatibility with the OE power brake booster and master cylinder, and are easily configured with manual brake conversions and balance bar pedals using appropriately sized master cylinders. Spec37 alloy GT competition series 12.19” diameter directional vane rotors provide high cooling efficiency with rugged durability and thermal stability in sustained high heat competition. Unsprung and rotating weight are minimized by using forged aluminum rotor mounting hats for mounting on the factory hubs. Mounting brackets, including all premium grade fasteners, secure the calipers in the stock location, with some modification of the spindle for bracket clearance. Details of the required modifications are illustrated on page 4 of assembly instructions. This championship proven system is completed with high temperature, high friction, endurance race compound pads selected specifically by application. Stainless steel braided flexlines are included in each kit to complete the installation.
Wilwood Engineering designs and manufactures high-performance disc brake systems. Since the company’s inception in 1977 by Bill Wood, we have developed a substantial matrix of brake components and engineering techniques that allow us to quickly and reliably create brake systems for almost any application. Our core ability is the rapid development of custom engineered brake systems using a combination of off-the-shelf and custom components. In addition to designing and manufacturing brakes for all types of competitive motor sports, Wilwood also manufactures brake systems and components for agricultural equipment, industrial applications, utility vehicles, snowmobiles, quads, motorcycles and military vehicles.
With headquarters in Camarillo, California, Wilwood employs approximately 250 people. We have on-shelf stock of more than 300 different brake calipers, 200 rotor designs, 100 master cylinder designs and a wide assortment of brackets, fittings, valves and brake lines. Our off-shelf brake calipers range in size from tiny calipers used on go-carts and light duty industrial equipment, to heavy duty original equipment brakes for the U.S. military Humvee.
Wilwood's engineering department uses the latest computer-aided design and manufacturing techniques in conjunction with finite element analysis, dynamic test and cycle test equipment, to find high-performance and reliability solutions for the most difficult braking tasks. Our extensive inventory of proprietary on-the-shelf components allow us to provide cost-effective solutions for unique brake applications.
Wilwood is ISO 9000 compliant and has extensive experience maintaining quality levels of 100ppm or less for original equipment manufacturers.
| Download Name | File Size |
| ds901.pdf | 396.81KB |
| Make | Model | Submodel | Years | Fitment Notes |

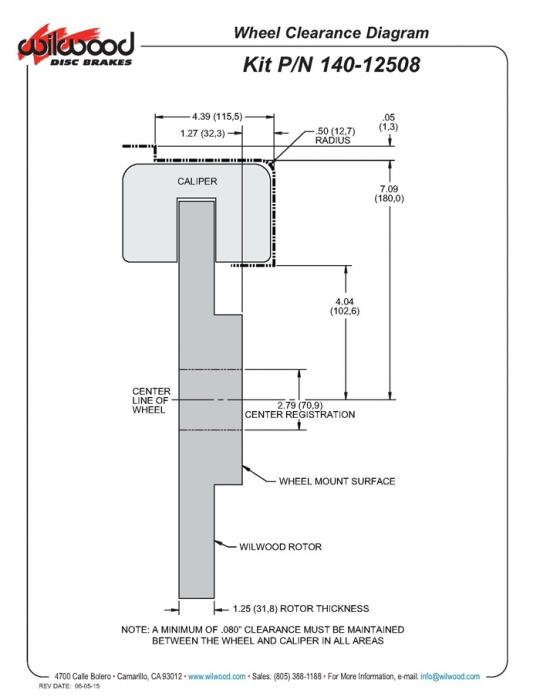

| Ford | Mustang | Base | 2014 | KIT,FRONT,MUSTANG 05-UP,ROAD RACE,12.19 ROTOR; RTR:12.19-IN DIA, GT 48 CURVED VANE, SLOTTED; CLPR:FORGED SUPERLITE 4R, 4-PISTON, TYPE III ANO Road Race kits contain high temperature racing pads. Extended low temperature use will cause premature rotor and pad wear. Kit may fit some 15" wheels. Check wheel clearance diagram in kit installation instructions before purchase. |
| Ford | Mustang | Base | 2005 - 2013 | KIT,FRONT,MUSTANG 05-UP,ROAD RACE,12.19 ROTOR; RTR:12.19-IN DIA, GT 48 CURVED VANE, SLOTTED; CLPR:FORGED SUPERLITE 4R, 4-PISTON, TYPE III ANO Road Race kits contain high temperature racing pads. Extended low temperature use will cause premature rotor and pad wear. Kit may fit some 15" wheels. Check wheel clearance diagram in kit installation instructions before purchase. Flexline kit 220-9248 used with Internal Drum P-brake Kit, Flexline kit 220-10417 used with CPB Kit. |
| Ford | Mustang | Boss 302 | 2012 - 2013 | KIT,FRONT,MUSTANG 05-UP,ROAD RACE,12.19 ROTOR; RTR:12.19-IN DIA, GT 48 CURVED VANE, SLOTTED; CLPR:FORGED SUPERLITE 4R, 4-PISTON, TYPE III ANO Road Race kits contain high temperature racing pads. Extended low temperature use will cause premature rotor and pad wear. Kit may fit some 15" wheels. Check wheel clearance diagram in kit installation instructions before purchase. Flexline kit 220-9248 used with Internal Drum P-brake Kit, Flexline kit 220-10417 used with CPB Kit. |
| Ford | Mustang | Bullitt | 2008 | KIT,FRONT,MUSTANG 05-UP,ROAD RACE,12.19 ROTOR; RTR:12.19-IN DIA, GT 48 CURVED VANE, SLOTTED; CLPR:FORGED SUPERLITE 4R, 4-PISTON, TYPE III ANO Road Race kits contain high temperature racing pads. Extended low temperature use will cause premature rotor and pad wear. Kit may fit some 15" wheels. Check wheel clearance diagram in kit installation instructions before purchase. Flexline kit 220-9248 used with Internal Drum P-brake Kit, Flexline kit 220-10417 used with CPB Kit. |
| Ford | Mustang | GT | 2005 - 2013 | KIT,FRONT,MUSTANG 05-UP,ROAD RACE,12.19 ROTOR; RTR:12.19-IN DIA, GT 48 CURVED VANE, SLOTTED; CLPR:FORGED SUPERLITE 4R, 4-PISTON, TYPE III ANO Road Race kits contain high temperature racing pads. Extended low temperature use will cause premature rotor and pad wear. Kit may fit some 15" wheels. Check wheel clearance diagram in kit installation instructions before purchase. Flexline kit 220-9248 used with Internal Drum P-brake Kit, Flexline kit 220-10417 used with CPB Kit. |
| Ford | Mustang | GT | 2011 - 2012 | KIT,FRONT,MUSTANG 05-UP,ROAD RACE,12.19 ROTOR; RTR:12.19-IN DIA, GT 48 CURVED VANE, SLOTTED; CLPR:FORGED SUPERLITE 4R, 4-PISTON, TYPE III ANO Road Race kits contain high temperature racing pads. Extended low temperature use will cause premature rotor and pad wear. Kit may fit some 15" wheels. Check wheel clearance diagram in kit installation instructions before purchase. Flexline kit 220-9248 used with Internal Drum P-brake Kit, Flexline kit 220-10417 used with CPB Kit. Except Performance Brakes With Performance Brakes |
| Ford | Mustang | GT | 2014 | KIT,FRONT,MUSTANG 05-UP,ROAD RACE,12.19 ROTOR; RTR:12.19-IN DIA, GT 48 CURVED VANE, SLOTTED; CLPR:FORGED SUPERLITE 4R, 4-PISTON, TYPE III ANO Road Race kits contain high temperature racing pads. Extended low temperature use will cause premature rotor and pad wear. Kit may fit some 15" wheels. Check wheel clearance diagram in kit installation instructions before purchase. with Brembo Brakes Except with Brembo Brakes |
| Ford | Mustang | Shelby GT500 | 2013 - 2014 | KIT,FRONT,MUSTANG 05-UP,ROAD RACE,12.19 ROTOR; RTR:12.19-IN DIA, GT 48 CURVED VANE, SLOTTED; CLPR:FORGED SUPERLITE 4R, 4-PISTON, TYPE III ANO Road Race kits contain high temperature racing pads. Extended low temperature use will cause premature rotor and pad wear. Kit may fit some 15" wheels. Check wheel clearance diagram in kit installation instructions before purchase. |
| Ford | Mustang | Shelby GT500 | 2007 - 2012 | KIT,FRONT,MUSTANG 05-UP,ROAD RACE,12.19 ROTOR; RTR:12.19-IN DIA, GT 48 CURVED VANE, SLOTTED; CLPR:FORGED SUPERLITE 4R, 4-PISTON, TYPE III ANO Road Race kits contain high temperature racing pads. Extended low temperature use will cause premature rotor and pad wear. Kit may fit some 15" wheels. Check wheel clearance diagram in kit installation instructions before purchase. Flexline kit 220-9248 used with Internal Drum P-brake Kit, Flexline kit 220-10417 used with CPB Kit. |
| Ford | Mustang | Shelby | 2014 | KIT,FRONT,MUSTANG 05-UP,ROAD RACE,12.19 ROTOR; RTR:12.19-IN DIA, GT 48 CURVED VANE, SLOTTED; CLPR:FORGED SUPERLITE 4R, 4-PISTON, TYPE III ANO Road Race kits contain high temperature racing pads. Extended low temperature use will cause premature rotor and pad wear. Kit may fit some 15" wheels. Check wheel clearance diagram in kit installation instructions before purchase. |
| Ford | Mustang | 2007 - 2009 | KIT,FRONT,MUSTANG 05-UP,ROAD RACE,12.19 ROTOR; RTR:12.19-IN DIA, GT 48 CURVED VANE, SLOTTED; CLPR:FORGED SUPERLITE 4R, 4-PISTON, TYPE III ANO Road Race kits contain high temperature racing pads. Extended low temperature use will cause premature rotor and pad wear. Kit may fit some 15" wheels. Check wheel clearance diagram in kit installation instructions before purchase. Flexline kit 220-9248 used with Internal Drum P-brake Kit, Flexline kit 220-10417 used with CPB Kit. Except Shelby GT500 Models |
|
| Ford | Mustang | 2008 | KIT,FRONT,MUSTANG 05-UP,ROAD RACE,12.19 ROTOR; RTR:12.19-IN DIA, GT 48 CURVED VANE, SLOTTED; CLPR:FORGED SUPERLITE 4R, 4-PISTON, TYPE III ANO Road Race kits contain high temperature racing pads. Extended low temperature use will cause premature rotor and pad wear. Kit may fit some 15" wheels. Check wheel clearance diagram in kit installation instructions before purchase. Flexline kit 220-9248 used with Internal Drum P-brake Kit, Flexline kit 220-10417 used with CPB Kit. Except Shelby GT500 and Bullit Models |
| Details | |
| Part Type | Disc Brake Caliper / Rotor / Pad Kit |
| Kit Components & Specs / Rotors | |
| Bedded | No |
| Design Type | GT |
| Dynamically Balanced | Yes |
| Left Hand - Part No | 160-11840 |
| Material | Spec-37 Iron |
| Outside Diameter (in) | 12.19 |
| Right Hand - Part No | 160-11839 |
| Style | GT Slotted |
| Surface Finish | Plain |
| Type | GT 48 Curved Vane |
| Vane Count | 48 CV |
| Width (in) | 1.25 |
| Parts & Accessories / Caliper Parts | |
| Bleed Screw Kit | 220-0627 |
| Bridge Bolt Kit | 230-5978 |
| CrossOver O-Ring Kit | 130-10540 |
| O-ring Kit | 130-5100 |
| Replacement Piston 1 | 200-7550 |
| Replacement Piston 2 | 200-7553 |
| Wear Plate - Left Hand | 300-5923 |
| Wear Plate - Right Hand | 300-5922 |
| Kit Components & Specs / Rotor Hats | |
| Bolt Circle 1 | 5 X 4.50 |
| Finish Color | Black E-Coat |
| Hat - Part No | 170-10040 |
| Hat Offset Dimension (in) | 0.790 |
| Material | Aluminum |
| Stud Diameter - BC 1 | 0.580 |
| Stud Diameter - BC 2 | 0.000 |
| Stud Diameter - BC 3 | 0.000 |
| Type | Drag Hat - Shallow Offset |
| Parts & Accessories / Hat | |
| Bolt Kit | 230-8390 |
| Kit Components & Specs / Calipers | |
| Brake Pad Area (In²) | 8.2 |
| Brake Pad Plate | 7420 |
| Brake Pad Volume (In³) | 4.9 |
| Finish Color | Type III Ano |
| Left Hand - Part No | 120-13266 |
| Mount Type | Radial |
| Pad Compound | BP-30 |
| Piston 1 Bore (in) | 1.88 |
| Piston 2 Bore (in) | 1.62 |
| Piston Area (In²) | 4.84 |
| Piston Count | 4 |
| Piston Type | Thermlock |
| Right Hand - Part No | 120-13265 |
| Type | Forged Superlite 4R |
| Caliper Type | 4 - Type III Ano |
| Min Wheel Diameter Req'd* | 15 |
| Mount Type | Radial |
| Rotor Diameter | 12.19 |
| Spindle Type | Factory Disc Spindle |
| Parts & Accessories / Brake Lines | |
| Front Line Kit | 220-9111 |
