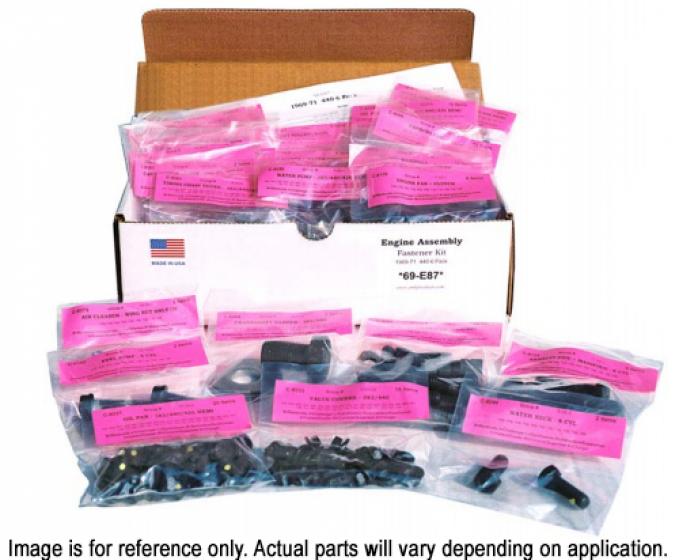

The authentic hardware you need to correctly reassemble the engine components which attach to the long-block. Most fasteners are either meticulous reproductions or New Old Stock. Most items are made in USA to the same standards required by Chrysler.
| Part# | Application | Notes | Pcs |
|---|---|---|---|
| C-8027 | Differential Carrier Cover - 9 3/4 | 3/8" HX Flng Bolts "E" | 10 |
| C-8084 | Engine Insulator > Eng Brkt - exc HEMI | HX Nuts, Coni Wa's | 4 |
| C-8086 | Engine Mount Brackets - 383/440 | HX Bolts, 5/8 AD Nuts, Flat Wa's | 19 |
| C-8088 | Engine Insulator > Body - V8 exc HEMI | HX Bolts "38", Coni Wa's | 4 |
| C-8094 | Trans > INsulator > Trans | HX Coni Sems, Sqr Wa's | 4 |
| C-8104 | Wheel Cylinders (2) w 1/4-20 | HX Flng Screws | 4 |
| C-8105 | Strut Rod > K-Frame | 5/8-11 Lock Nuts | 4 |
| C-8106 | Driveshaft > Flange | Straps, HX Bolts, Split Wa's | 10 |
| C-8110 | Shocks (Fr) - Lwr Mounting | 7/16 HX Bolts "TR" or "D", Lock Nut | 4 |
| C-8111 | Stabilizer Bar Center Supports | HX Bolts "H", Coni Sems, Lock Nuts | 16 |
| C-8112 | Leaf Spring Mounting @ Front | Hub Bolts, Coni Keps | 16 |
| C-8113 | Shackles - Nuts Only | HX Nuts | 4 |
| C-8115 | Axle Housing > Springs | 1/2-20 x 7.12 U-Bolts, Lock Nuts | 12 |
| C-8117 | Suspension Bumpers Brkt > 8 3/4 Axle | HX Coni Sems "Anchor" | 2 |
| C-8120 | Shocks (Rr) - Upr Mounting | HX Nuts Only | 2 |
| C-8121 | Brake Calipers > Spindle | HX Coni Sems | 4 |
| C-8122 | Brake Rotor Shields | HX Coni Sems | 6 |
| C-8123 | Shocks (Rr) - Upr Mounting | HX Bolts, Lock Nuts | 4 |
| C-8124 | Steering Gear | HI-HX Bolts, Split Wa's | 6 |
| C-8125 | Brake CAliper Tube Brackets | HX Coni Sems | 4 |
| C-8131 | Gas Tank | J-Bolts, Lock NUts | 4 |
| C-8133 | Differential Carrier - 8 3/4 | Nuts w/ Nylon Patch | 10 |
| C-8157 | Suspension Bumper Brkt > 9 3/4 Axle | HX Coni Sems "Anchor" | 3 |
| C-8176 | Suspension Bumpers (Fr) | Cone Lock Nuts | 4 |
| C-8177 | Brake Drum Retainers | 1/2" Stud, Green Push On Retain | 6 |
| C-8178 | Steering Linkage | Tri-slot Nuts, Cotter Pins | 12 |
| C-8200 | Trans Crossmember | Flng Bolts, Flng Nuts | 8 |
| C-8202 | Brake Cable Tension Adjuster | Flange Lock Nut Only | 1 |
| C-8203 | Proportioning Valve> Apron | Red Flange Lock Nut | 1 |
| C-8212 | Control Arms (Upr) | Cam Bolts, Washers, Nuts | 4 |
| C-8214 | Leak Spring Mounting @ Front | "H" Marked Bolts, Marsden Nut | 4 |
| C-8215 | Idler Arm | "TR" Hex Bolt, Tri-slot Nut, Pin | 3 |
| C-8216 | K-Frame > Body | Special Hex Coni Sems | 4 |
| C-8222 | Axle Retaining Nuts | HX Lock, Nuts, Flng Nuts | 10 |
| C-8224 | Ball Joint w/ Disc Brakes | HX Bolts, Slotted Nuts, Pins | 12 |
| C-8226 | Pitman Arm | Nut, Split Wa | 2 |
| C-8228 | Brake Hoses > Bracket Clips | U-Clips | 3 |
| C-8330 | Parking Brake Control > Body | HX Coni Sems, Coni Keps | 3 |
| C-8332 | Master Cylinder | HX Luck Nuts | 4 |
| C-8334 | Master Cylinder Support Plate | Coni Keps, Ext Keps, Sealer | 5 |
| C-8336 | Brake Booster | Hx Lock Nuts | 4 |
| C-8338 | Accelerator Pedal | Coni Keps, Coni Sems | 6 |
| C-8339 | Trans Insulator > Crossmember | HX Bolt, Flat Wa, Lock Nut | 3 |
| C-8440 | Suspension Bumpers (Rr) | HX Flng Screws | 4 |
| Make | Model | Years |
| Dodge | Challenger | 1971 - 1972 |
| Dodge | Charger | 1971 - 1972 |
| Plymouth | Barracuda | 1971 - 1972 |
| Plymouth | GTX | 1971 |
| Plymouth | Road Runner | 1971 - 1972 |
| Plymouth | Satellite | 1971 - 1972 |
